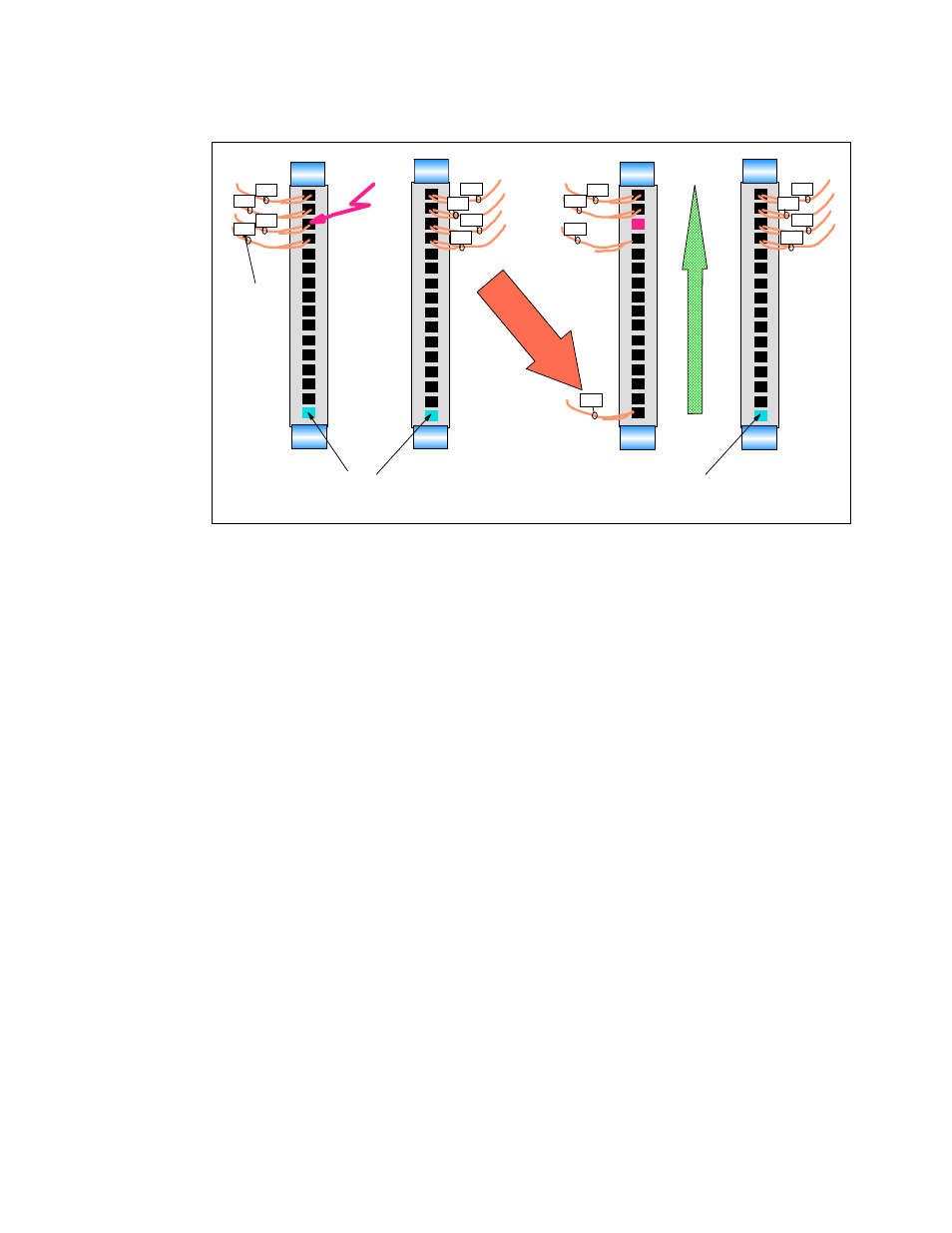

Figure 3-11 16-port ESCON channel sparing
Channel port sparing can only occur between ports on the same 16-port ESCON card, that is,
a failing ESCON channel port cannot be spared with another port on a different 16-port
ESCON card.
Channel sparing is a service repair action performed by an IBM service representative (SR)
using the z990 server maintenance package Repair and Verify procedure. If sparing can take
place, the IBM SR moves the external fiber optic cable from the failing port to the spare port.
When sparing occurs, the PCHID moves to the spare port (PCHID 112 in Figure 3-11). If
sparing cannot be performed, the 16-port ESCON card is replaced.
Fiber Quick Connect (FQC) for ESCON “Quick Connect”
The Fiber Quick Connect (FQC) features are optional features for factory installation of the
IBM Fiber Transport System (FTS) fiber harnesses for connection to ESCON channels in the
I/O cage. Each direct-attach fiber harness connects to six ESCON channels at one end and
one coupler in a Multi-Terminated Push-On Connector (MTP) coupler bracket at the opposite
end. When ordered, the features support all of the installed ESCON features in all of the
installed I/O cages. FQC cannot be ordered on a partial or one cage basis.
FQC supports all of the ESCON channels in the I/O cage. FQC cannot be ordered for
selected channels.
