Page 74
SECTION 12—ELECTRONICS
Pronto® M51™and M61™with SureStep®
74

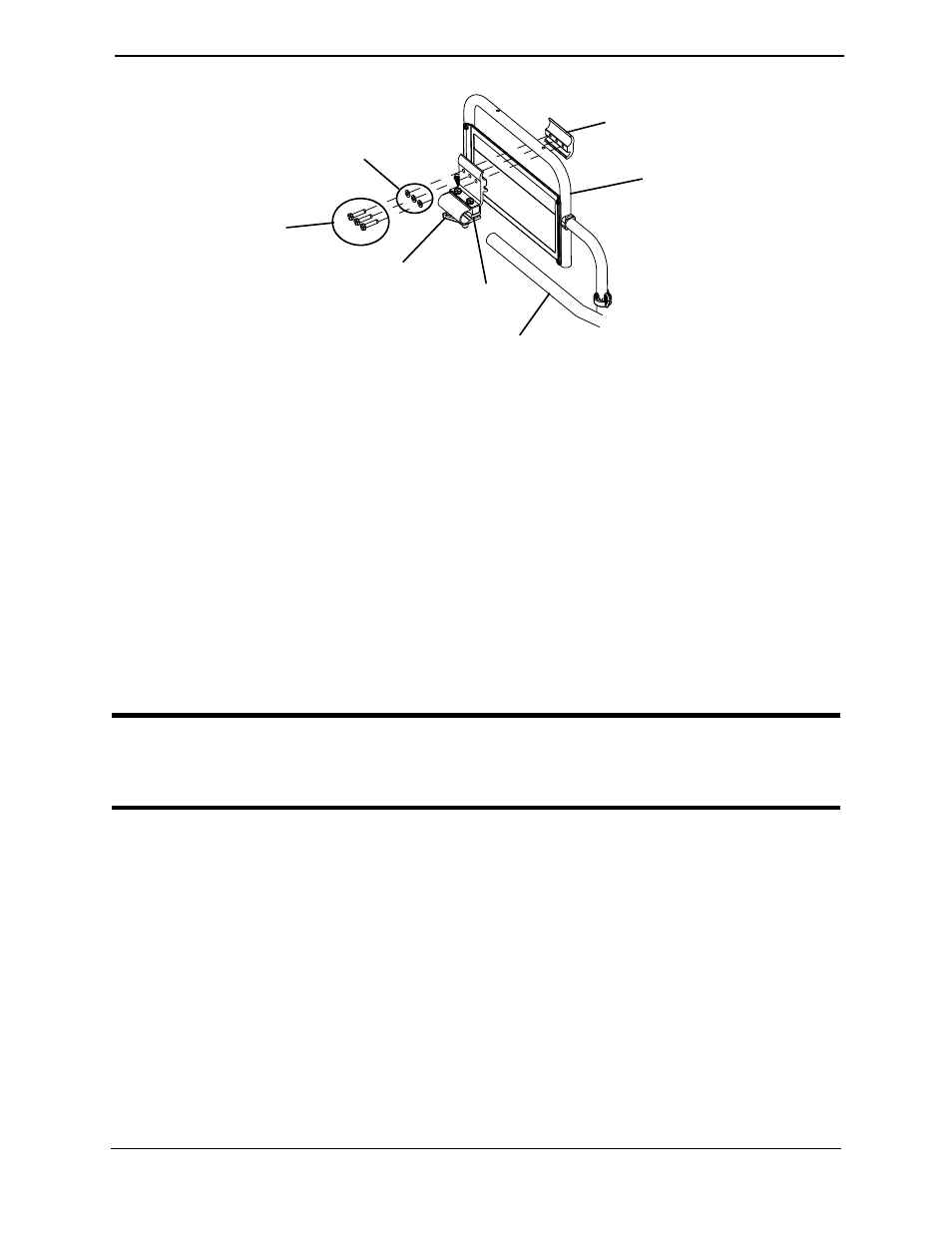

FIGURE 12.3 Repositioning the Joystick - ASBA Seat
Disconnecting/Connecting the Joystick
NOTE: For this procedure, refer to FIGURE 12.4 on page 75.
Disconnecting
1. Hold the light GREY collar portion of the joystick connector with one hand and the
controller connector on the wheelchair in the other and disconnect them by pulling
them apart.
Connecting
ƽ WARNING
The joystick connector and controller connector fit together in one way only. DO
NOT force them together.
1. Hold the light GREY collar portion of the joystick connector with one hand and the
controller connector on the wheelchair in the other and align them.
2. Lightly push to engage the joystick connector and the controller connector.
Washers
Hex Mounting Screws
Adjustment Lock Lever
Mounting Bracket
Joystick Mounting Tube
Arm Tube
Mounting Bracket
(Threaded Plate)
