Invacare Wheelchair Pronto M61 User Manual
Page 70
SECTION 11—BATTERIES
Pronto® M51™and M61™with SureStep®
70
NOTE: For this procedure, refer to FIGURE 11.5.
NOTE: The charger port located on the front of the joystick requires the use of an independent
charger. The independent charger is NOT supplied with the wheelchair.
1. Attach the battery charger connector to the charger port on the front of the joystick.
2. Plug the charger’s AC power cord or extension into the grounded 110‐volt wall outlet.
3. When charging is complete, turn charger Off.
4. Disconnect output cable from joystick charger port.

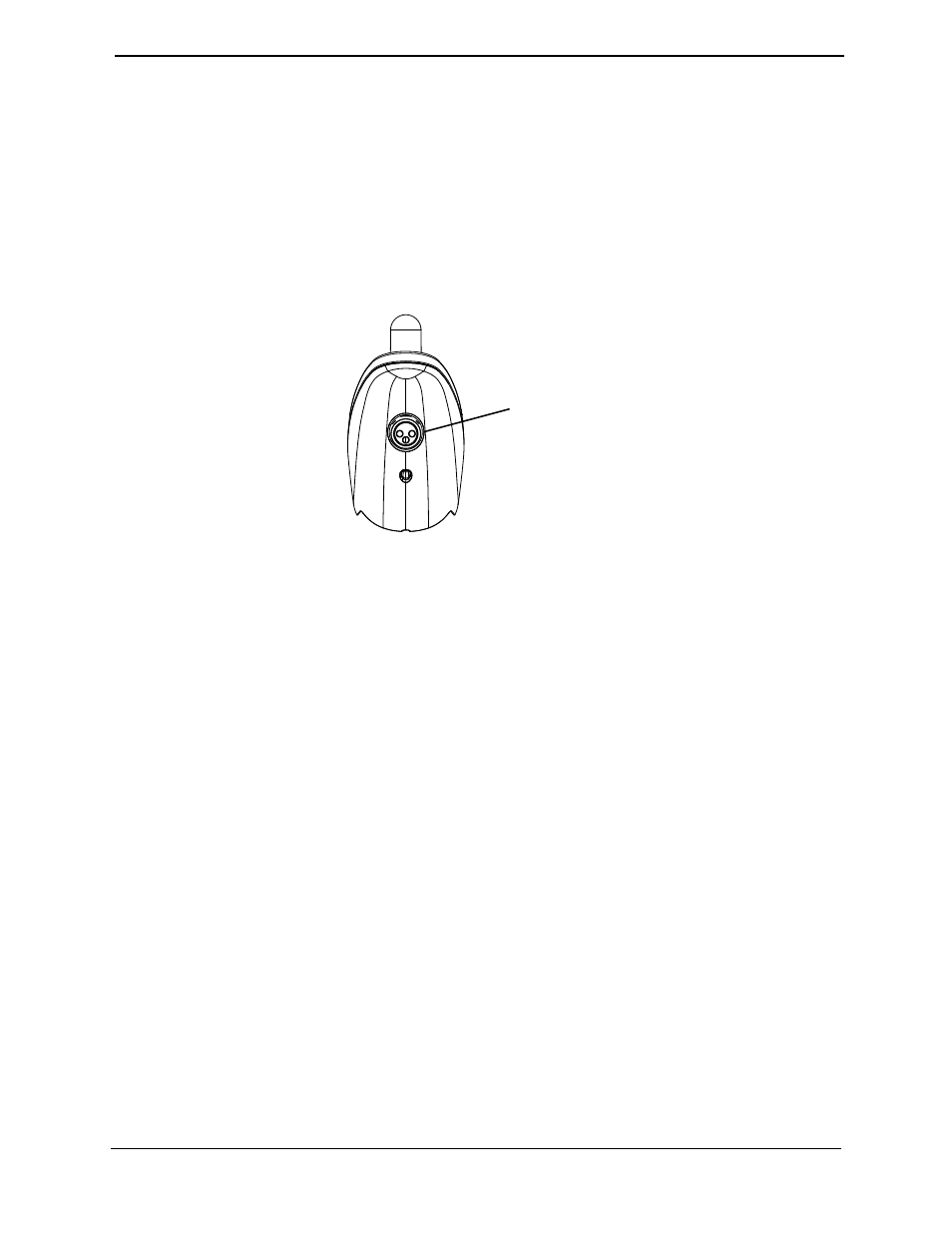

FIGURE 11.5 Charging Using An Independent Charger Plugged Into The Joystick
Charger/
Programming
Port
