SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING

About Joystick Diagnostics

The joystick information gauge and the service indicator give indications of the type of
fault or error detected by the control module. When a fault is detected, the wheelchair
may stop and not drive. The LEDs on the information gauge may flash in a particular
pattern or the service indicator light will flash. The number or type of flashes indicates the
nature of the error. If multiple errors are found, only the first error encountered by the
control module will be displayed.

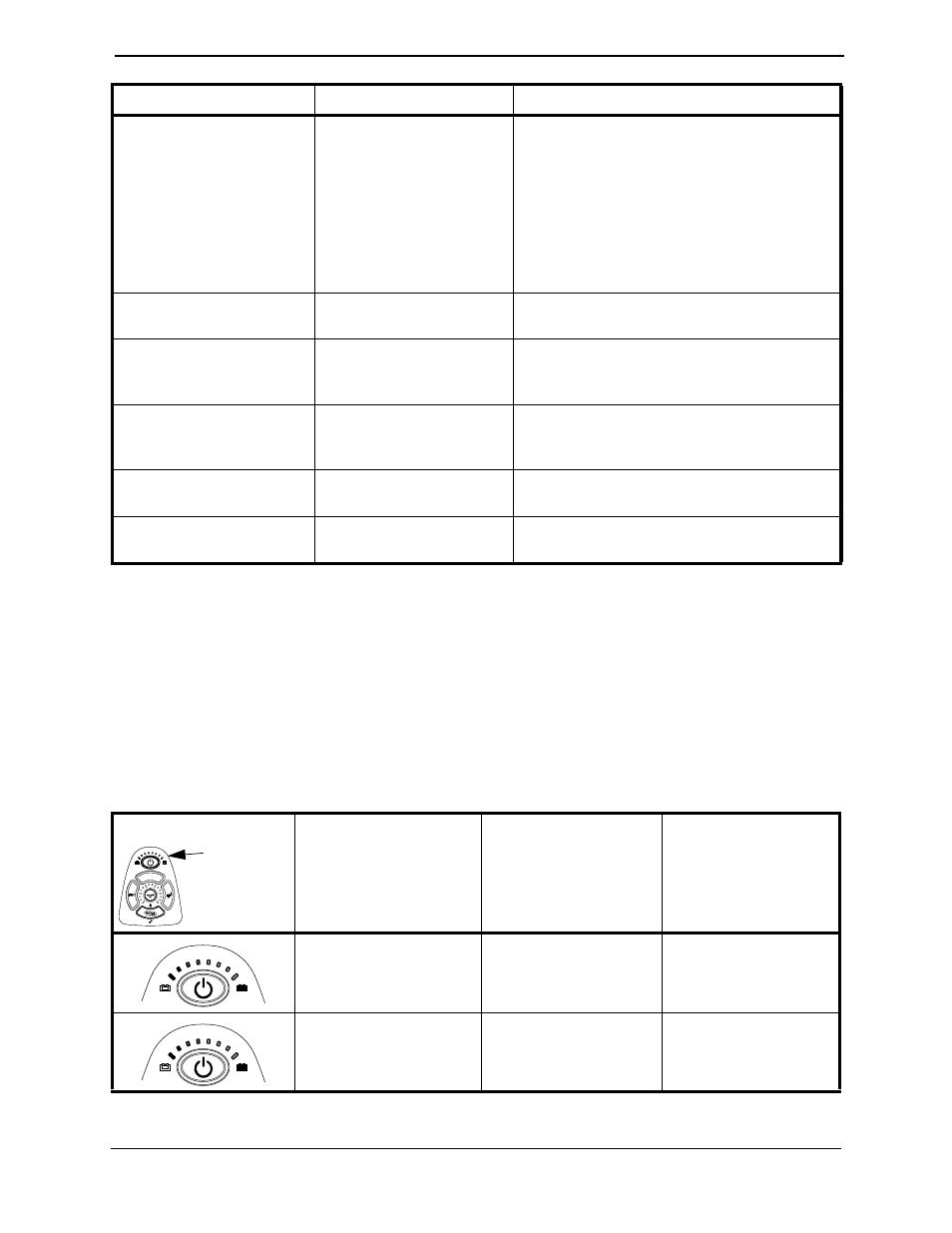

Information Gauge Display Diagnostics

Wheelchair will not drive.

Motor release levers are
disengaged.
Batteries require charging.

Charger plugged in.

Circuit breaker tripped.

Engage motor release levers.

Charge batteries. Make sure the setting on the
charger is correct.
Unplug charger from wall outlet before
operating the wheelchair.
Reset circuit breaker. If breaker trips again, it
may indicate need for internal repair. Contact
Dealer/Invacare.

Motor “chatters” or runs
irregularly.

Electrical malfunction.

Contact Dealer/Invacare.

Only one drive wheel turns.

Electrical malfunction.
One motor lock is
disengaged.

Contact Dealer/Invacare for service.
Engage motor lock.

Joystick erratic or does not
respond as desired.

Electrical malfunction.
Controller programmed
improperly.

Contact Dealer/Invacare for service.
Reprogram controller (Refer to electronics
manual supplied with wheelchair).

Wheelchair does not
respond to commands.

Poor battery terminal
connection.

Have terminals cleaned.

Power indicator off - even
after recharging.

Electrical malfunction.

Contact Dealer/Invacare for service.

DISPLAY

DESCRIPTION

DEFINITION

COMMENTS

All LEDs are off.

Power is off.

All LEDs are on.

Power is on.

Fewer than three LEDs on
implies reduced battery
charge.

SYMPTOM

PROBABLE CAUSE

SOLUTIONS

Information

Gauge

Display
