Types

8189,

8190,

8194,

8195,

8196,

8197,

8415,

8432,

and

8433

4.

Remove

the

memory

modules

from

the

system

board.

Refer

to

“Replacing

memory

(all

machine

types)”

on

page

38.

5.

Remove

the

microprocessor

from

the

system

board.

Refer

to

“Replacing

a

microprocessor

(all

machine

types)”

on

page

59.

To

replace

the

system

board:

1.

Install

the

microprocessor

on

the

new

system

board.

Refer

to

“Replacing

a

microprocessor

(all

machine

types)”

on

page

59.

2.

Install

the

memory

modules

on

the

new

system

board.

Refer

to

“Replacing

memory

(all

machine

types)”

on

page

38.

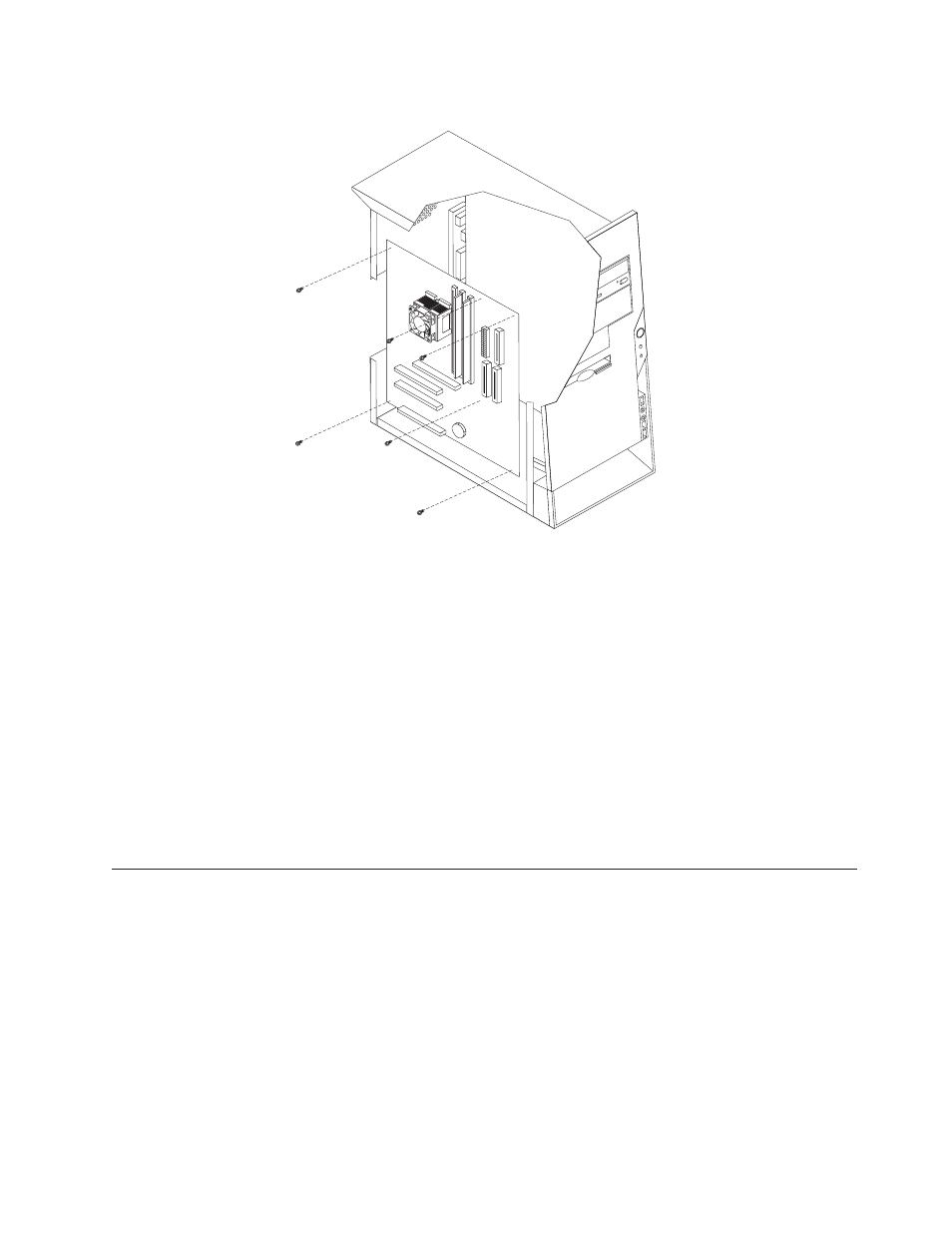

3.

Place

the

new

the

system

board

into

the

chassis

and

install

the

screws

that

secure

the

system

board

to

the

chassis.

4.

Reconnect

all

cables

that

connect

to

the

system

board.

Refer

to

“Identifying

parts

on

the

system

board

(all

machine

types)”

on

page

38.

5.

Go

to

“Replacing

the

cover

and

connecting

the

cables.”

Replacing

the

cover

and

connecting

the

cables

Types

8185,

8186,

8192,

8413,

and

8430

After

replacing

FRUs,

you

need

to

install

any

removed

parts,

replace

the

cover,

and

reconnect

cables,

including

telephone

lines

and

power

cords.

Also,

depending

on

the

option

that

is

installed,

you

might

need

to

confirm

the

updated

information

in

the

IBM

Setup

Utility

program.

To

replace

the

cover

and

connect

cables

to

the

computer:

1.

Ensure

that

all

components

have

been

reassembled

correctly

and

that

no

tools

or

loose

screws

are

left

inside

the

computer.

2.

Clear

any

cables

that

might

impede

the

replacement

of

the

cover.

Chapter

6.

Replacing

FRUs

63
