Types
8196
and
8197
Drive
bay
information

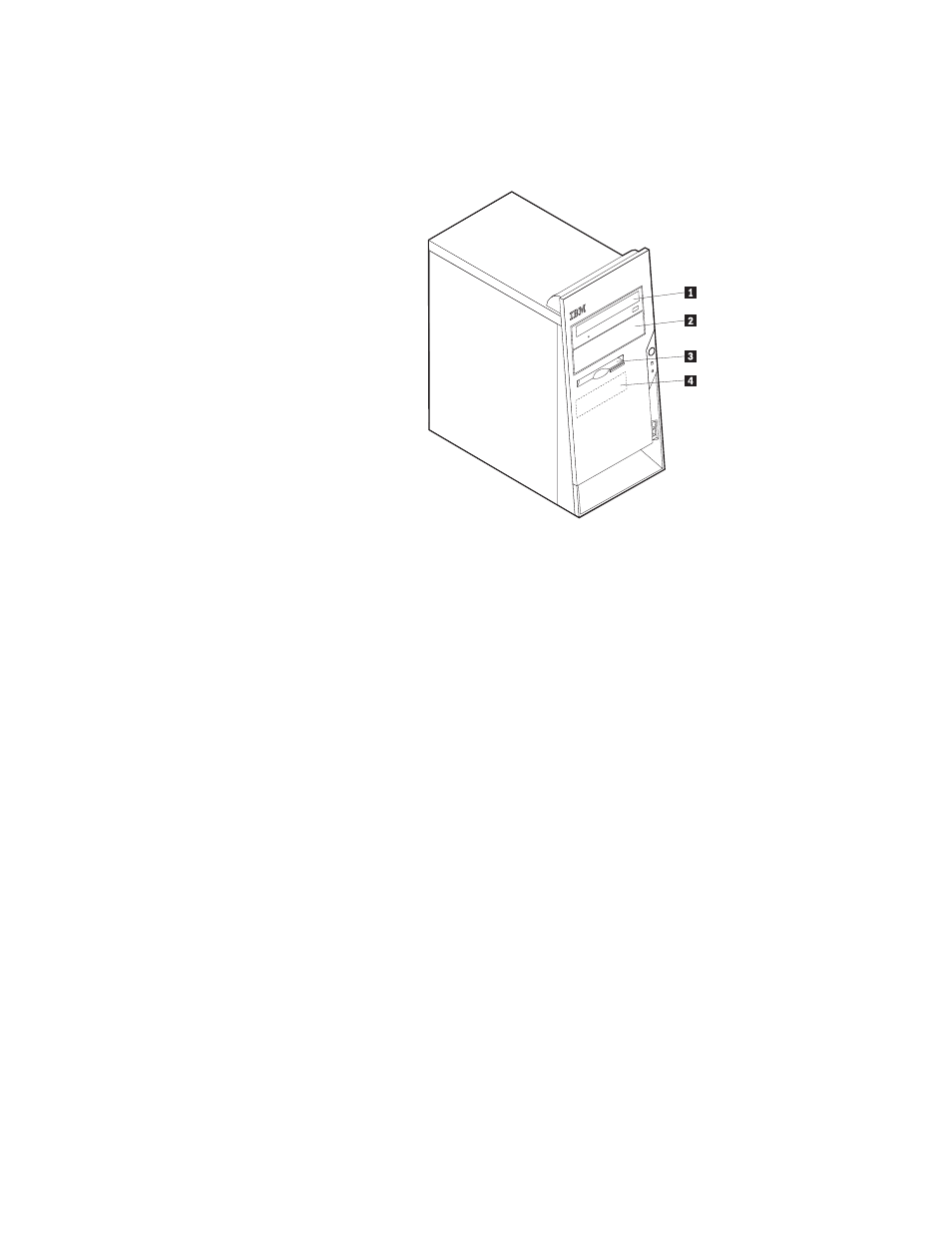

The
following
illustration
shows
the
locations
of
the
drive
bays.
The
following
table
describes
the
drive
bay
height
requirements.
Bay 1
and
bay 2
-
Maximum
height:
43.0
mm
(1.7
in.)
Bay 3
and
bay 4
-
Maximum
height:
25.8
mm
(1.0
in.)
Removing
a
drive
1.
Remove
the
cover.
See
Chapter
6.
Replacing
FRUs
51
