Note:
Take
note
of
the
location
of
any
cables
you
disconnect.
You
might
have
to
disconnect
cables
to
other
drives
to
gain
access
to
the
drive
you
are
removing.
4.
Remove
the
screws
that
secure
the
drive
being
removed.
Note:
The
hard
disk
drive
is
secured
by
two
screws
in
the
side
and
two
at
the
bottom
of
the
drive.
5.
Slide
the
drive
out
the
front
of
the
computer.

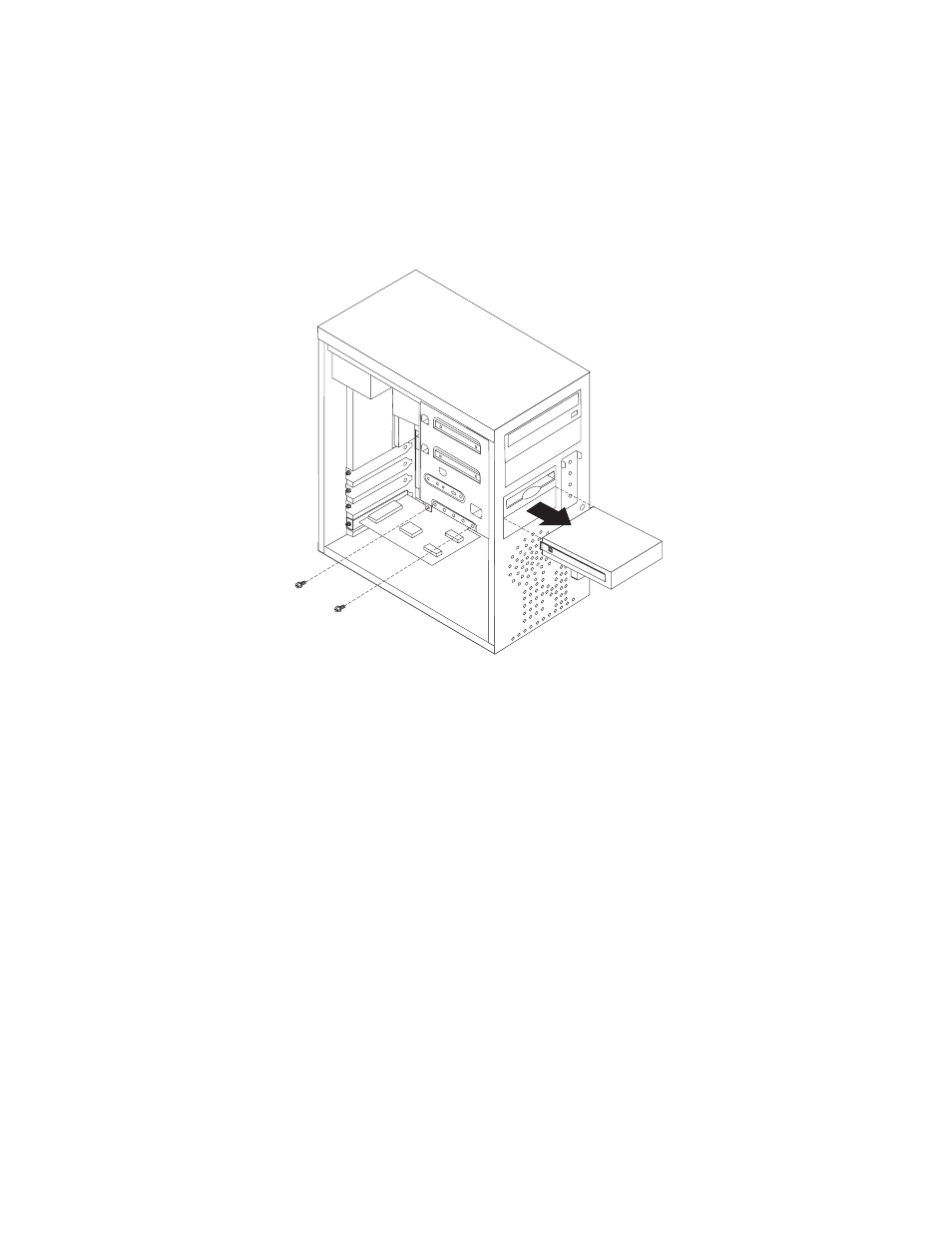

Note:
This
illustration
shows
the
hard
disk
drive
being
removed.
All
drives
are
removed
in
the
same
manner.
However,
it
is
only
necessary
to
remove
the
front
bezel
when
removing
the
hard
disk
drive
or
diskette
drive.
Installing
a
drive
1.
If
you
are
installing
a
parallel
drive,
make
sure
the
drive
is
set
correctly
as
either
a
master
or
a
slave
device.
Jumper
the
new
drive
the
same
as
the
drive
being
replaced.
Serial
ATA
hard
disk
drives
do
not
require
a
master/slave
jumper.
Refer
to
the
documentation
that
comes
with
your
drive
for
master/slave
jumper
information.
2.
Install
the
drive
into
the
bay.
Align
the
screw
holes
and
install
two
screws
to
secure
the
drive.
Chapter
6.
Replacing
FRUs
53
