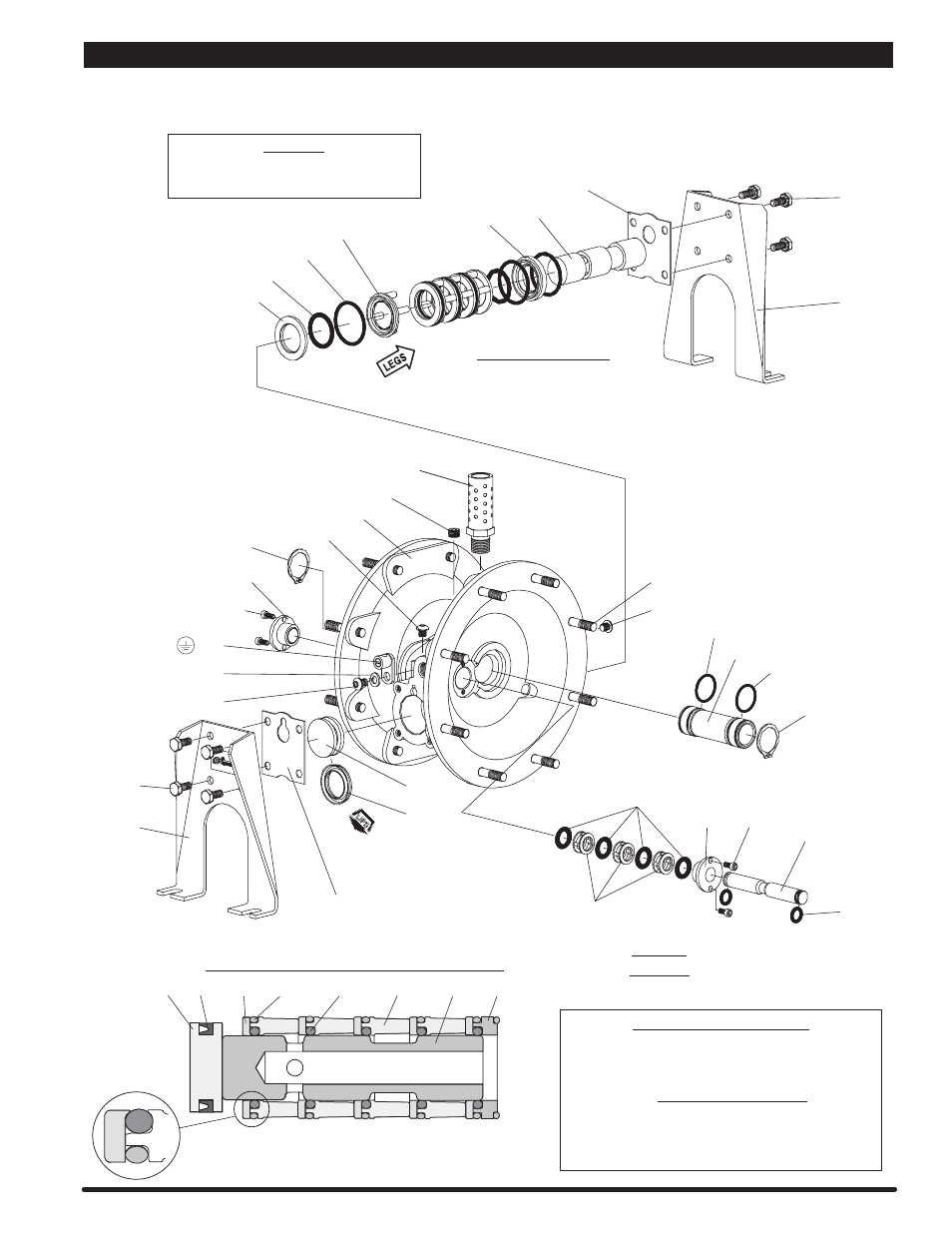

PARTS LIST / AIR MOTOR SECTION
MAJOR VALVE
See cross section detail figure 3.
PILOT
VALVE
101
118 k
111
112
k 113
k 114
115
116
117
119 k
102 k
103 k
104
123 z 121
122 k 120
107
108
109
110 k . 105
IMPORTANT
BE CERTAIN TO ORIENT (115) SPACER LEGS
AWAY FROM BLOCKING INTERNAL PORTS
WHEN REASSEMBLING AIR SECTION.
MAJOR VALVE CROSS SECTION DETAIL
201
109 110 k 112 114 k 113 k 115 111 k 116
Figure 2
Figure 3
124
.
TORQUE REQUIREMENTS
,
NOTE: DO NOT OVERTIGHTEN FASTENERS
(105) 40 Ć 50 in. lbs (4.5 Ć 5.6 Nm),
apply Loctite Nickel Antiseize to threads.
LUBRICATION / SEALANTS
k Apply KeyĆLube grease to all O" rings, U" Cups &
mating parts.
z Apply Loctite 271 to threads.
H Apply pipe sealant to threads.
102 k
H 128
104
121
z 123
107
z 195
195 z
z 196
43
106
105 ,
