OPERATOR’S MANUAL 650636--X--C
RELEASED: 11--15--96
REVISED: 6--4--10
(REV. 02)
FOUR BALL PUMP SERIES
6” AIR MOTOR
3:1 RATIO
6” STROKE
INCLUDE MANUALS: 6696X--X LOWER PUMP END (PN 97999--051) &
S--632 GENERAL INFORMATION MANUAL (PN 97999--624)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, TROUBLESHOOTING
650636--X43--C
400 SERIES STAINLESS STEEL
SERVICE KITS
• Use only genuine ARO
R
replacement parts to assure compatible
pressure rating and longest service life.
• 61355 for repair of Air Motor section.
Service Note: The Air Motor Service/Parts Manual is not shipped
with the pump but it is included with each Service Kit. If this Service/
PartsInformationisneeded,requesttheAirMotorOperator’sManu-
al from ARO. (Manual 6564X--X, PN 97999--174).
• 637240- X43 for repair of Lower Pump section.
Refer to the chart on page 2 for description of --X43 options.
SPECIFICATIONS
Model Series
(Refer to option chart)
650636--X43--C . .
Type Air Operated, Four Ball . . . . . . . . . . . . . . . . . . . .
Ratio 3:1 . . . . . . . . . . . . . . . . . . . .
Air Motor 65665--B . . . . . . . . . . . . . . . . .
Motor Repair Kit 61355 . . . . . . . . . .
Motor Diameter 6” (15.2 cm) . . . . . . . . . . .
Stroke 6’’ . . . . . . . . . . . . . . . . . .
Air Inlet 1/2’’ -- 14 NPTF--1(f) . . . . . . . . . . . . . . . . .
Air Exhaust 1--1/4’’, 11--1/2 NPTF--1(f) . . . . . . . . . . . . . .
Lower Pump End Series 66961--X43 . . . . .
Lower Pump Repair Kit 637240--X43 . . . . .
Material Outlet 3/4” NPTF--1(f) . . . . . . . . . . .
PERFORMANCE
Air Inlet Pressure Range 30 -- 150 PSI (2 -- 10.3 bar) . . . . .
Fluid Pressure Range 90 -- 450 PSI (6.2 -- 31.0 bar) . . . . . . .
Max. Rec’d Cycles / Minute 78 . . .
Displacement In 3 Per Cycle 113 . . .
Volume/Cycle 62.6 oz. (1851 ml) . . . . . . . . . . . . .
Cycles Per Gallon 2.0 . . . . . . . . . .
Flow @ 60 Cycles / Minute 29.35 GPM (111.1 lpm) . . . .
Noise Level @ 60 Psi - 40 Cpm 84.8 db(A) *
* The pump sound pressure level has been updated to an Equivalent Continuous Sound
Level (L
Aeq
) to meet the intent of ANSI S1. 13--1971, CAGI--PNEUROP S5.1 using four
microphone locations.

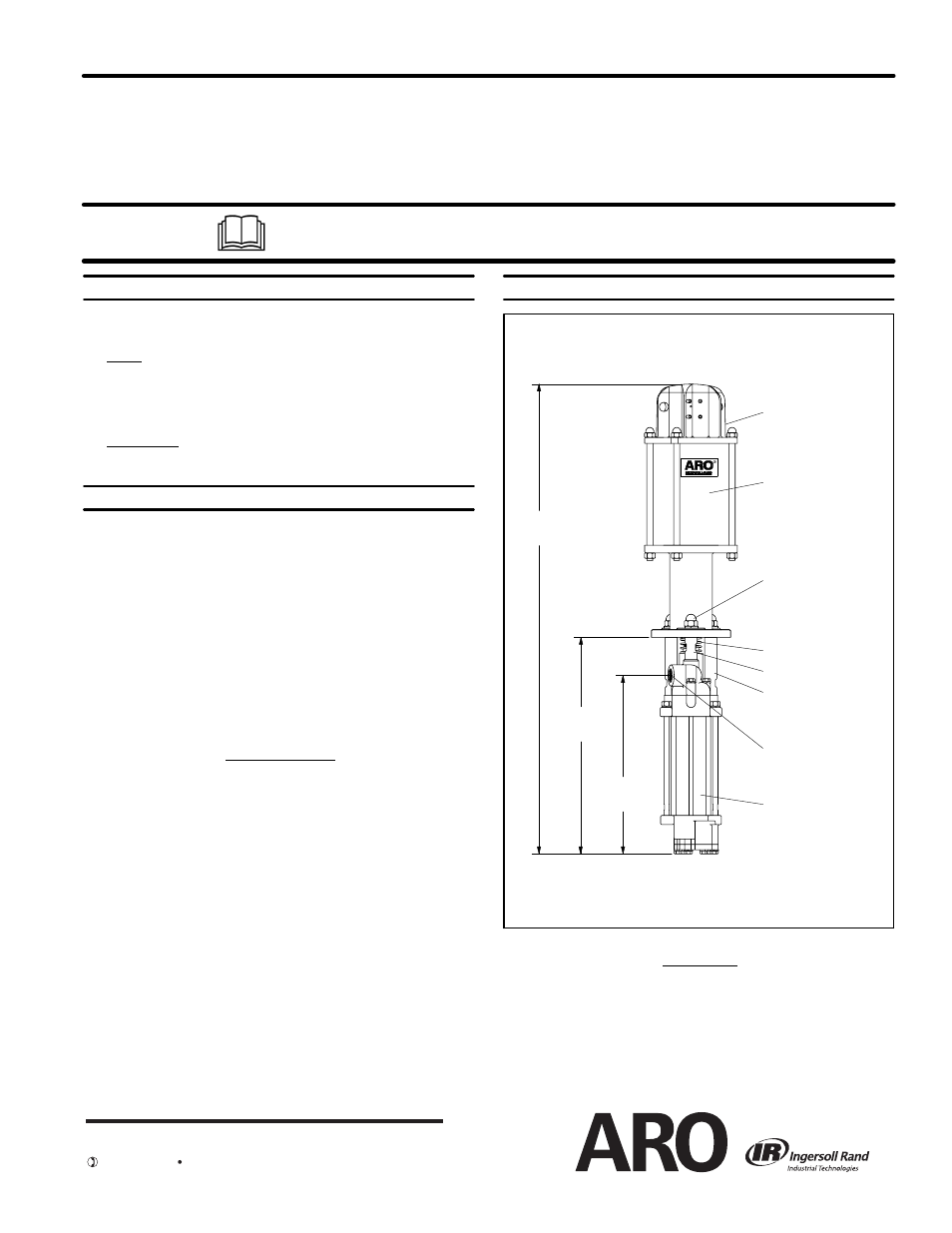

PUMP DATA
Air Motor
65665--B
(See Manual 6564X--X)
FIGURE 1
Material Outlet
3/4’’ NPTF--1(f)
75_ FROM AIR EXHAUST
Lower Pump
66961--X43
(See Manual 6696X--X)
Air Inlet
1/2--14 NPTF--1(f)
(Not Shown)
Spacer Section
14- 21/32
(372 mm)
Accessories Available: 91790 Silencer, 66101 Wall Bracket.
NUT Y85--29--N (3)
WASHER Y14--625 (3)
SPACER ROD 93232--1 (2)
CONNECTOR
See Figure 2
MODEL 650636- X43- C
17- 25/32
(452 mm)
38- 5/8
(981 mm)
SPRING 94457
SPACER ROD 93232--2
IMPORTANT
This is one of the four documents which support the pump.
Replacement copies of these forms are available upon request.
=
650636--X--C MODEL OPERATOR’S MANUAL
-
GENERAL INFORMATION -- INDUSTRIAL PISTON PUMPS
-
6696X--X LOWER PUMP END OPERATOR’S MANUAL
-
6564X--X AIR MOTOR OPERATOR’S MANUAL
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
