Operator’s manual 6661hx-xxx-c, 1" diaphragm pump, Pump data

background image

INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506

(800) 276-4658

y

FAX (800) 266-7016

© 2010

CCN 15276603

READ THIS MANUAL CAREFULLY BEFORE INSTALLING,

OPERATING OR SERVICING THIS EQUIPMENT.

It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

OPERATOR’S MANUAL

6661HX-XXX-C

INCLUDING: OPERATION, INSTALLATION & MAINTENANCE

RELEASED: 12-18-06
REVISED: 5-20-10
(REV. 04)

1" DIAPHRAGM PUMP

CSA CERTIFIED, 1:1 RATIO, METALLIC

INTENDED FOR USE WITH SWEET NATURAL GAS

SERVICE KITS

Refer to Model Description Chart to match the pump mate-

rial options.

637118-C for gas section repair (see page 6).
637119-C9-C for fl uid section repair (see page 4).

PUMP DATA

Models . . . . . . . . . . . . . see Model Description Chart for “-XXX”
Pump Type . . . . . . . . . Gas Operated Double Diaphragm
Material . . . . . . . . . . . . see Model Description Chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 lbs (8.62 kgs)
Maximum Gas Inlet Pressure . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Material Inlet Pressure . . . 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Flow Rate

(fl ooded inlet)

. . . 35 g.p.m. (133 l.p.m.)

Displacement / Cycle @ 100 p.s.i.g. . 0.156 gal. (0.59 lit.)
Maximum Particle Size . . . . . . . . . . . . . 1/8” dia. (3.2 mm)
Maximum Temperature Limits . . . 32° to 125° F (0° to 52° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 p.s.i., 60 c.p.m. . . . . . . 64.5 db(A)c

c The pump sound pressure levels published here have been updated to

an Equivalent Continuous Sound Level (L

Aeq

) to meet the intent of ANSI

S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.

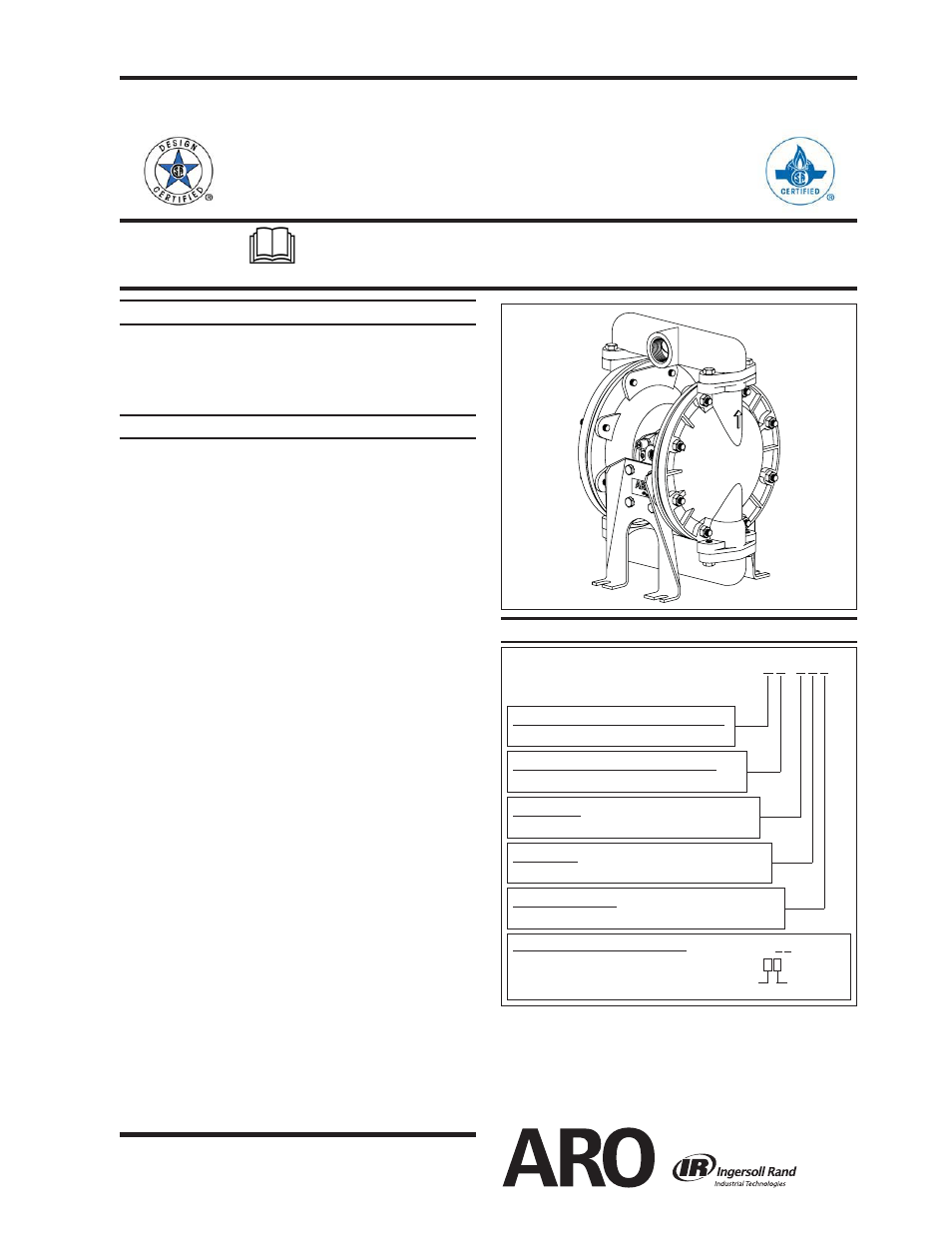

Figure 1

MODEL DESCRIPTION CHART

6661 H 0 - 1 C 9 - C

Center Section Material, Fluid Connection
H - Aluminum, 1 - 11-1/2 N.P.T.F. - 1

Fluid Cap / Manifold Material, Hardware
0 - Aluminum, Carbon Steel

Fluid Section Service Kit Selection

EXAMPLE: Model #6661H0-1C9-C
Fluid Section Service Kit # 637119-C9-C

6661H0 - 1 X X - C

Ball

Diaphragm

637119 - X X - C

Seat Material
1 - Aluminum

Diaphragm Material
9 - Hytrel

Ball Material
C - Hytrel®
