E

2010

CCN 99756587

(800) 276-4658

D

FAX (800) 266-7016

INGERSOLL RAND COMPANY
209 NORTH MAIN STREET- BRYAN, OHIO 43506

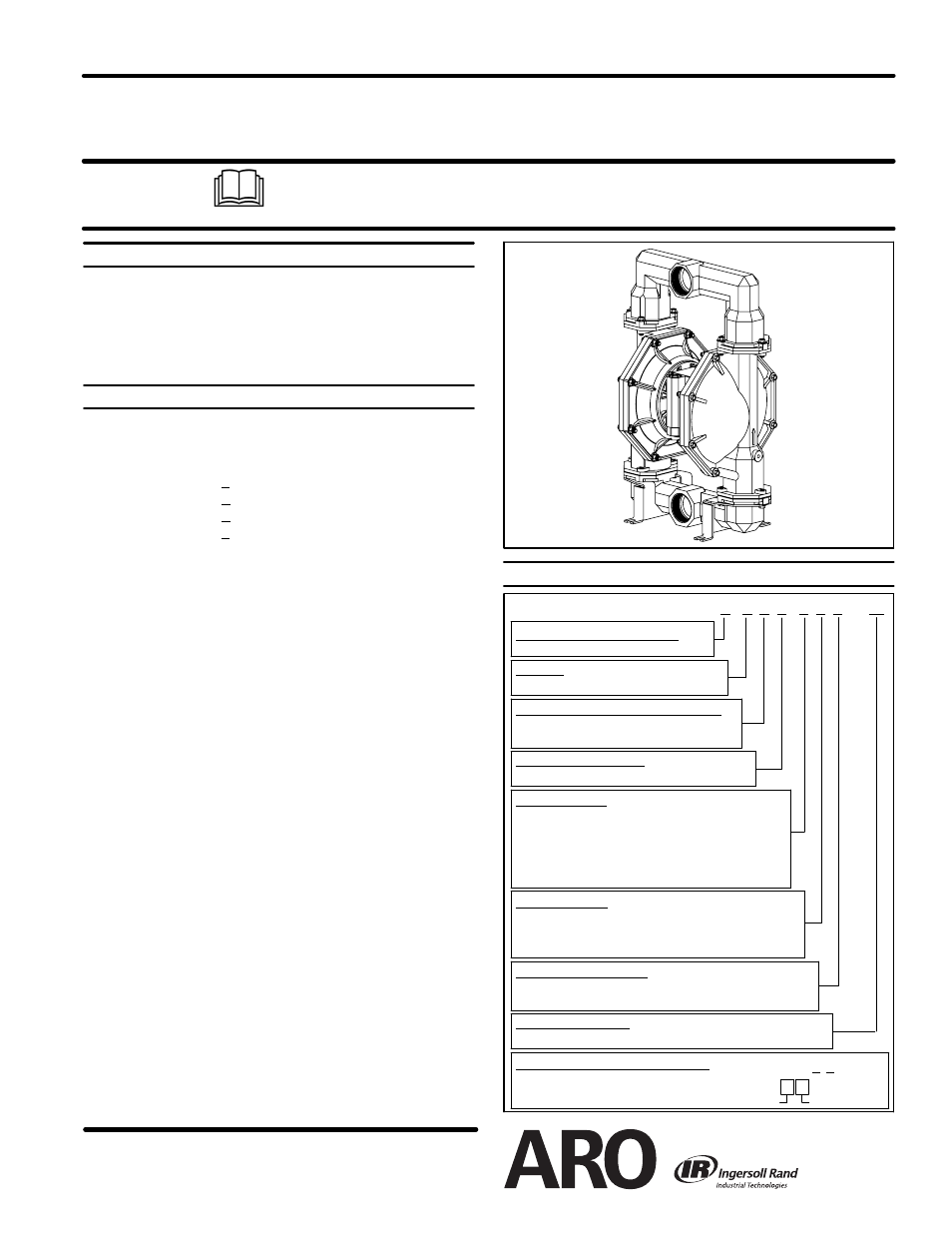

OPERATOR’S MANUAL

PD30X-X-B

RELEASED:

8-14-98

REVISED:

5-7-10

(REV. P)

INCLUDING: OPERATION, INSTALLATION & MAINTENANCE

3” DIAPHRAGM PUMP

1:1 RATIO (METALLIC)

READ THIS MANUAL CAREFULLY BEFORE INSTALLING,

OPERATING OR SERVICING THIS EQUIPMENT.

It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

SERVICE KITS

Refer to Model Description Chart to match the pump material options.
637303-XX for fluid section repair (see page 4). Note: This kit also con-

tains several air motor seals which will need to be replaced.

637302 for air section repair (see page 6).
67089-X major air valve assembly (see page 7)

PUMP DATA

Models

see Model Description Chart for “-XXX”.

. . . . . . . . . . . . .

Pump Type

Metallic Air Operated Double Diaphragm

. . . . . . . . . .

Material

see Model Description Chart.

. . . . . . . . . . . . .

Weight

PD30A-XAX-XXX-B( )

113 lbs (51.3 kgs)

. . . .

. . .

PD30A-XCX-XXX-B( )

197 lbs (89.4 kgs)

. . .

PD30A-XHX-XXX-B( )

203 lbs (92.1 kgs)

. . .

PD30A-XSX-XXX-B( )

203 lbs (92.1 kgs)

. . .

(add 40 lbs [18.1 kg] for stainless steel air motor section)

Maximum Air Inlet Pressure

Ball check models

120 p.s.i.g. (8.3 bar)

. . . . . . . . . . . . .

Cone check models

100 p.s.i.g. (6.9 bar)

. . . . . . . . . . . .

Maximum Material Inlet Pressure

10 p.s.i.g. (.69 bar)

. . . . .

Maximum Outlet Pressure

Ball check models

120 p.s.i.g. (8.3 bar)

. . . . . . . . . . . . .

Cone check models

100 p.s.i.g. (6.9 bar)

. . . . . . . . . . . .

Maximum Flow Rate

(flooded inlet)

Ball check models

275 g.p.m. (1041 l.p.m.)

. . . . . . . . . . . . .

Cone check models

195 g.p.m. (738.1 l.p.m.)

. . . . . . . . . . . .

Displacement / Cycle @ 100 p.s.i.g.

2.8 gal. (10.6 lit.)

. . .

Maximum Particle Size

Ball check models

3/8” dia. (9.5 mm)

. . . . . . . . . . . . .

Cone check models

3/4” dia. (18.75 mm)

. . . . . . . . . . . .

Maximum Temperature Limits (diaphragm / ball / seal material)

E.P.R. / EPDM

-60

_ to 280_ F (-51_ to 138_ C)

. . . . . . . . . . .

Hytrel

R

-20

_ to 150_ F (-29_ to 66_ C)

. . . . . . . . . . . . . . . .

Nitrile

10

_ to 180_ F (-12_ to 82_ C)

. . . . . . . . . . . . . . . . .

P.V.D.F. (Kynar

R

)

10

_ to 200_ F (-12_ to 93_ C)

. . . . . . . .

Santoprene

R

-40

_ to 225_ F (-40_ to 107_ C)

. . . . . . . . . . .

PTFE

40

_ to 225_ F (4_ to 107_ C)

. . . . . . . . . . . . . . . . .

Viton

R

-40

_ to 350_ F (-40_ to 177_ C)

. . . . . . . . . . . . . . . .

Dimensional Data

see page 8

. . . . . . . . . . . . . . . .

Mounting Dimensions

10-5/32” x 12-1/16” (258 mm x 306 mm)

. . .

Noise Level @ 70 p.s.i., 50 c.p.m.



83.0 db(A)



. . . .

 Tested with 67263 muffler assembly installed.
 The pump sound pressure levels published here have been updated to an Equivalent

Continuous Sound Level (L

Aeq

) to meet the intent of ANSI S1.13-1971, CAGI-PNEU-

ROP S5.1 using four microphone locations.

NOTICE: All possible options are shown in the chart however certain com-
binations may not be recommended, consult a representative or the fac-
tory if you have questions concerning availability
.

3” DIAPHRAGM PUMP

PD30X-XXX-XXX-B( )

MODEL DESCRIPTION CHART

PD30 X - X X X - X X X - B 03

PD30X - XXX - X X X - B( )

637303 - X X

Diaphragm

Ball

FLUID SECTION SERVICE KIT SELECTION

EXAMPLE: MODEL # PD30A-ACS-SAA-B
FLUID SECTION SERVICE KIT # 637303-AA

SEAT MATERIAL
A - Santoprene

H - Hard 440 Stainless Steel

C - Hytrel

K - PVDF (Kynar)

E - Carbon Steel

L - Hastelloy

F - Aluminum

S - 316 Stainless Steel

G - Nitrile

0 - (Cone Check)

DIAPHRAGM MATERIAL
A - Santoprene

G - Nitrile

V - Viton

C - Hytrel

T - PTFE

BALL MATERIAL

(

=

) Cone Check models

A - Santoprene

J - Nitrile

(

=

)

T - PTFE

C - Hytrel

K - E.P.R.

(

=

)

V - Viton

G - Nitrile

L - Viton

(

=

)

HARDWARE MATERIAL
P - Plated Steel

S - Stainless Steel

FLUID CAPS & MANIFOLD MATERIAL
A - Aluminum

H - Hastelloy

C - Cast Iron

S - Stainless Steel

THREAD
A - N.P.T.F.

B - BSP

CENTER SECTION MATERIAL
A - Aluminum

S - Stainless Steel

CONE CHECK FLOW
03 - Bottom Discharge
