1” DIAPHRAGM PUMP
OPERATOR’S MANUAL PM10X-X-X-A02
RELEASED: 2-28-05
REVISED: 5-19-10
(REV. 06)
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637397 for air section repair (see page 6).
637401-XX for fluid section repair (see page 4). NOTE: This kit also con-
tains several air motor seals which will need to be replaced.
637395-X major air valve assembly (see page 7).
PUMP DATA
Models see Model Description Chart for “-XXX”. . . . . . . . . . . . . .
Pump Type Metallic Air Operated Double Diaphragm . . . . . . . . . .
Material see Model Description Chart. . . . . . . . . . . . . .
Weight PM10A-CSS-XXX-A02 44.84 lbs (20.3 kgs) . . . . . .
PM10R-CSS-XXX-A02 38.2 lbs (17.3 kgs) . . .
PM10S-CSS-XXX-A02 51.64 lbs (23.4 kgs) . . .
Maximum Air Inlet Pressure 120 p.s.i.g. (8.3 bar) . . . . . . . . .
Maximum Material Inlet Pressure 10 p.s.i.g. (0.69 bar) . . . . .
Maximum Outlet Pressure 120 p.s.i.g. (8.3 bar) . . . . . . . . . .
Maximum Flow Rate (flooded inlet) 52.2 g.p.m. (197.6 l.p.m.) . . . .
Displacement / Cycle @ 100 p.s.i.g. 0.232 gal. (0.88 lit.) . . .
Maximum Particle Size 1/8” dia. (3.3 mm) . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM -60 _ to 280_ F (-51_ to 138_ C) . . . . . . . . .
Polypropylene 35 _ to 175_ F (2_ to 79_C) . . . . . . . . .
Santoprene R -40 _ to 225_ F (-40_ to 107_ C) . . . . . . . . . .
PTFE 40 _ to 225_ F (4_ to 107_ C) . . . . . . . . . . . . . . .
Dimensional Data see page 8 . . . . . . . . . . . . . . . .
Mounting Dimension 4” x 6.25” (101.6 mm x 158.8 mm) . . . . . . . .
Noise Level @ 70 p.s.i., 60 c.p.m. 80.6 db(A) { . . . . .
 The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L
Aeq
) to meet the intent of ANSI S1.13-1971, CAGI-PNEU-
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or the
factory if you have questions concerning availability.

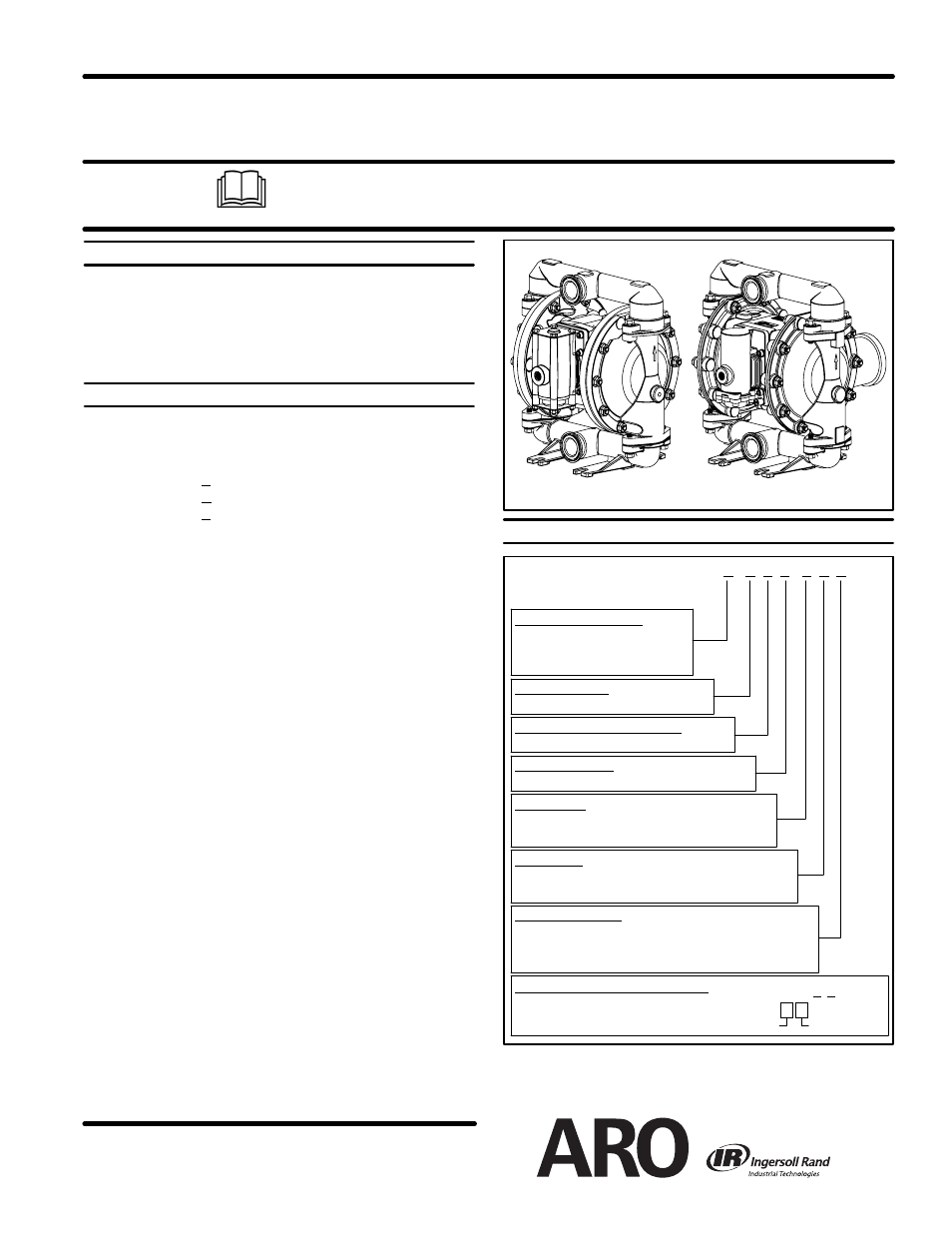

Figure 1
MODEL DESCRIPTION CHART
PM10 X - C S S - X X X - A02
PM10X - CSS - X X X - A02
637401 - X X
Diaphragm Ball
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: Model # PM10A-CSS-AAA-A02
Fluid Section Service Kit # 637401-AA
Seat Material
A - Santoprene
S - 316 Stainless Steel
Diaphragm Material
A - Santoprene
M - Medical Grade Santoprene
T - PTFE / Santoprene
Hardware Material
S - Stainless Steel
Fluid Caps & Manifold Material
S - Stainless Steel
Fluid Connection
C - 1-1/2” Tri-Clamp
Center Section Material
A - Aluminum
R - Polypropylene
S - Stainless Steel
Ball Material
A - Santoprene
T - PTFE
