Operator’s manual 66m3x0-xxx-c, 3" diaphragm pump

background image

INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506

(800) 276-4658

y

FAX (800) 266-7016

© 2010

CCN 15321482

www.ingersollrandproducts.com

OPERATOR’S MANUAL

66M3X0-XXX-C

INCLUDING: OPERATION, INSTALLATION & MAINTENANCE

RELEASED: 10-22-08
REVISED: 5-6-10
(REV. 05)

3" DIAPHRAGM PUMP

1:1 RATIO (METALLIC)

READ THIS MANUAL CAREFULLY BEFORE INSTALLING,

OPERATING OR SERVICING THIS EQUIPMENT.

It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

The original language of this manual is English.

SERVICE KITS

Refer to Model Description Chart to match the pump material op-

tions.

637434 for air section repair (see page 6).
637467-XX for fl uid section repair (see page 4).

PUMP DATA

Models . . . . . . . . . . . . . . . . . see Model Description Chart for “-XXX”
Pump Type . . . . . . . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . . . . . . . see Model Description Chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118.32 lbs (53.67 kgs)
Maximum Air Inlet Pressure . . . . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Material Inlet Pressure . . . . . . 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Flow Rate (fl ooded inlet) . . . 217 g.p.m. (821.3 l.p.m.)
Displacement / Cycle @ 100 p.s.i.g. . . . . 2.08 gal. (7.9 lit.)
Maximum Particle Size . . . . . . . . . . . . . . . . 1” dia. (25.4 mm)
Maximum Temperature Limits (diaphragm / ball / seal material)

E.P.R. / EPDM . . . . . . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Hytrel® . . . . . . . . . . . . . . . . . . . . . . . . . -20° to 150° F (-29° to 66° C)
Nitrile . . . . . . . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Santoprene® . . . . . . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Viton® . . . . . . . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)

Dimensional Data . . . . . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 p.s.i., 60 c.p.m.c . . . . . . 86.3 db(A)d
Noise Level @ 70 p.s.i., 60 c.p.m.e . . . . . . 108.7 db(A)d

c Tested with 94810 muffl er assembly installed.
d The pump sound pressure levels published here have been updated to

an Equivalent Continuous Sound Level (L

Aeq

) to meet the intent of ANSI

S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.

e Tested with 97116 housing and 97110-2 ball installed. Hearing protec-

tion is recommended when using this product.

NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or
the factory if you have questions concerning availability.

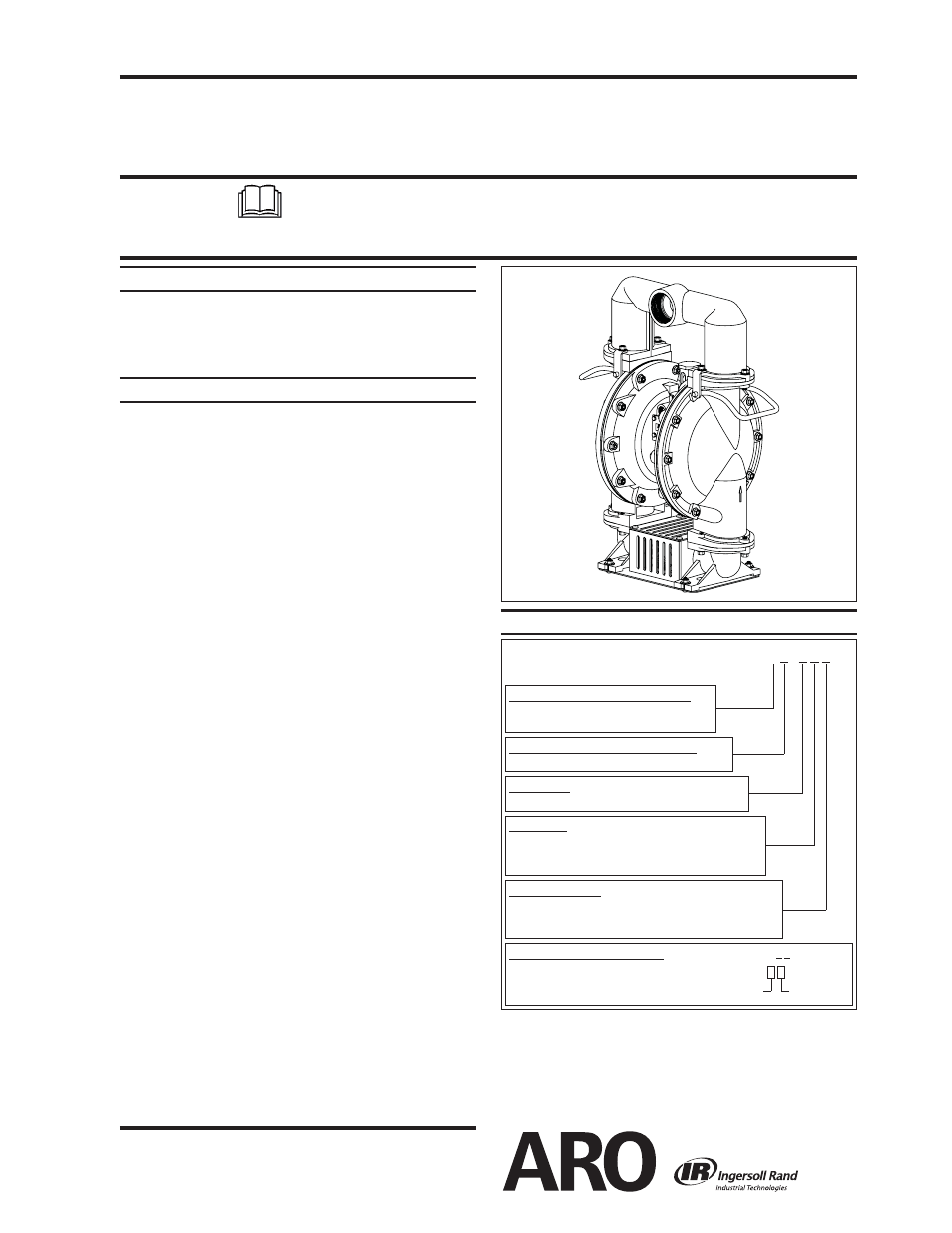

Figure 1

MODEL DESCRIPTION CHART

66M3 X 0 - X X X - C

Center Body Material / Fluid Connection
0 - Aluminum / 3 - 8 NPTF - 2
2 - Aluminum / Rp 3 (3 - 11 BSP parallel)

Ball Material
2 - Nitrile
C - Hytrel
E - Santoprene

Example: Model #66M300-1EB-C
Fluid Section Service Kit # 637467-EB

66M3X0 - X X X - C

Ball Diaphragm

637467 - X X

Fluid Cap & Manifold Material / Hardware
0 - Aluminum / Carbon steel

Diaphragm Material
2 - Nitrile
9 - Hytrel
B - Santoprene

Seat Material
1 - Aluminum

Fluid Section Service Kit Selection
