OPERATOR’S MANUAL

PH30F-XXX-XXX-C

INCLUDING: OPERATION, INSTALLATION & MAINTENANCE

RELEASED: 5-28-08
REVISED:

1

0-19-11

(REV. 0

5)

3" DIAPHRAGM PUMP

2:1 RATIO (METALLIC)

READ THIS MANUAL CAREFULLY BEFORE INSTALLING,

OPERATING OR SERVICING THIS EQUIPMENT.

It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

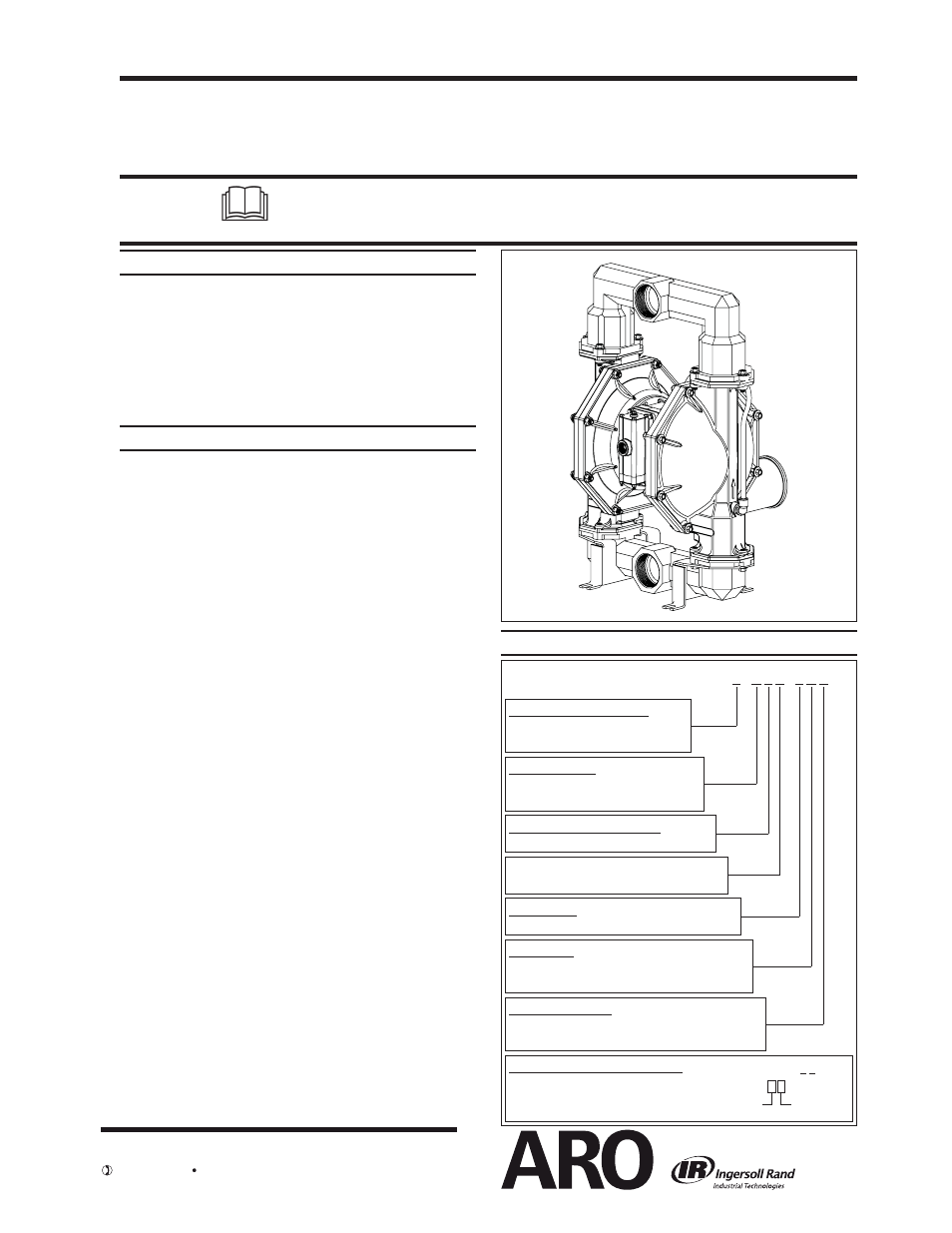

Figure 1

SERVICE KITS

Refer to Model Description Chart to match the pump mate-

rial options.

637441-XX for fl uid section repair (see page 4). NOTE: This kit

also contains several air motor seals which will need to be
replaced.

637369 for air section repair (see page 6).
637374-6 major air valve assembly (see page 7).

PUMP DATA

Models . . . . . . . . . . . see Model Description Chart for “-XXX”
Pump Type . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . see Model Description Chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268 lbs (121.6 kgs)
Maximum Air Inlet Pressure . . . . . . . 100 p.s.i.g. (6.9 bar)
Maximum Material Inlet Pressure . . 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . 200 p.s.i.g. (13.8 bar)
Maximum Flow Rate . . . . . . . . . . . . . . . 150 g.p.m. (567.8 l.p.m.)

fl ooded inlet . . . . . . . . . . . 160 g.p.m. (605.6 l.p.m.)

Displacement / Cycle @ 100 p.s.i.g. 1.4 gal. (5.3 lit.)
Maximum Particle Size . . . . . . . . . . . . 3/8” dia. (9.5 mm)
Maximum Temperature Limits (diaphragm / ball / seal

material)

E.P.R. / EPDM . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Hytrel® . . . . . . . . . . . . . . . . . . . -20° to 150° F (-29° to 66° C)
Nitrile . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Polypropylene . . . . . . . . . . . . 35° to 175° F (2° to 79° C)
Santoprene® . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE. . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Viton® . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)

Dimensional Data . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 p.s.i., 50 c.p.m.c . . 83.0 db(A)d

c Tested with 67263 muffl er assembly installed.
d The pump sound pressure levels published here have been updated to

an Equivalent Continuous Sound Level (L

Aeq

) to meet the intent of ANSI

S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.

NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or
the factory if you have questions concerning availability.

MODEL DESCRIPTION CHART

PH30F - X S

P - S X X - C

Air Motor / Air Cap Material
F - Conductive Polypropylene
/ Stainless Steel

Fluid Connection
A - 3 - 8 N.P.T.F. - 1
B - Rp 3 (3 - 11 BSP parallel)

Ball Material
A - Santoprene

T - PTFE

C - Hytrel

V - Viton

Fluid Section Service Kit Selection

EXAMPLE: Model #PH30F-AS

P-SAA-C

Fluid Section Service Kit # 637441-AA

PH30F - AS

P - S X X - C

Ball

Diaphragm

637441 - X X

Diaphragm Material
A - Santoprene

T - PTFE / Santoprene

C - Hytrel

Seat Material
S - Stainless Steel

INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506

(800) 495-0276 FAX(800) 892-6276

© 2010

CCN

15307648

www.ingersollrandproducts.com

Fluid Cap & Manifold Material

S - Stainless Steel

Hardware Material
P - Plated Steel
