NS-LBD32X-10A Insignia 32" LCD TV/Blu-ray DVD Combo, 1080p
www.insigniaproducts.com

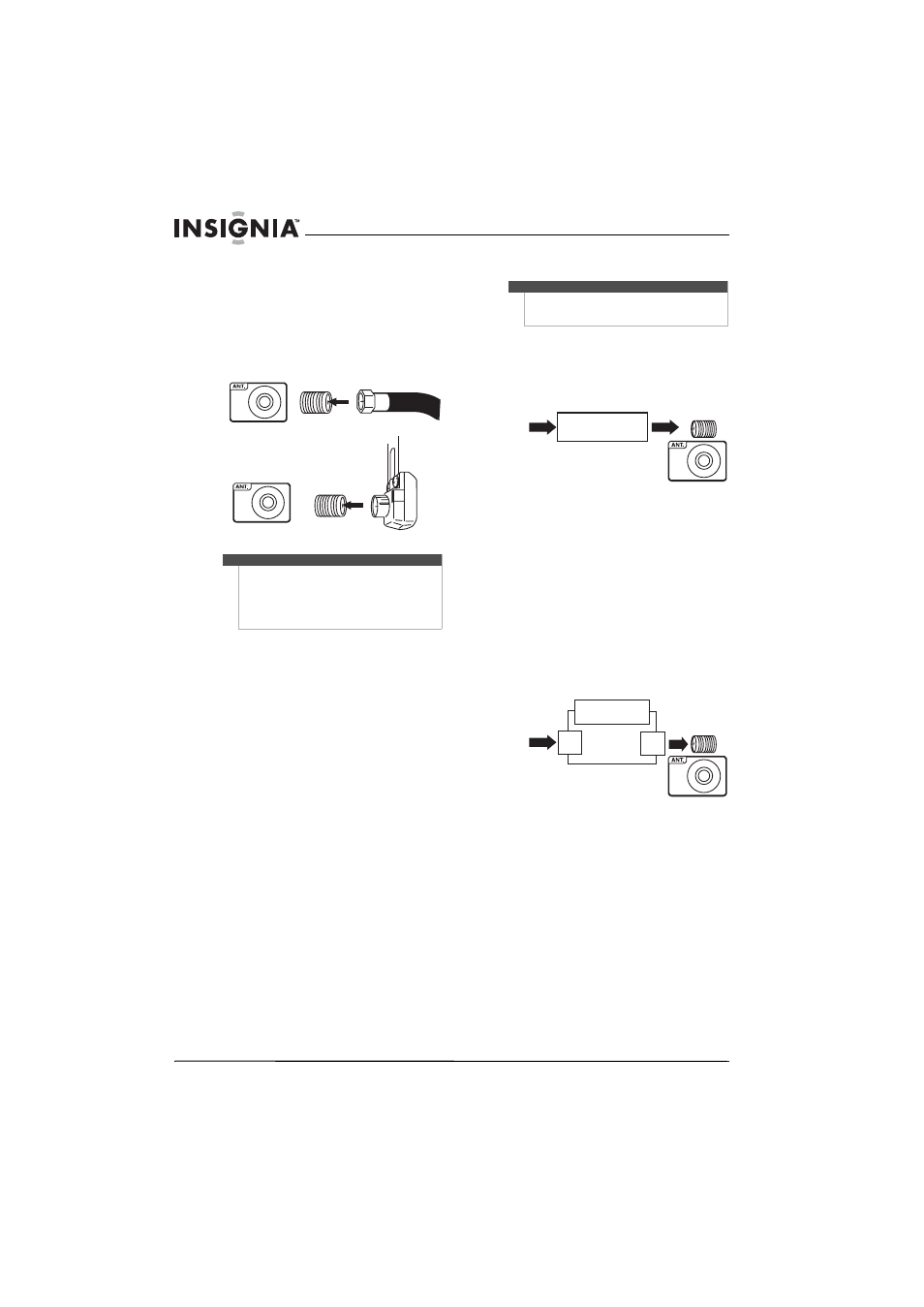

Connecting an antenna or cable TV (no box)
To connect an antenna or cable TV (no box):
• Connect one end of a 75 ohm coaxial cable to the
antenna or cable wall jack, then connect the other
end of the cable to the ANT. jack on the back of
your TV/Blu-ray combo. If your antenna cable has
a 300 ohm twin-lead connector, use a 300-75 ohm
adapter.
To connect a combination VHF/UHF antenna
with separate VHF and UHF 300 ohm twin-lead
wires:
1 Connect the UHF 300 ohm twin-lead wire to the
combiner (not supplied).
2 Connect the VHF 300 ohm twin-lead wire to the
300-75 ohm matching transformer.
3 Attach the transformer to the combiner, then
attach the combiner to the ANT. jack on the
back of your TV/Blu-ray combo.
Connecting a cable or satellite TV box
To connect a cable or satellite box:
1 Connect a 75 ohm coaxial cable to the cable or
satellite TV wall jack, then connect the other
end to the Antenna IN jack on the cable or
satellite TV box.
2 Connect a 75 ohm coaxial cable to the RF OUT
jack on the cable or satellite TV box, then
connect the other end to the ANT. jack on the
back of your TV/Blu-ray combo.
If you subscribe to a cable TV service in which basic
channels are unscrambled and premium channels
require the use of a converter/descrambler box, you
may want to use a signal splitter and an A/B switch
box (available from the cable TV company or an
electronics supply store).
To connect cable TV with a
converter/descrambler box:
• Use the following illustration to connect a
converter/descrambler box.
Set the RF switch to the A position to tune to
unscrambled channels using your
TV/Blu-ray combo remote control. Set the RF
switch to the B position to watch scrambled
channels using the converter/descrambler
controls.
Note
• Always unplug the coaxial cable when you
move your TV/Blu-ray combo.
• If you switch between antenna and cable, install
an antenna selector.
• If you need help connecting cable TV, contact
your cable TV provider.
Antenna jack
Antenna jack
75 ohm coaxial cable
300 ohm twin-lead
connector with
300-75 ohm adapter
Note
Installation methods may vary depending on the
type of cable or satellite box. Contact your cable or
satellite provider for more information.
Cable or satellite TV box
Coaxial cable from wall jack
Antenna IN RF OUT
ANT. jack
Coaxial cable
Cable or satellite box
Splitter A/B switch
Coaxial cable
ANT. jack
