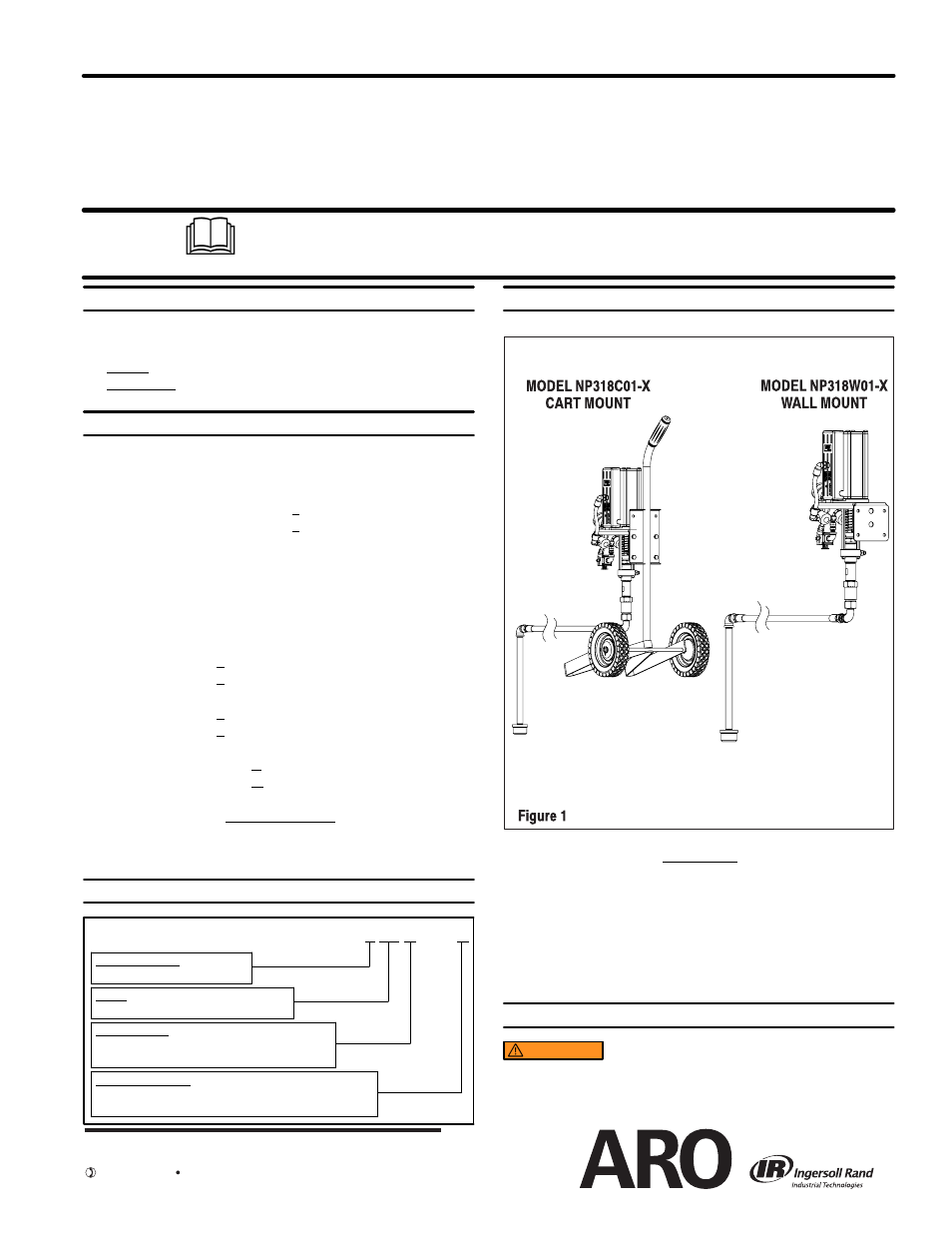

OPERATOR’S MANUAL NP318X01-X
RELEASED: 11-4-04
REVISED: 6-3-10
(REV. 03)
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
NP318C01-X and NP318W01-X
ALSO INCLUDE MANUALS: NM2318B-X-X PUMP (PN 97999-1128) & S-636 GENERAL INFORMATION (PN 97999-636).
3” STAINLESS STEEL, TWO BALL PUMP, 18:1 RATIO
CART MOUNT AND WALL MOUNT SPRAY PUMP SYSTEMS
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
D
Use only genuine ARO
R
replacement parts to assure compatible
pressure rating and longest service life.
D
637316 for repair of air motor section.
D
637394-X43 for repair of 67310-13-X43 lower pump section.
PUMP SYSTEM DATA
Model Series NP318X01-X . . . . . . . . . . . . . . . . . . .
System Type Air operated, 2-ball, double acting . . . . . . . . . . . . . .
cart or wall mounted pump
Basic Pump models NP318X01-1 NM2318B-13-C43 . . .
models NP318X01-2 NM2318B-13-L43 .
Ratio 18:1 . . . . . . . . . . . . . . . . . . . . . . . . .
Air Motor 66917 . . . . . . . . . . . . . . . . . . . . . .
Motor Repair Kit 637316 . . . . . . . . . . . . . . .
Motor Diameter 3” (7.62 cm) . . . . . . . . . . . . . . . .
Stroke 3” (7.62 cm) . . . . . . . . . . . . . . . . . . . . . . .
Air Inlet (male) 1/4 - 18-1/2 N.P.S.M. . . . . . . . . . . . . . . . .
Lower Pump End Series
models NP318X01-1 67310-13-C43 . . . . . . . . . . .
models NP318X01-2 67310-13-L43 . . . . . . . . . . .
Lower Pump Repair Kit
models NP318X01-1 637394-C43 . . . . . . . . . . .
models NP318X01-2 637394-L43 . . . . . . . . . . .
Material Outlet (male) 1/4 - 18-1/2 N.P.S.M. . . . . . . . . . . .
Weight models NP318C01-X 35.5 lbs (16.1 kgs) . . . . . . .
models NP318W01-X 21.5 lbs (9.8 kgs) . . .
PERFORMANCE
For performance data, refer to the NM2318B-X-X pump model opera-
tor’s manual.
MODEL DESCRIPTION CHART
NP 3 18 X 01 - X
MOUNT STYLE
C - Cart
W - Wall
PACKING OPTIONS
1 - UHMW-PE (upper and lower)
2 - Mineral filled PTFE (upper and lower)
AIR MOTOR SIZE
3 - 3”
RATIO
18 - 18:1
PUMP DATA
IMPORTANT
This is one of the five documents which support the pump. Re-
placement copies of these forms are available upon request.
=
NP318X01-X Model Operator’s Manual
-
General Information -- Air Operated Pumping Systems (pn 97999-636)
-
NM2318B-X-X Pump Operator’s Manual (pn 97999-1128)
-
67310-X-X Lower Pump End Operator’s Manual (pn 97999-1129)
-
6691X Air Motor Operator’s Manual (pn 97999-748)
OPERATING AND SAFETY PRECAUTIONS
WARNING READ THE GENERAL INFORMATION MANUAL
INCLUDED FOR OPERATING AND SAFETY PRECAUTIONS
AND OTHER IMPORTANT INFORMATION.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
