Page 49

39
Chapter 3 BIOS Setup
When set to [Auto], the BIOS checks to see if a PCI Express graphics
card is installed. If it detects that a PCI Express graphics card is present,
the motherboard boots up using that card. Otherwise, it defaults to the
onboard graphics processor.
On-Chip Frame Buffer Size
The field specifies the size of system memory allocated for video mem-
ory.
Boot Display
Use the field to select the type of device you want to use as the display(s)
of the system.
LVDS Panel Type
This setting specifies the resolution of the LVDS panel.
LVDS Backlight Control
This setting controls the brightness level of the LVDS panel backlight.
Integrated Peripherals

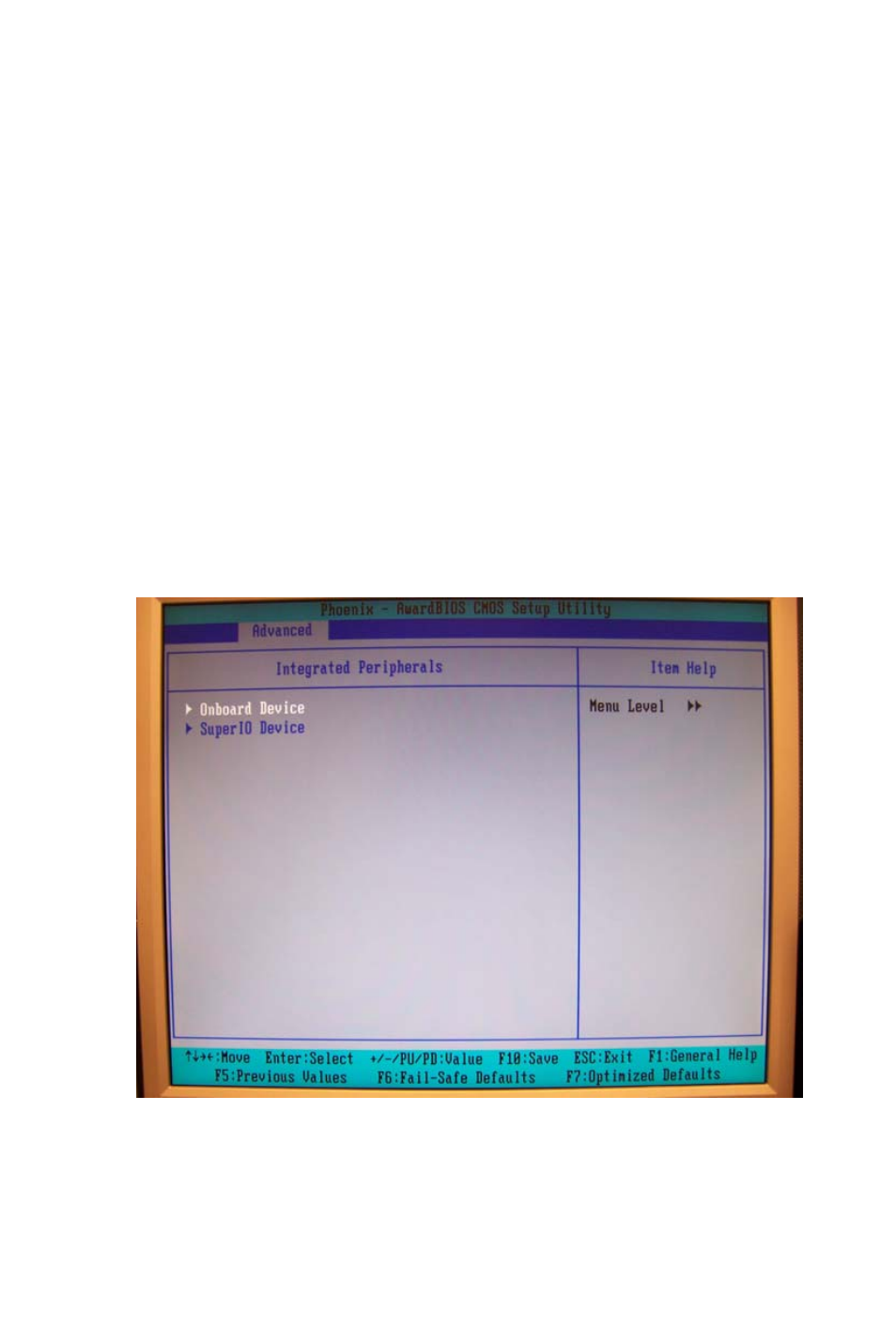

Figure 3.5: Integrated Peripherals
