AIMB-253 User Manual

16

2.6.5

Front Audio Connector: JAUD1

The JAUD1 connects to an optional audio bracket that provides extra
front panel audio IO jacks.

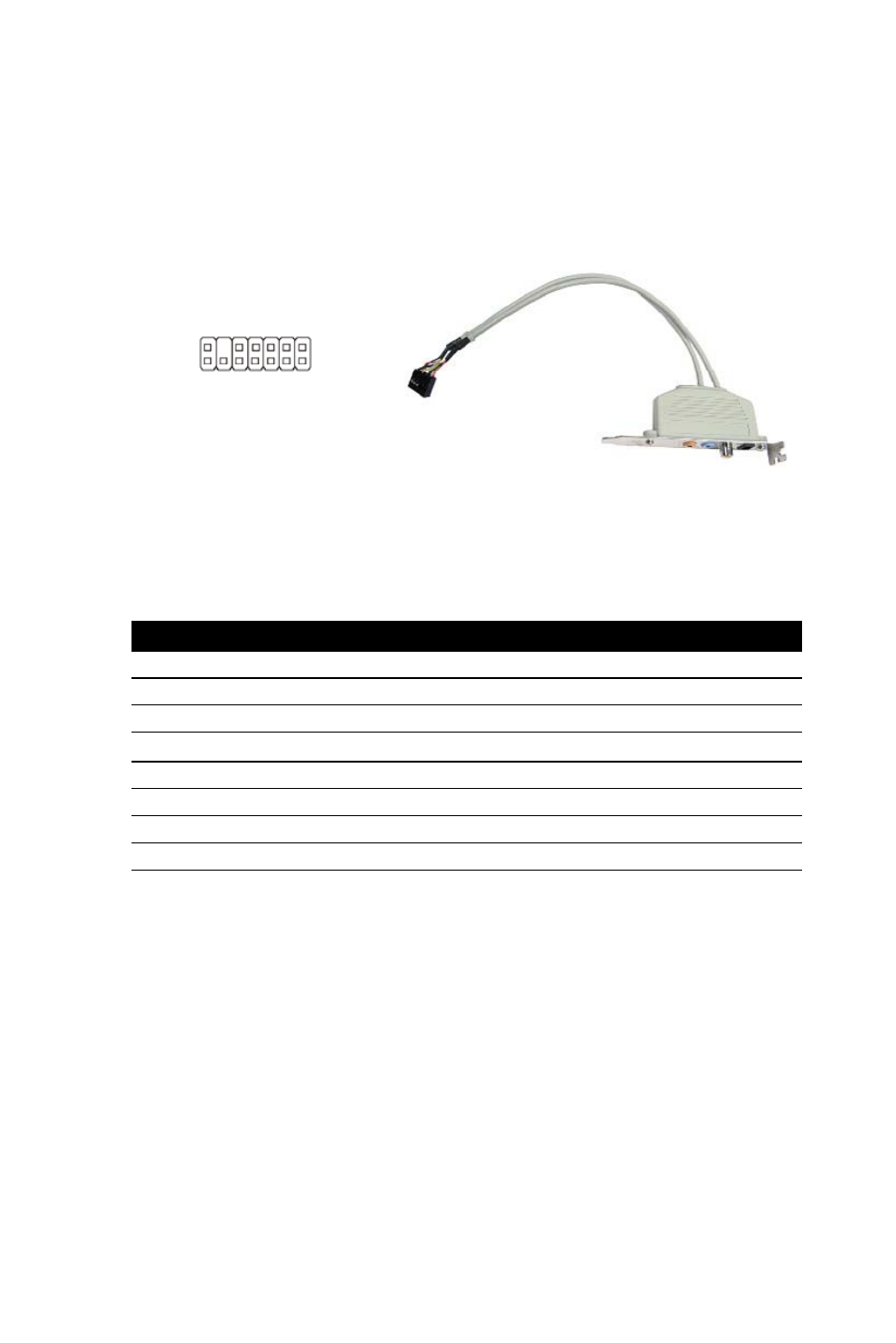

Figure 2.8: Front Audio Connector: JAUD1

Table 2.4: JAUD1 Pin Definition

PIN

Signal

PIN

Signal

1

5V_SB

2

VCC3

3

SPDF0

4

NA

5

GND

6

SPDF1

V

7

LEF_OUT

8

SURR_OUT_R

9

CEN_OUT

10

SURR_OUT_L

11

AUD_GPIO21

12

AUDIO GND

13

SIDE_L

14

SIDE_R

1

2

13

14

JAUD1

Audio Bracket

(Optional)
