15 Chapter 2 Hardware Setup
2.6.3 Serial ATA Connectors: SATA1, SATA2
SATA1~SATA2 are high-speed SATA interface ports and support SATA
data rates of 150MB/s. Each SATA connector can connect to 1 hard disk
device and is fully compliant with Serial ATA 1.0 specifications.

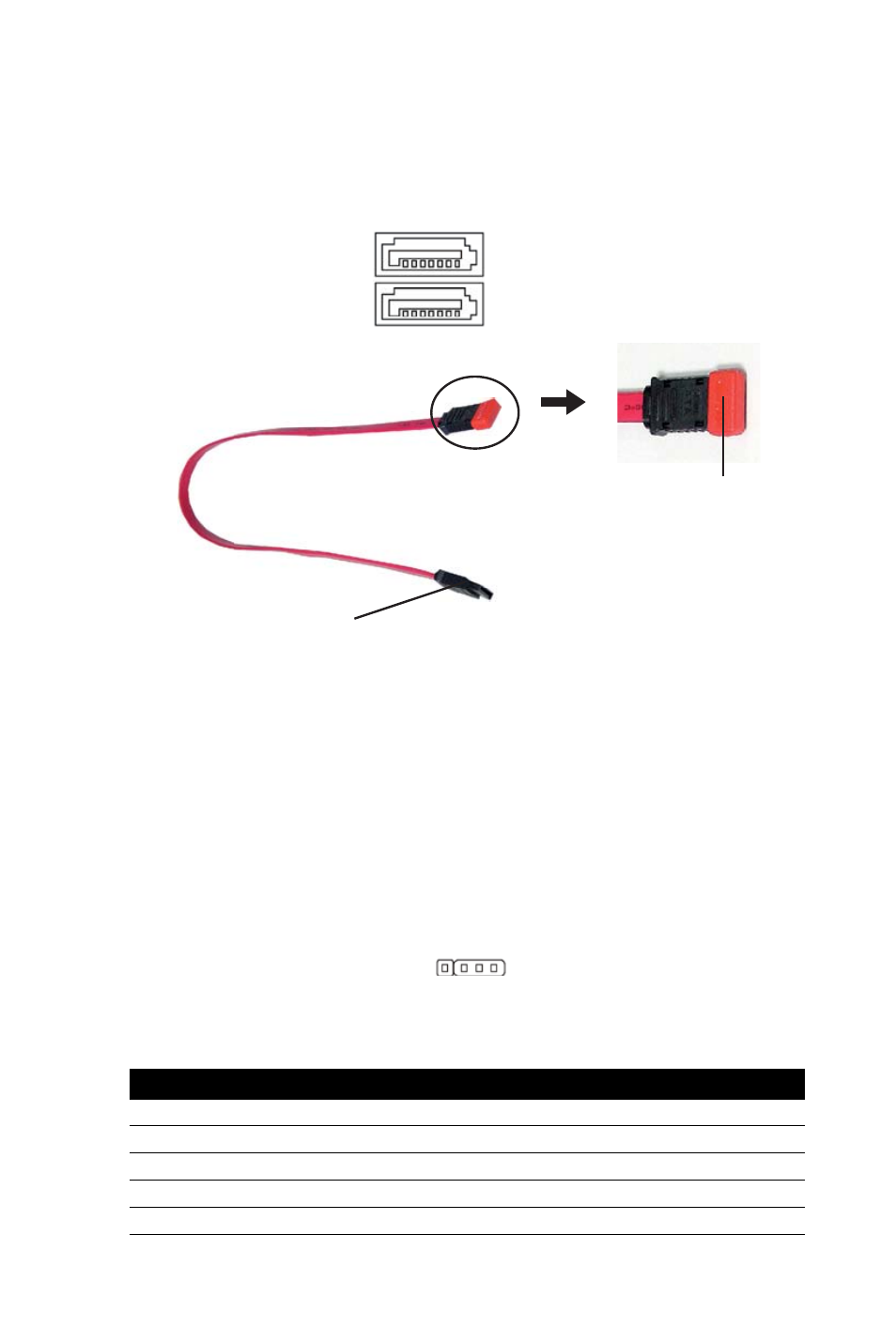

Figure 2.6: Serial ATA Connectors: SATA1, SATA2
2.6.4 Audio Amplifier Connector: JAMP1
The JAMP1 is used to connect audio amplifiers to enhance audio perfor-
mance.
Figure 2.7: Audio Amplifier Connector: JAMP1
Note Please do not fold the Serial ATA cable into 90-degree angle.
Otherwise, data loss may occur during transmission.
Table 2.3: JAMP1Pin Definition
PIN Pin Definition
1 AMP_L-
2 AMP_L+
3 AMP_R-
4 AMP_R+
SATA1
SATA2
Connect to SATA1/2
Take out the dust cover and
connect to the hard disk
devices
Serial ATA cable
1
JAMP1
