Chapter 2 Hardware Setup
•

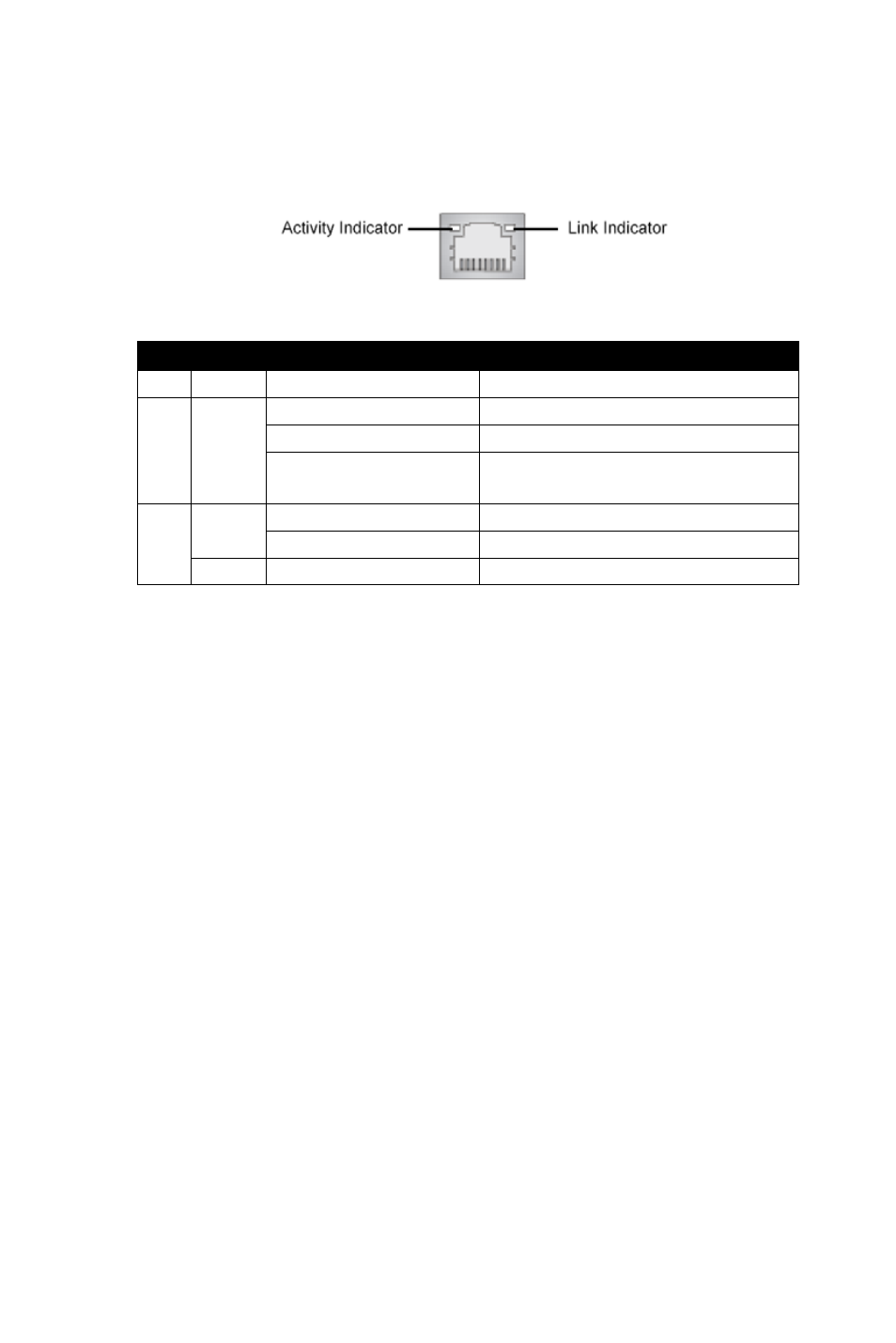

LAN (RJ-45) Jack
The standard RJ-45 jack is for connection to single Local Area Network
(LAN). You can connect a network cable to it.
Table 2.2: LAN (RJ-45) Jack
LED Color
LED State
Condition
Left Orange
Off
LAN link is not established.
On (steady state)
LAN link is established.
On (brighter & pulsing) The computer is communicating
with another computer on the LAN.
Right
Green
Off
10 Mbit/sec data rate is selected.
On
100 Mbit/sec data rate is selected.
Orange On
1000 Mbit/sec data rate is selected.
