23 Chapter 2 Hardware Setup
2.6.11 Parallel Port Header: JLPT1
The mainboard provides a 26-pin header for connection to an optional
parallel port bracket. The parallel port is a standard printer port that sup-
ports Enhanced Parallel Port (EPP) and Extended Capabilities Parallel
Port (ECP) mode.

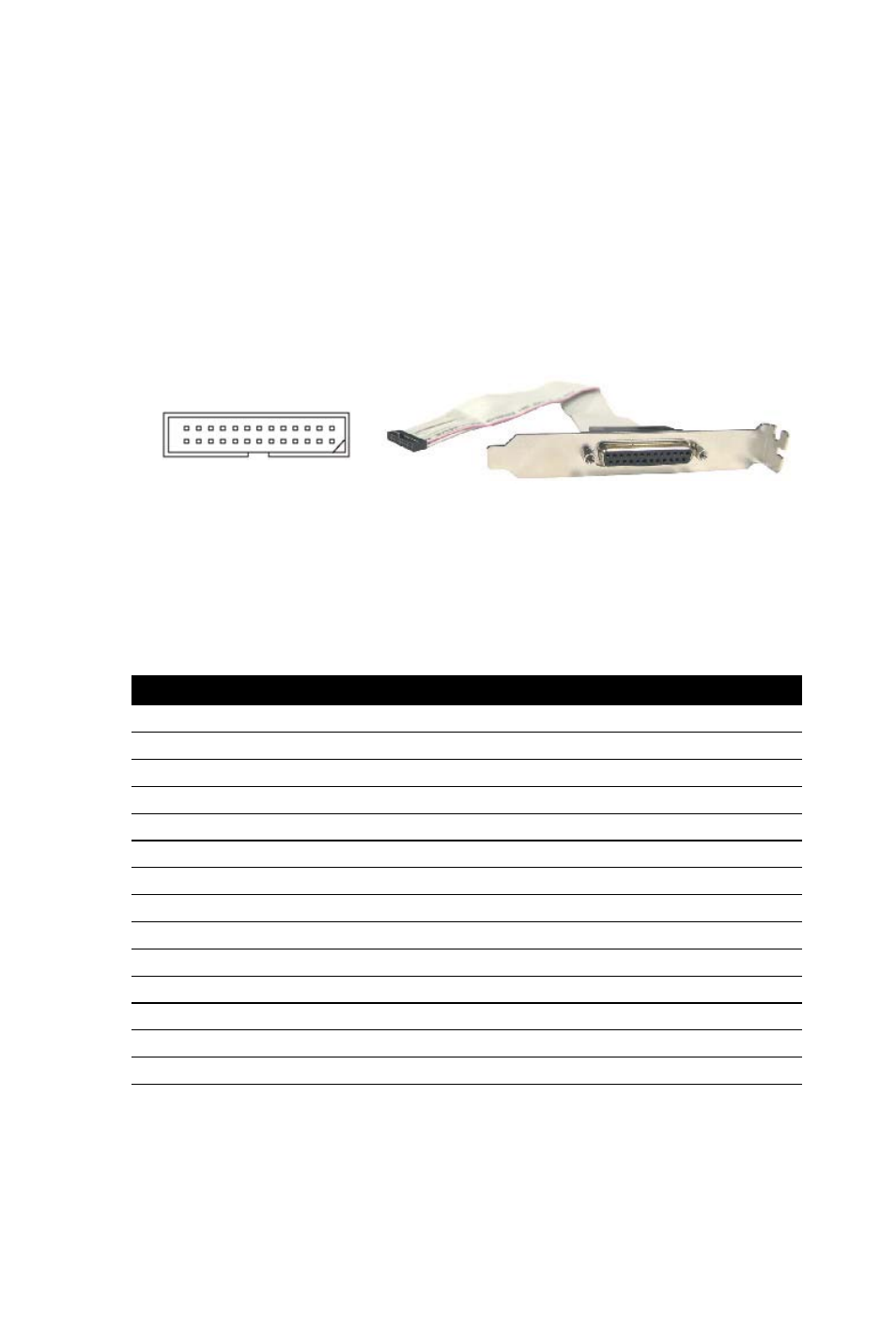

Figure 2.14: Parallel Port Header: JLPT1
Table 2.9: J3 Pin Definition
PIN Signal PIN Signal
1 RSTB# 2 AFD#
3 PRND0 4 ERR#
5 PRND1 6 PINIT#
7 PRND2 8 LPT_SLIN#
9 PRND3 10 GND
11 PRND4 12 GND
13 PRND5 14 GND
15 PRND6 16 GND
17 PRND7 18 GND
19 ACK# 20 GND
21 BUSY 22 GND
23 PE 24 GND
25 SLC 26 GND
2
1 26
25
JLPT1
Parallel Port
Bracket (Optional)
