19

Chapter 2 Hardware Setup

2.6.8

Serial Port Connector: J2

The J2 is a RS232/422/485 COM port pinheader that connects to serial
devices.

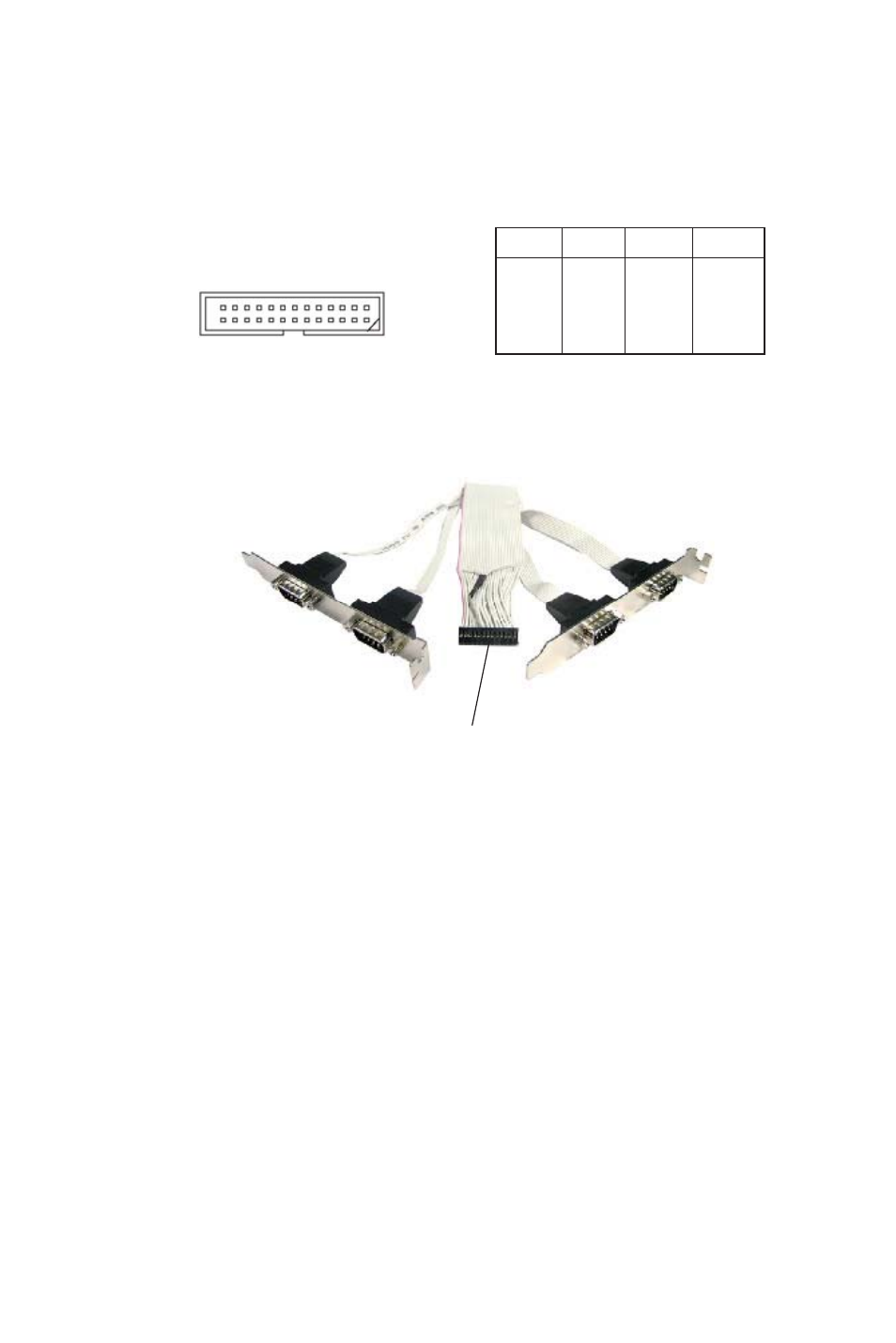

Figure 2.11: Serial Port Connector: J2

J2

1

25

2

26

RS232

RS422

RS485

COM2

X

V

V

COM3

X

V

V

COM4

V

X

X

COM5

V

X

X

V = supported

X = not supported

Connect to J2

Serial Port Bracket

(Optional)

COM2

COM3

COM4

COM5
