Installation and User Manual
1.3.3
EX RT Transformer Module

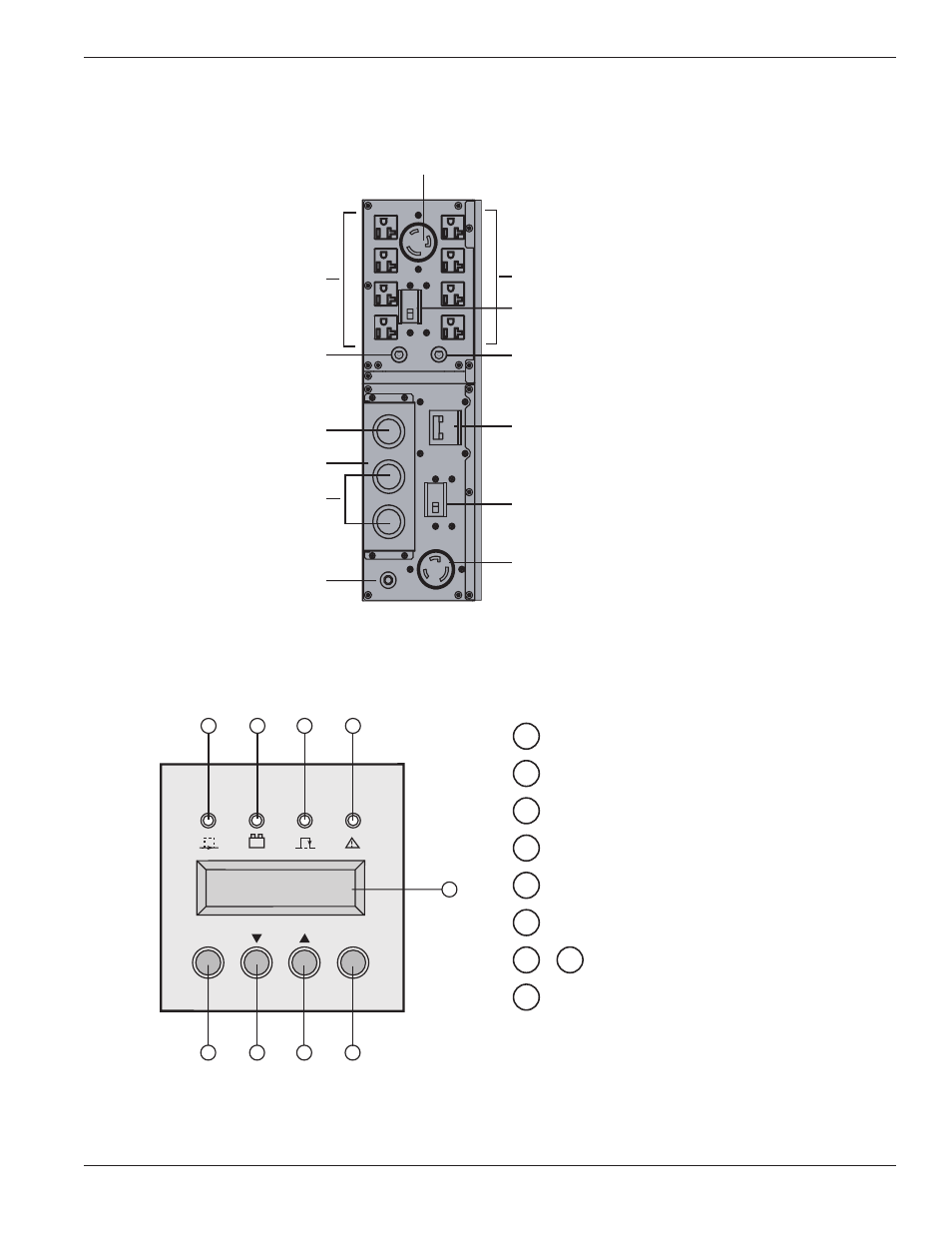

Figure 1-5: Rear Panel of the optional Transformer Module. (PN 86003)
1.4
Display and Control Panel
Figure 1-6: View of typical control panel interface.
Introduction
1 — 7
86-86000-00 A01
Main Output Circuit Breaker
Load 2: 4 NEMA 5-15/20R
Load 3 Circuit Breaker
Load 2 Circuit Breaker
Load 1: 1 NEMA L6-30R
Load 1 Circuit Breaker
Transformer Protect
Breaker
Load 4: 4 NEMA 5-15/20R
Load 4 Circuit Breaker
Transformer I/O Box
AC Input
AC Output
Load 3: 1 NEMA L6-30R
OFF
ON
E X 1 1 R T
15
16
19
17
18
20
21
22
23
Load protected / On-line Operation LED.
Operation on battery LED.
Operation on bypass LED.
Fault LED.
Alphanumeric display.
UPS OFF button.
Function buttons (scroll up / scroll down).
UPS ON button (or function button in personalization
mode).
23
22
21
20
19
18
17
16
15
