51D0528 5
LX Series Direct Vent Gas Fireplace pRoDuct FeAtuReS
• This appliance has been certified for use with
either natural or propane gas. See appropriate data
plates.
• This appliance is not for use with solid fuels.
• The appliance is approved for bedroom or bedsitting
room installations.
• The appliance must be installed in accordance with
local codes if any. If none exist use the current instal-
lation code. ANSI Z223.1/NFPA 54 in the USA, CSA
B149 in Canada.
• This appliance is mobile home approved.
• The appliance must be properly connected to a vent-
ing system.
pRoDuct SpecIFIcAtIoNS
OFF
FP2710
LX controls
Off/Pilot/On
Knob
Optional Remote
Receiver

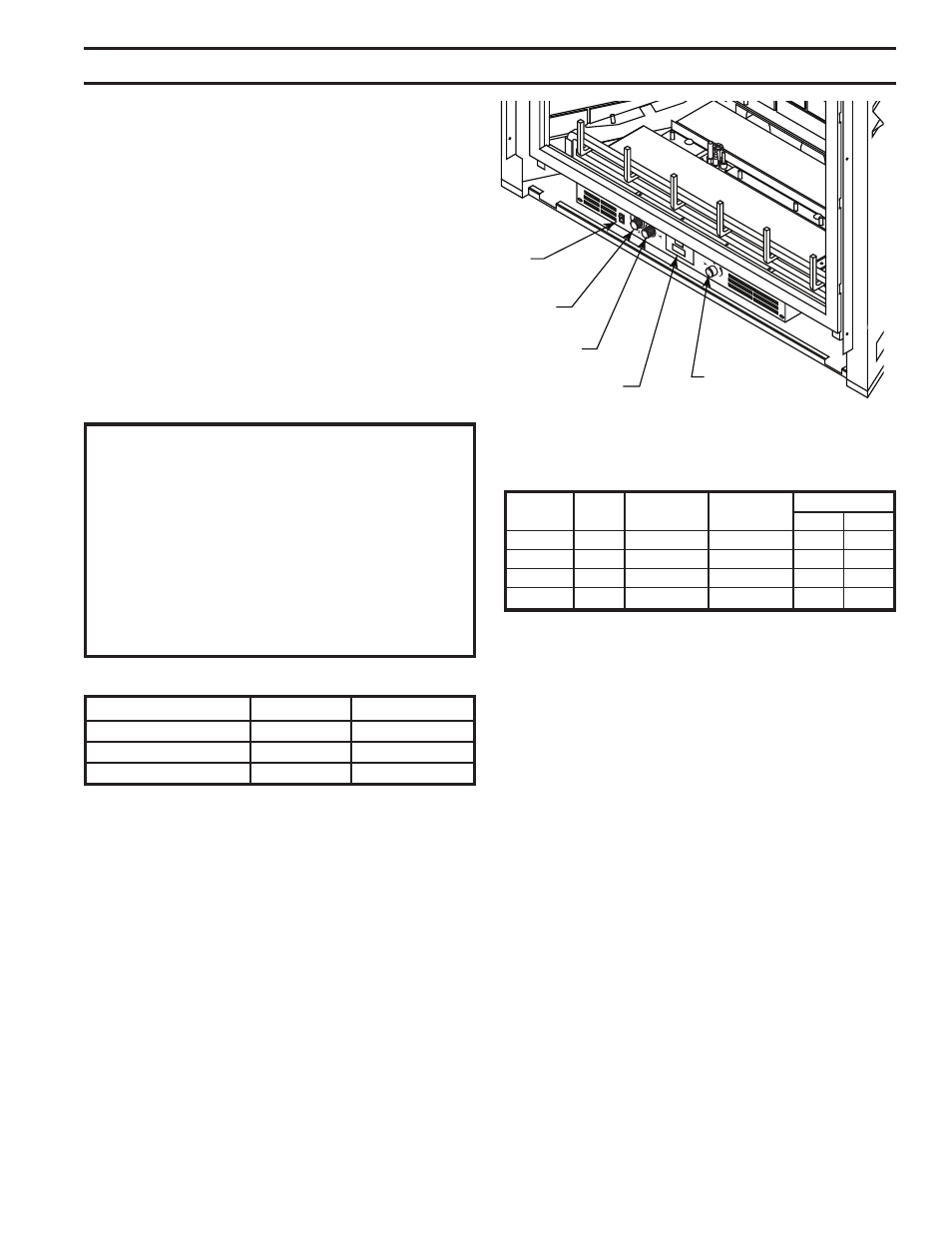

Figure 1 -
LXDV Fireplace Controls
Hi/Lo Knob
Blower Control
On/Off/
RS Switch
FP2710
GAS pReSSuReS
hIGh eLeVAtIoNS
Input ratings are shown in BTU per hour and are certi-
fied without deration for elevations up to 4,500 feet
(1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1/NFPA 54 and/or local codes having
jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at eleva-
tions above 4,500 feet (1,370 m).
Natural Propane (LP)
Inlet Minimum 4.5” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
Max.Input Min. Input orifice Size
Model Fuel Btu/h Btu/h Front Rear
LX32NV Nat. 36,000 26,000 #46 #43
LX32PV LP 36,000 22,000 3/64" #55
LX36NV Nat. 44,000 30,000 #41 #38
LX36PV LP 44,000 32,000 #55 #53
GAS SpecIFIcAtIoNS & oRIFIce SIZe
