Lx series direct vent gas fireplace log placement, Lg808 lx left center log – Monessen Hearth LEXINGTON LX32DV User Manual
Page 29
51D0528
29
LX Series Direct Vent Gas Fireplace
LoG pLAceMeNt

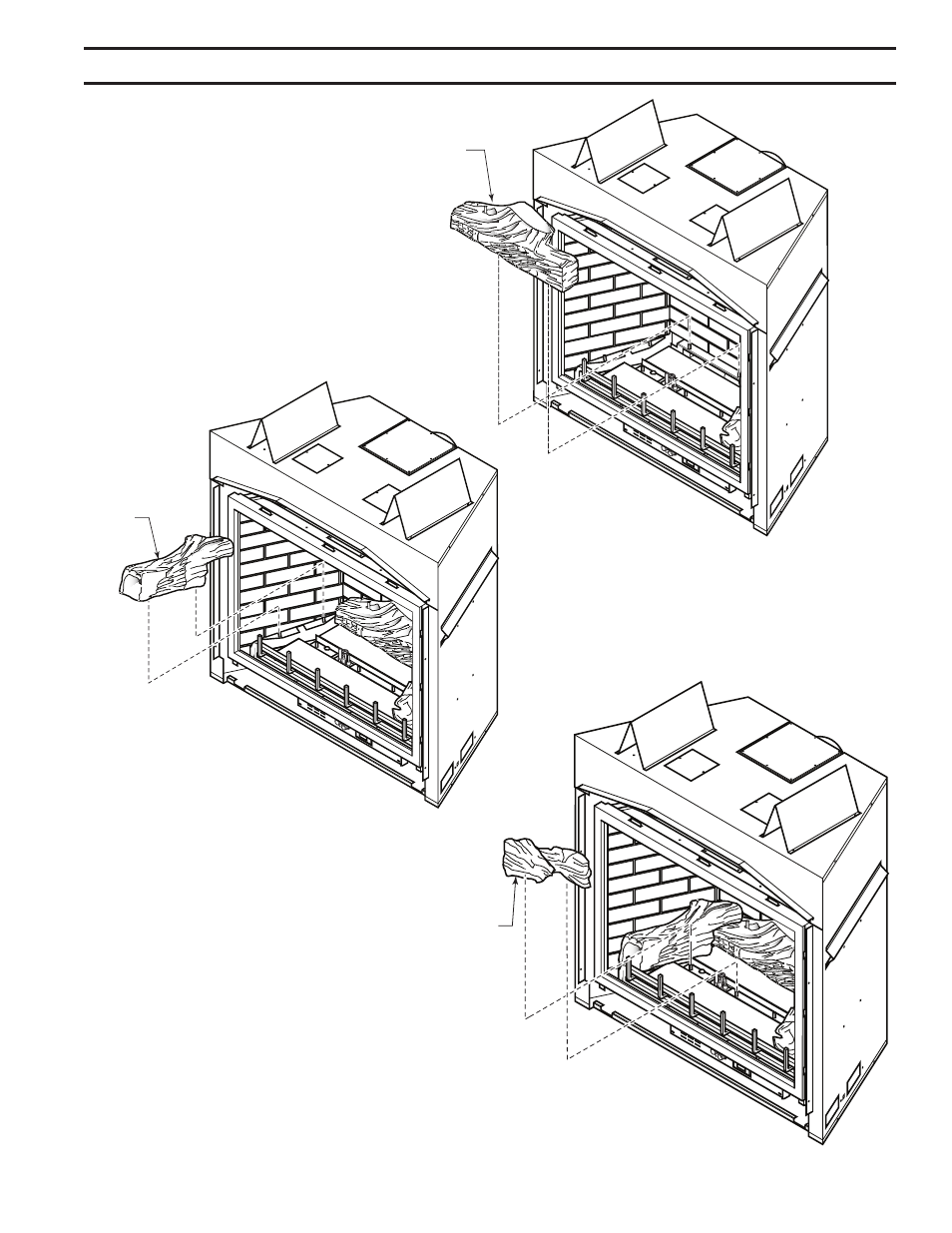

4. Place rear log (#1) on two pins against back
side of firebox. Figure 39
LG804
LX rear log
Rear Log #1
LG804
Figure 39
LG803
LX left rear log
Bottom Left
Log #2
LG803
Figure 40
5. Place bottom left log (#2)
on two pins against left
side of firebox. Figure 40
LG808
LX Left center log
Left Mid
Log #6
LG808
Figure 41
6. Place left mid log (#6) on two left
pins on burner assembly. Figure
41
