LX Series Direct Vent Gas Fireplace VeNtING INStALLAtIoN
this fireplace must be vented to the outside. the venting system must
NeVeR be attached to a chimney serving a separate solid fuel burning
appliance. each gas appliance must use a separate vent system. Do not
use common vent systems.
W
ARNING
coMBuStIBLe cLeARANceS FoR VeNt pIpe
W
ARNING
horizontal sections of this vent system require a minimum of 3" clearances
to combustibles at the top of the flue and 1" clearance at the sides and
bottom until the flue penetrates the outside wall. A minimum 1" clearance
all around the flue is acceptable at this point of penetration.
Vertical sections of this vent system require a minimum of 1" clearance to
combustibles on all sides of the pipe.
1"
*3"
**1"
**1"
35(6 ”
(911 mm)
FP2713
vent clearance

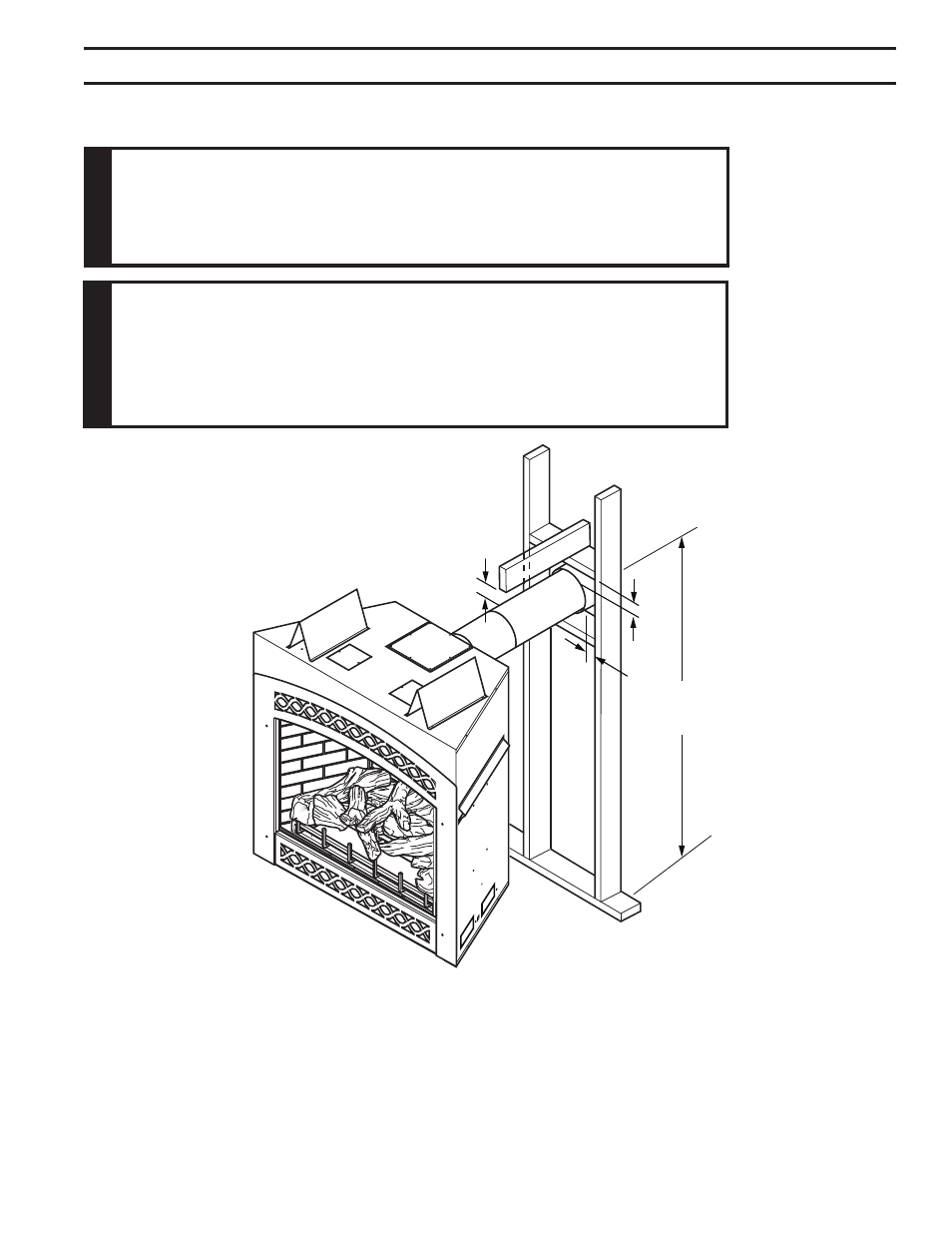

Figure 10 -
Combustible Clearances for Vent Pipe
* A minimum of 3" clearance to the top is
required along horizontal length until flue pipe
penetrates outside wall.
** A minimum 1" clearance to combustibles
permitted all around flue at outside wall
