Page 30
30
51D0528
LX Series Direct Vent Gas Fireplace
LG809
LX right mid log
LoG pLAceMeNt
LG807
LX top right log
Right Mid Log
#7
LG809

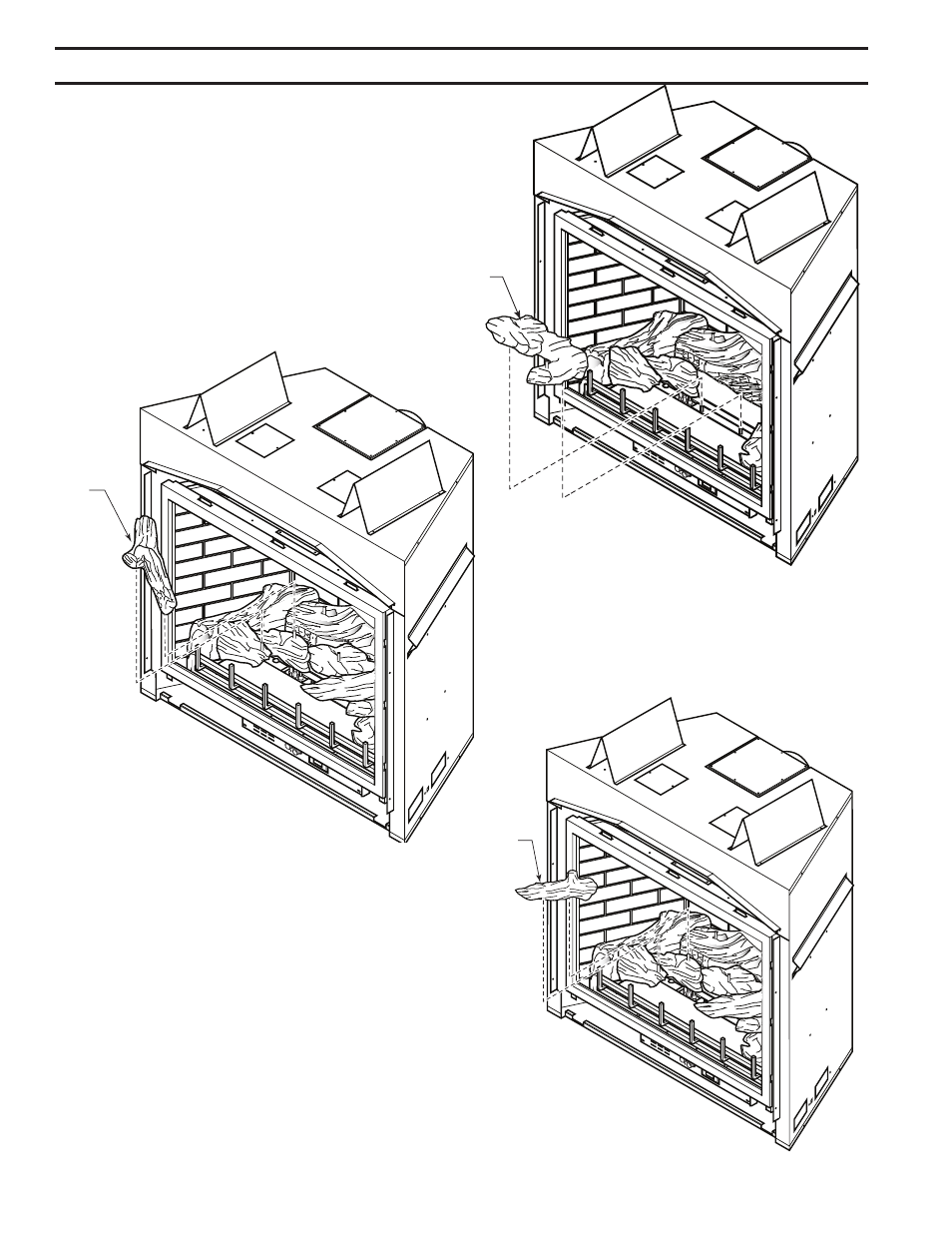

Figure 42
7. Place right mid log (#7) on two
right pins on burner assembly.
Figure 42
LG806
LX Top left log
Top Left
Log #4
LG806
Figure 43
8. Place top left log (#4) on two
pins on left mid log. Figure
43
Right Top
Log #5
LG807
Figure 44
9. Place right top log (#5) on two pins
on middle left log. Figure 44
