36 51D0528
LX Series Direct Vent Gas Fireplace opeRAtING INStRuctIoNS
OF
F
PILO
T
ON
PILOT
FP1937
control knob on

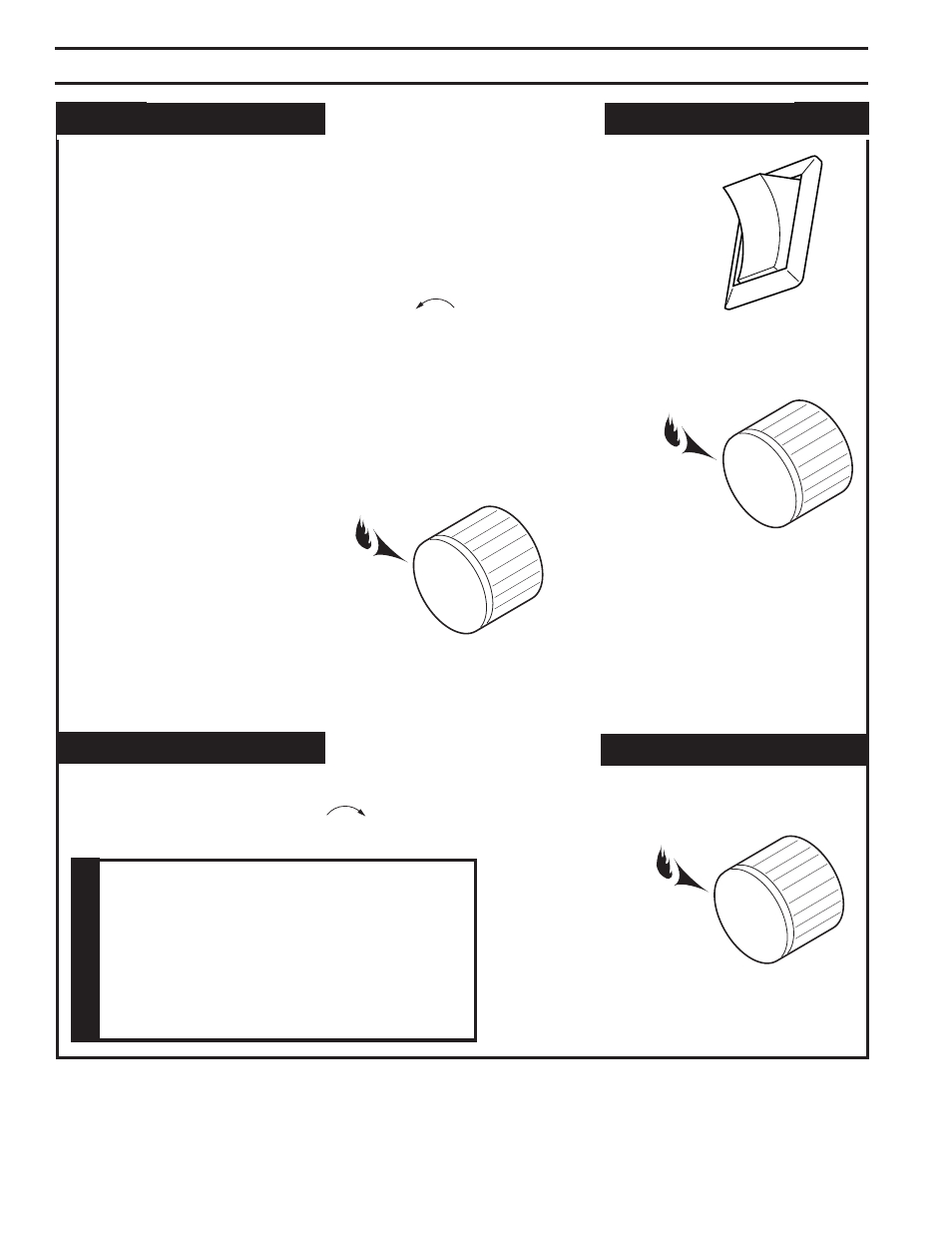

MAIN BuRNeR SWItch
The “ON/OFF/RS” switch for the main burner can be found behind door of the
fireplace. This switch allows you to turn on and to turn off the main burner without
using the gas valve knob. Make sure the button is in the “ON” position to light
the main burner. Figure 50
LIGhtING the BuRNeR
Depress and turn the knob counterclockwise to the “ON” position. Figure
51. It will take less than four (4) seconds for the burner to ignite.
pILot poSItIoN
Depress and turn knob to pilot position to keep burner off while maintaining the
pilot light. Figure 52
Depress and turn knob clockwise to “OFF” position. Figure 53
to tuRN oFF GAS
Figure 52 -
Pilot Position
LIGhtING BuRNeR
PILOT
OF
F
PILOT
O
N
PILOT
OF
F
P
IL
O
T
ON
FP1935
control knob pilot
OFF
ON
RS
Figure 53 -
Off Position
W
ARNING
the control is fitted with a safety interlock
device which prevents unsafe ignition of the
pilot burner after the control knob has been
turned to the oFF position. the knob may
only be rotated back to the pILot position
after the safety magnet has been released
(approximately 60 seconds). you will hear a
“click” when the safety magnet releases.
Figure 51 -
On Position
Figure 50 -
On/Off/RS Switch
