SBG940 User Guide
7

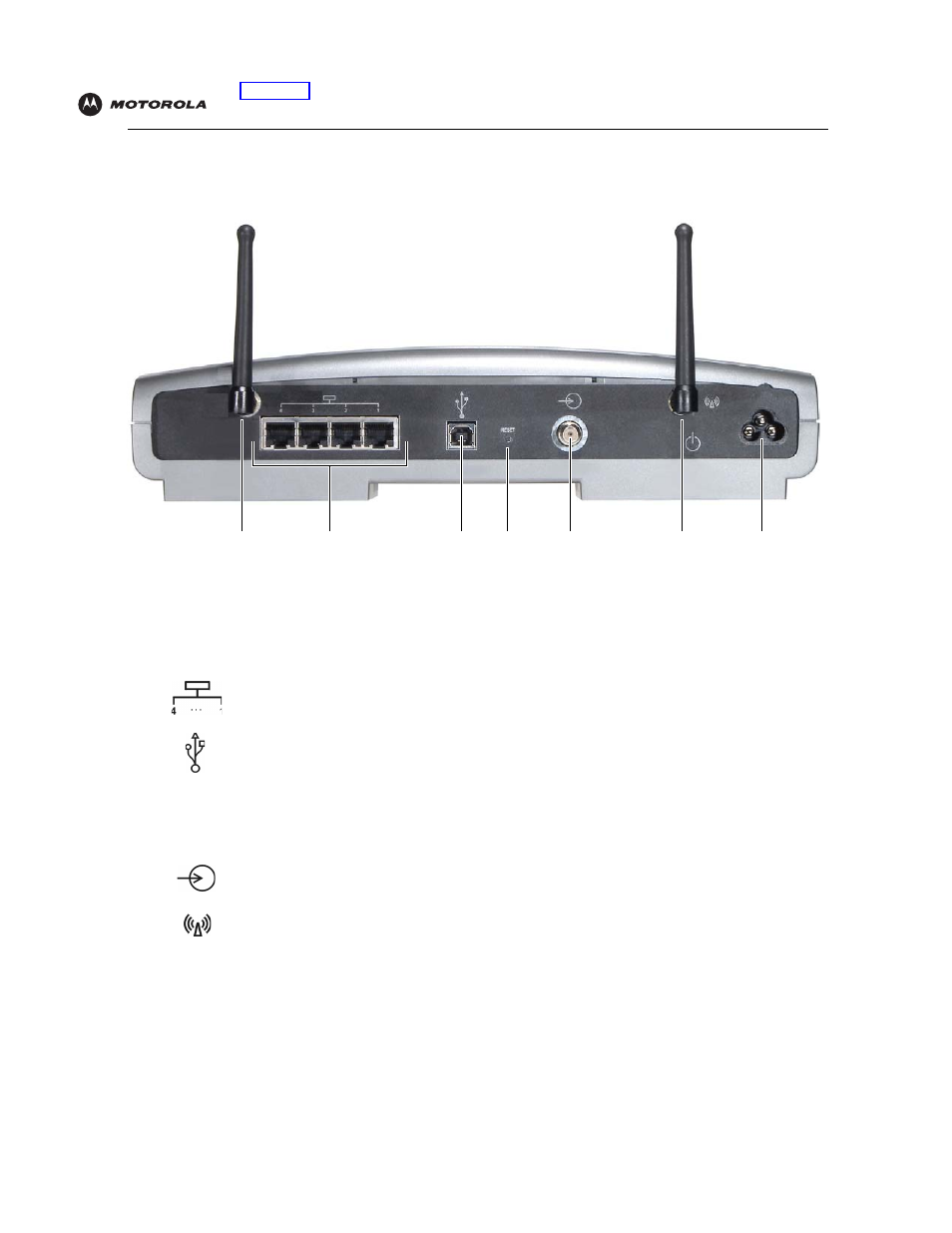

Rear Panel
The rear panel provides cabling connectors, status lights, and the power receptacle:
Key
Item
Description
1
An adjustable, but non-removable antenna. Do not attempt to force this antenna off the unit.
2
Use any Ethernet port to connect an Ethernet LAN cable with RJ-45 connectors to an
Ethernet-equipped computer, hub, bridge, switch or Xbox or PlayStation
®
2 gaming console.
3
For Windows only, use the USB port for
Connecting a PC to the USB Port
. You cannot connect the
SBG940 USB port to a Macintosh or UNIX
®
computer.
4
RESET
If you experience a problem, you can push this recessed button to restart the SBG940 (see
“
”). To reset all values to their defaults, hold down the button for more than five
seconds
.
Resetting may take 5 to 30 minutes because the SBG940 must find and lock on the
appropriate communications channels.
5
Use the cable connector to connect to the
outlet.
6
Removable, adjustable antenna. If necessary, contact your cable provider about obtaining an optional
Motorola wireless
high
antenna to increase WLAN performance and coverage.
7
Use the AC connector to connect to the AC power outlet.
2
3
4
5
6
7
1
