SBG940 User Guide 6

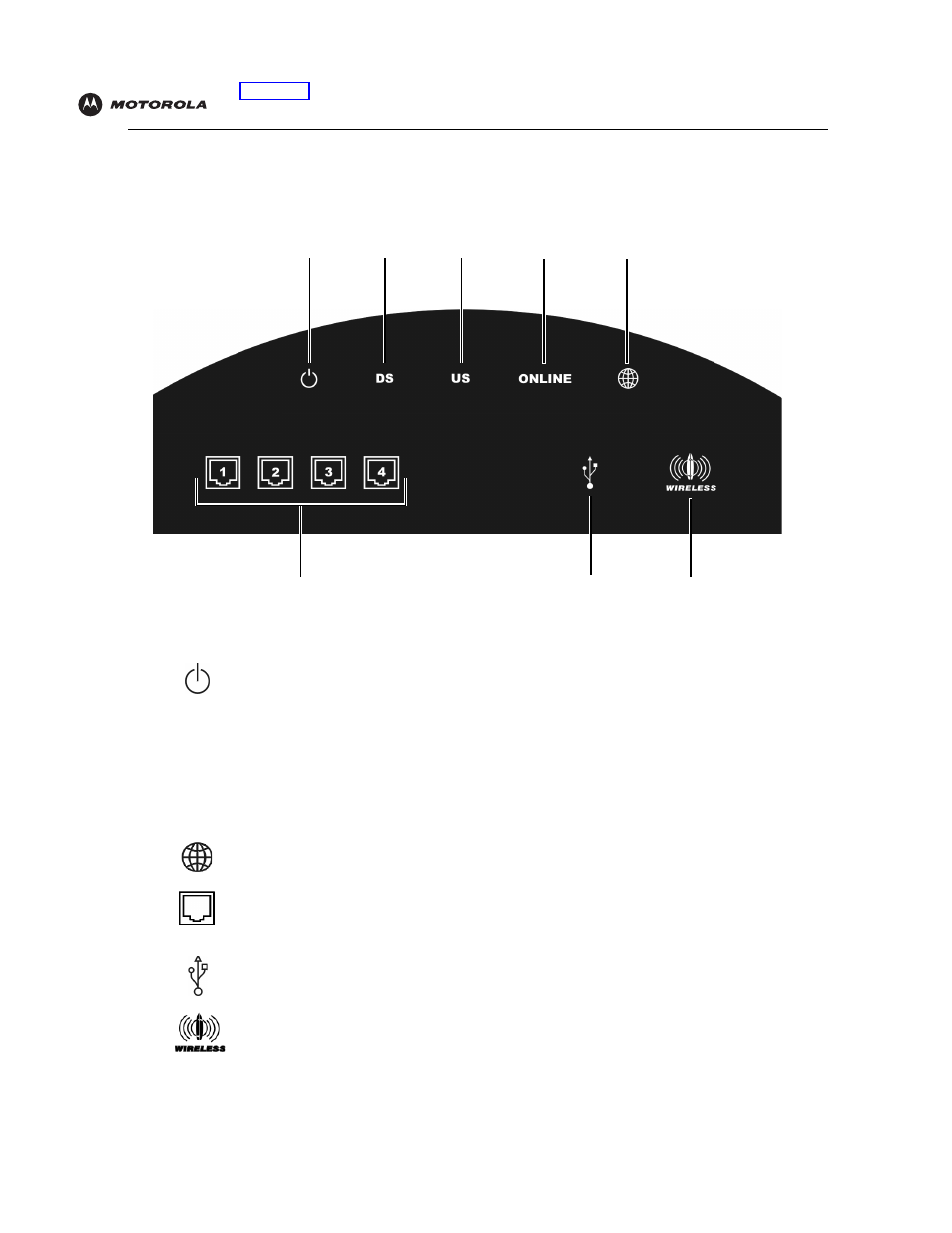

Front Panel
The front panel provides indicator lights. The display is dark unless there is a connection or activity on an
interface:
Key Light Flashing On
1 Never flashes The AC power is connected properly
2 DS Scanning for a receive ( downstream )
channel connection
The downstream channel is connected
3 US Scanning for a send ( upstream) channel
connection
The upstream channel is connected
4 ONLINE Scanning for a network connection The startup process is complete and the SBG940
is online
5 Transmitting or receiving data over
the Internet Is never lit solid
6 Ethernet activity on the port (1 to 4) There is a connection to the port (1 to 4):
• Green for 100Base-T
• Yellow for 10Base-T
7 USB activity Lights green if there is a proper USB connection
8 Wireless activity The wireless interface is on (Enable Wireless
Interface is selected on the
Wireless > NETWORK
Page in the SBG940 Setup Program)
1 2 3 4
6 8
5
7
