Minolta Magicolor 2200 - Manual (Page 157)

BuzzBox 149
What's in the Kit?
The BuzzBox kit contains the following items:
BuzzBox
Interface box
RJ-11 cable
Power adapter
Adhesive-backed clips
Installing BuzzBox
1
If you have a cable attached to the printer’s parallel port, unplug it from the printer.
2
Attach one end of the parallel cable on the interface box to the printer’s parallel port.
The BuzzBox’s ribbon
cable is designed to be
directly attached to the
printer’s parallel port,
not to an adapter or an
additional cable.
3
Use the included RJ-11
cable to connect
BuzzBox to the interface
box.
4
Choose a good location
on the printer to mount
the interface box. Make
sure that the unit does not
interfere with paper
exiting the printer.
cover any vents, doors,
connectors, or labels.
cause the ribbon cable
to stretch or twist.

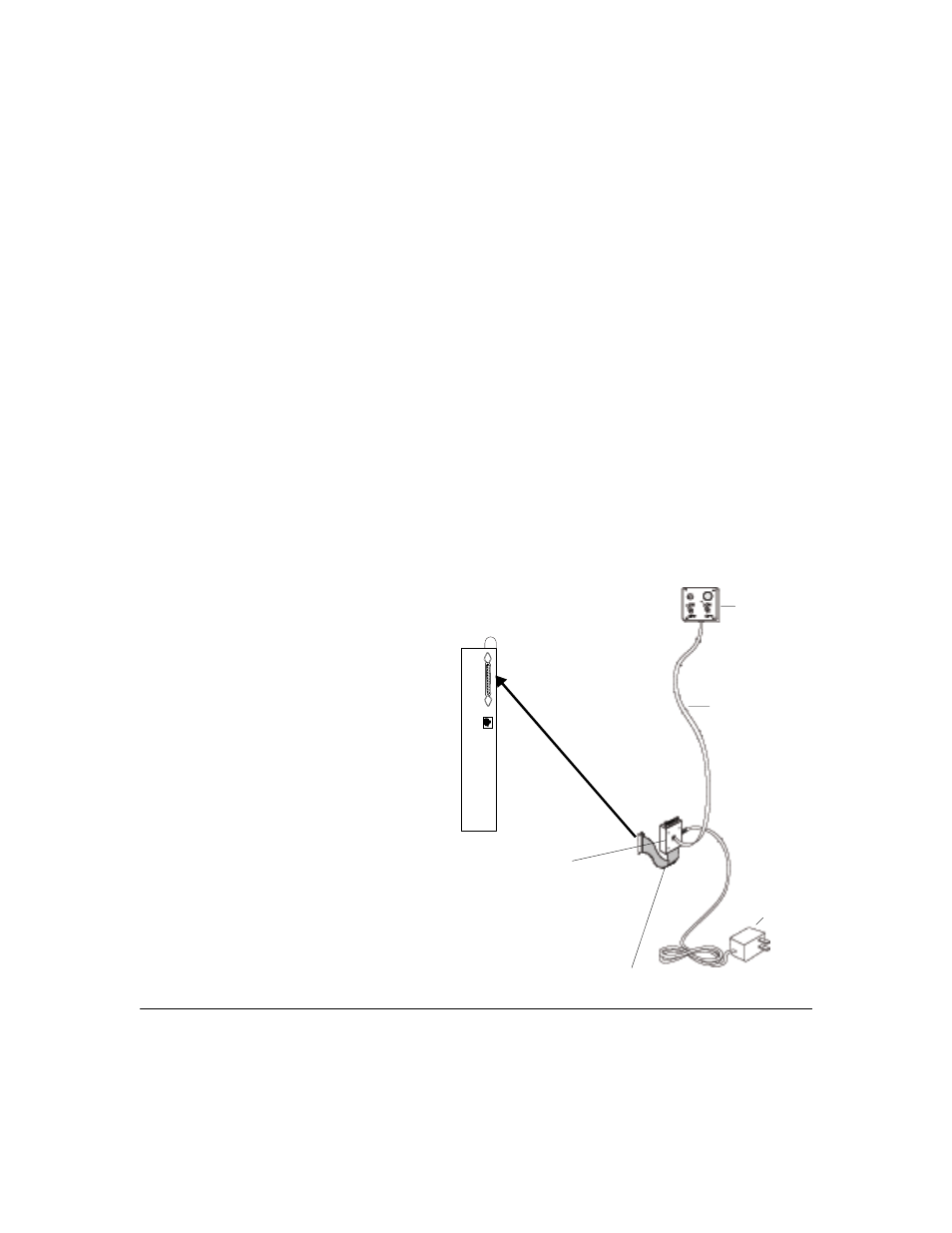

BuzzBox
Adapter
Interface
Box
Ribbon Cable
RJ-11 Cable
