3. DVR HDD PC Viewer
A. User Interface
The default page of the application is DVR HDD PC Viewer. The user interface is shown in
Fig.1.
DVR HDD PC Viewer Select Button
DVR HDD Select Button Set
Application Option Button
Screen
Valid
Stream
Region
Indicator
Positioning
Slider Bar
Slider Bar
Zooming
Button
Stream Time
Display
Direct Access
Input
NTSC/PAL
Set Button
Status Bar
Fast Rewind
One Frame Backward
Play
Backward
Pause Play
One Frame Forward
Fast Forward
Channel
Selection
Volume Control
Play Captured
Stream Button
Capture Current
Stream Button
[MYS]
Capture Current
Screen Button
[BMP]

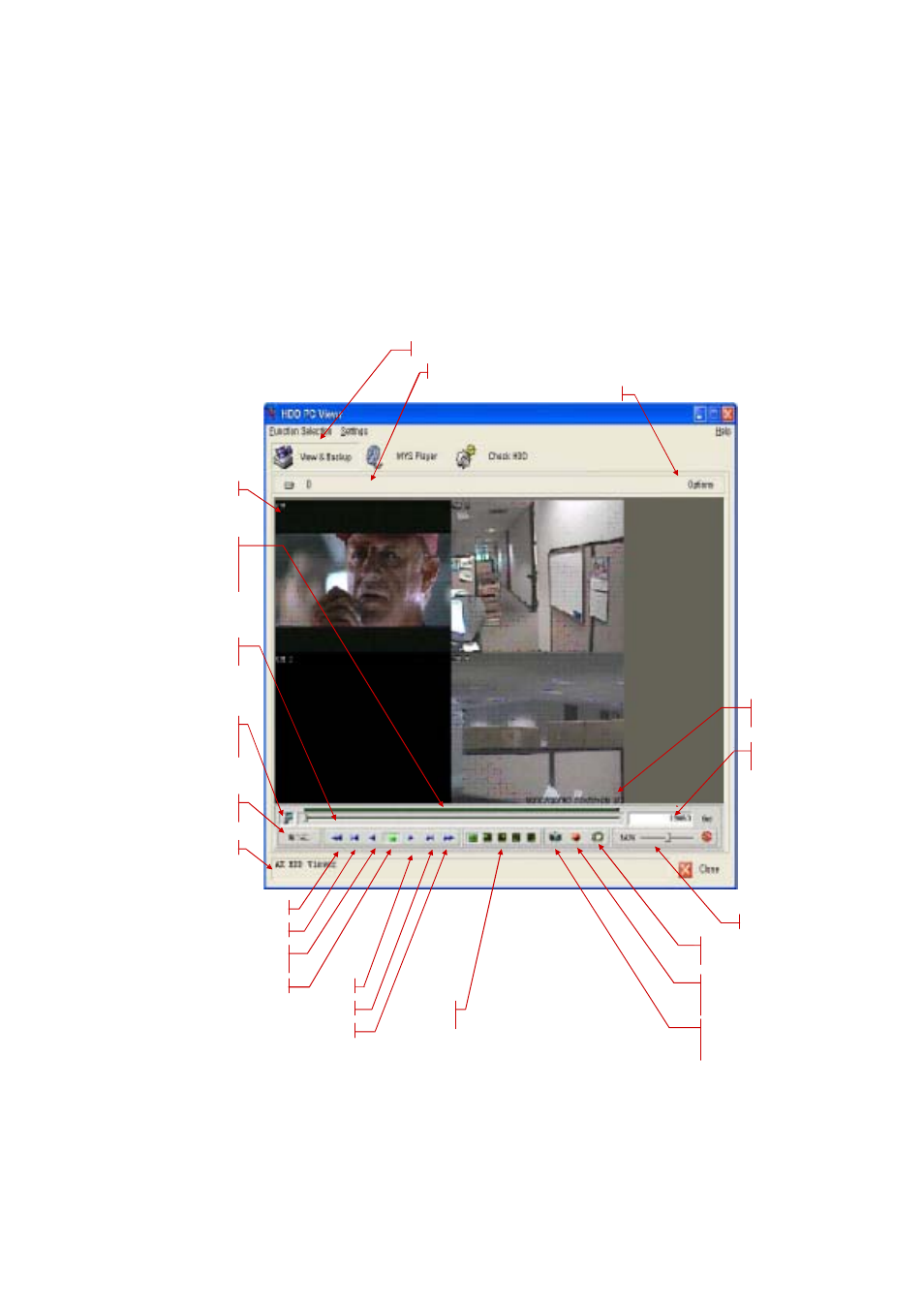

Fig.1. DVR HDD PC Viewer User Interface
