19

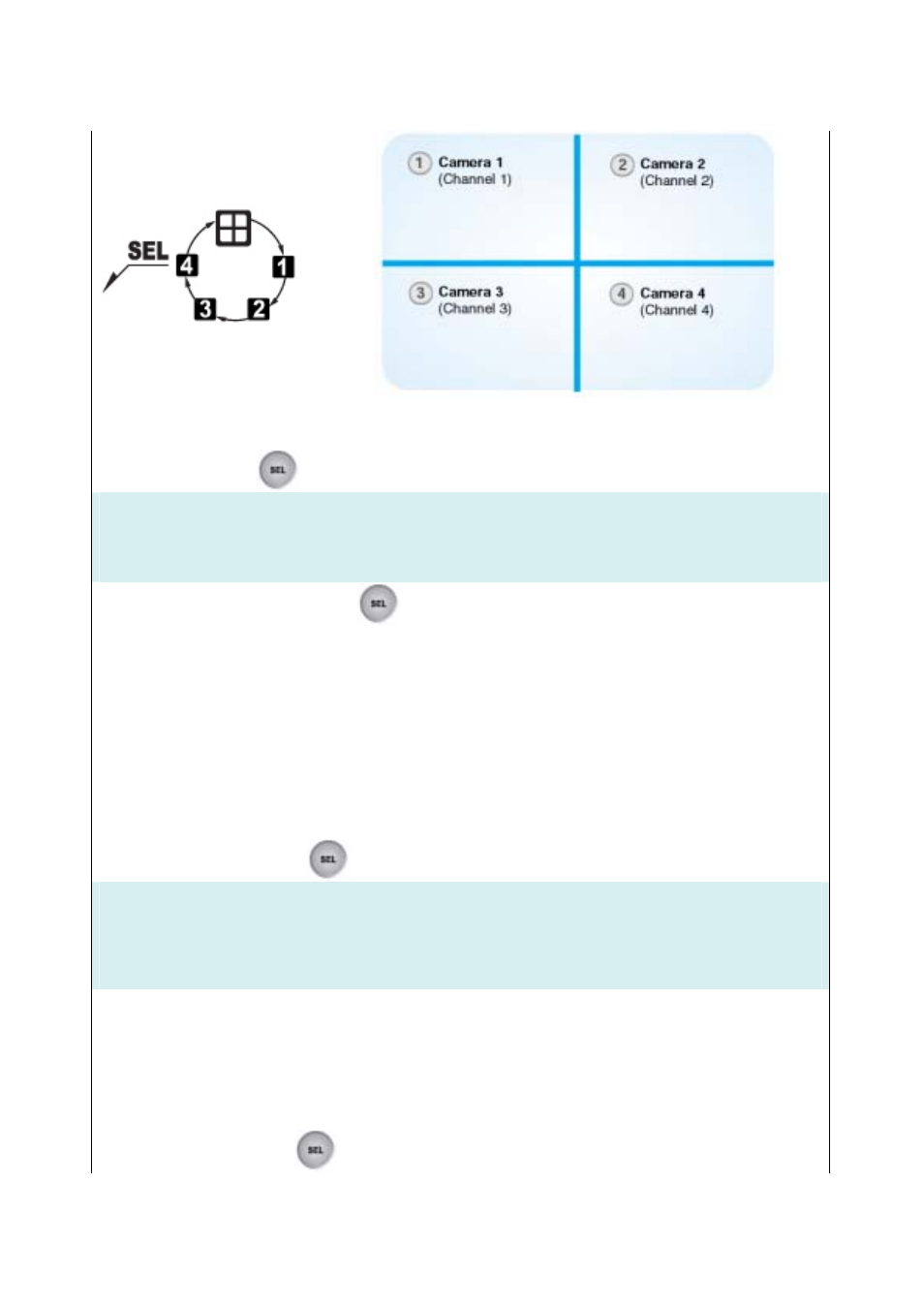

RECORD SELECT
To select cameras for recording, navigate to RECORD SELECT.
Then, use the buttons on the DVR’s front panel to select a camera for recording.
MAIN MENU
CAMERA SELECT 1 2 3 4
> RECORD SELECT 1 2 3 4
You can also press the select button for different combinations of camera recording. For
example,
• When you choose (- - - -), no cameras will record.
• When you choose (1 2 3 4), all cameras record.
• When you choose (- - - 4), only camera 4 will record.
• When you choose (1 2 - 4), cameras 1, 2, and 4 will record.
There are 16 different combinations of camera record settings.
Note: Only the selected camera(s) will record real-time events during recording period.
RECORD MODE
To select a recording mode, navigate to RECORD MODE.
Then, press the select button to choose either EACH or QUAD mode.
MAIN MENU
CAMERA SELECT 1 2 3 4
RECORD SELECT 1 2 3 4
> RECORD MODE EACH
When recording with 4 cameras in QUAD mode, you will view the most natural movement on playback.
EACH mode supports higher quality recording at a reduced frame rate.
Example: EACH mode + 4 cameras + 30 frames per second = each camera will record at approximately.
7.5 frames per second.
RECORD FRAME RATE
To select frame rate of cameras to record, navigate to RECORD FRAME RATE.
Then, use the select button to choose the desired frame rate for recording.
