Maxtor 4-Channel DVR (Digital Video Recorder) User Manual

Page 14

For cameras that have a built-in microphone

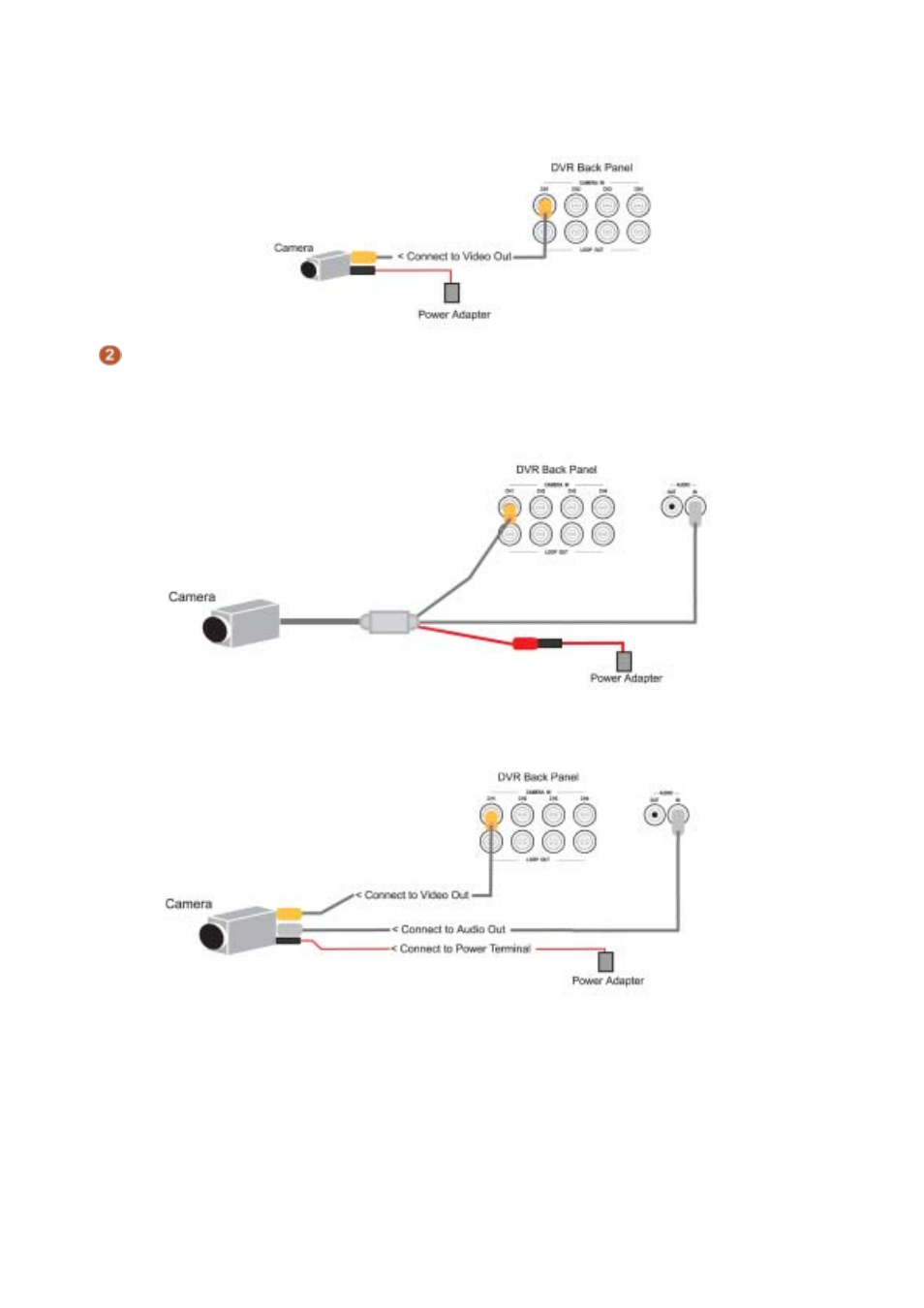

If you would like to install cameras that have a built-in microphone, follow the diagram below for
installation.

Connection Type 1 –

For cameras that have a video/audio splitter cable.

Connection Type 2 –

For cameras that have video/audio terminals on the rear panel of the camera

body.
