12
Chapter 5: Hardware Installation

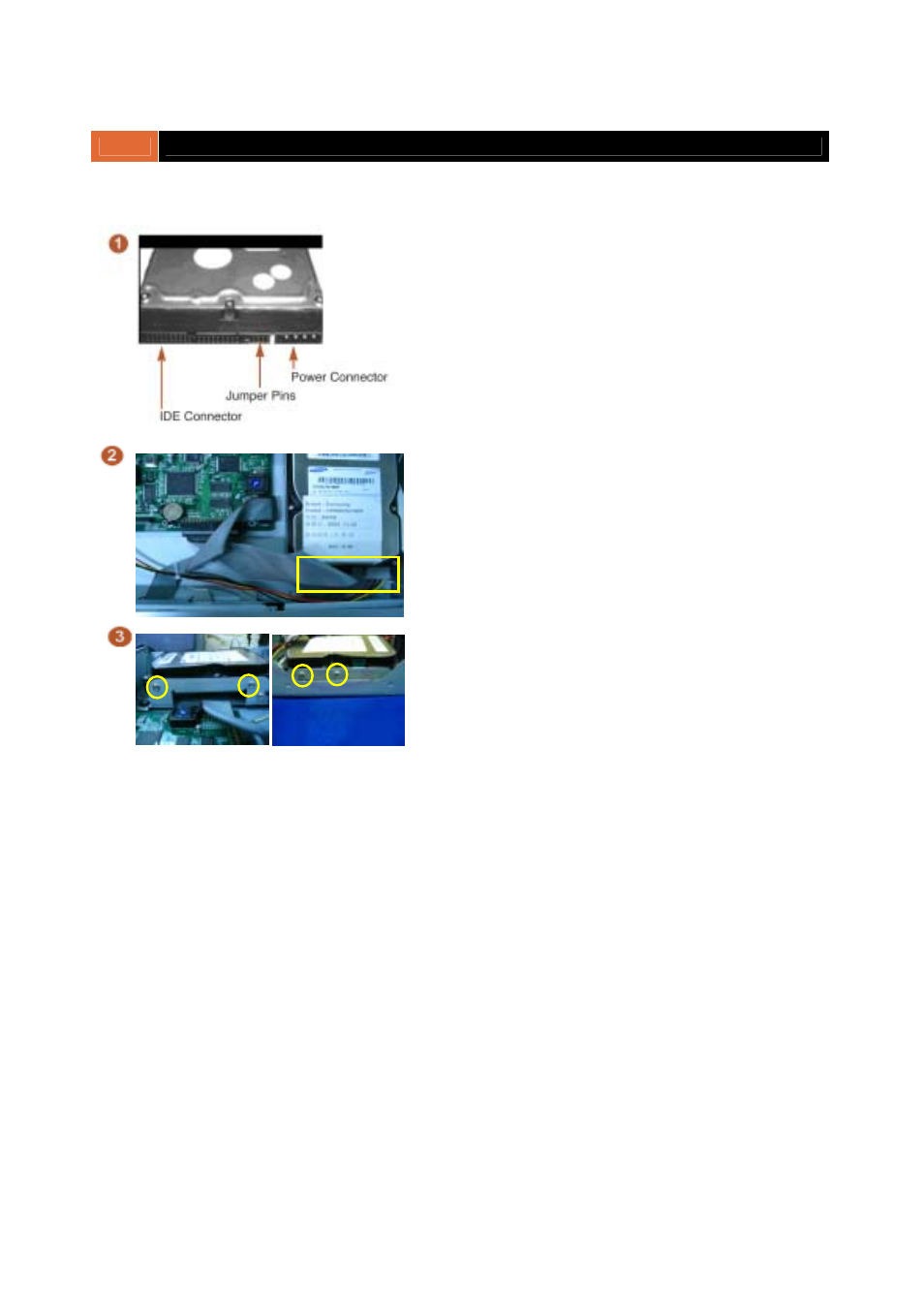

HARD DISK DRIVE INSTALLATION
Check to verify the hard drive’s jumper setting.
Important:
The jumper setting must be set to "master". Check the
jumper setting diagram on your hard drive or consult your
hard drive manual for instructions.
Note: The default setting of hard disk drive is set to
“master”.
Firmly connect the ribbon cable (IDE cable) & power cable
to the hard drive interface and carefully put the hard drive
into the HDD rack.
Fasten the hard drive to the hard drive rack using the
supplied screws.
For more information about the hard disk drive jumper settings,
visit the web sites of major HDD manufacturers:
Western Digital
http://support.wdc.com/techinfo/general/jumpers.asp
Maxtor
http://www.maxtor.com/en/documentation/installation_guides/ata_installation_guide.pdf
Seagate
http://www.seagate.com/support/kb/disc/ref/jumper_settings.html
IBM
http://www-3.ibm.com/pc/support/site.wss/document.do?lndocid=GSMH-3FCCKZ
Hitachi
(http://www.hgst.com/hdd/support/jumpers.htm)
Fujitsu
http://www.fujitsu.com/support/computing/storage/hdd/eol/dhdd/
