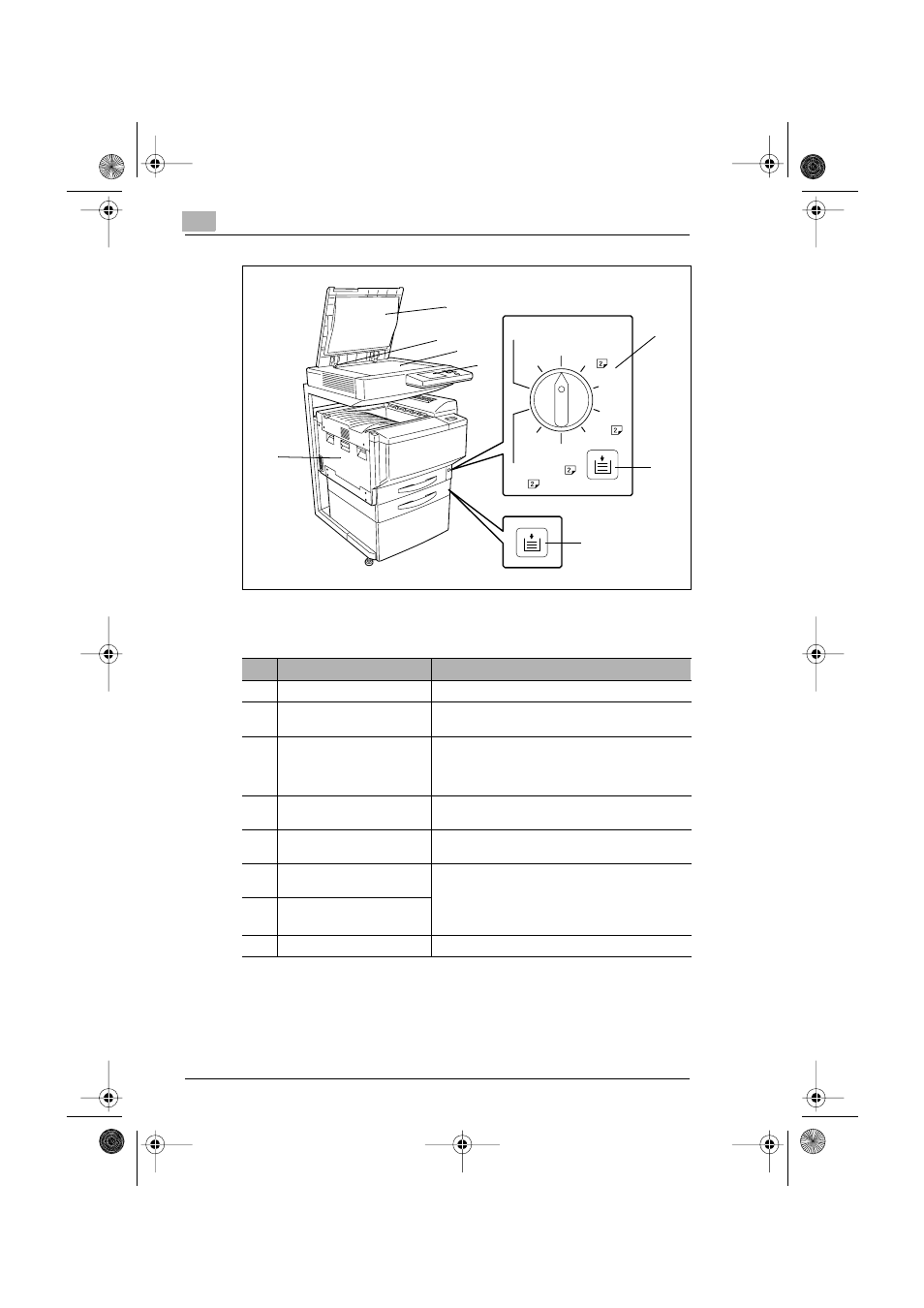

Features and Components
3-20
CF2002/CF3102
*The original cover, copier stand and copy desk shown installed in the
illustration are optional.
Plain
Plain
Thick1
Thick1
Thick2
Thick3
Thick3
Thick2
Envelope
OHP
9
11
12
16
10
14
13
15
No.
Part Name
Description
9
Original Cover (optional)
Presses the document against the original glass
10
Document scale
Used to align the document
(See page 5-5)
11
Original glass
When manually feeding the document, place it on
the glass so the document can be scanned.
Place the document face down on the glass.
(See page 5-10)
12
Control panel
Used to start copying or to make settings
(See page 3-31)
13
Media type selection dial
Used to specify the type of paper loaded into the 1st
drawer
14
1st drawer
Paper-empty indicator
Indicates the amount of paper remaining
• Flashing: Indicates that there is little paper
remaining
• Lit: Indicates that the paper is empty
Replenish the paper.
15
2nd drawer
Paper-empty indicator
16
Left-side door
Opened when servicing the copier
