Features and Components 3
CF2002/CF3102 3-21

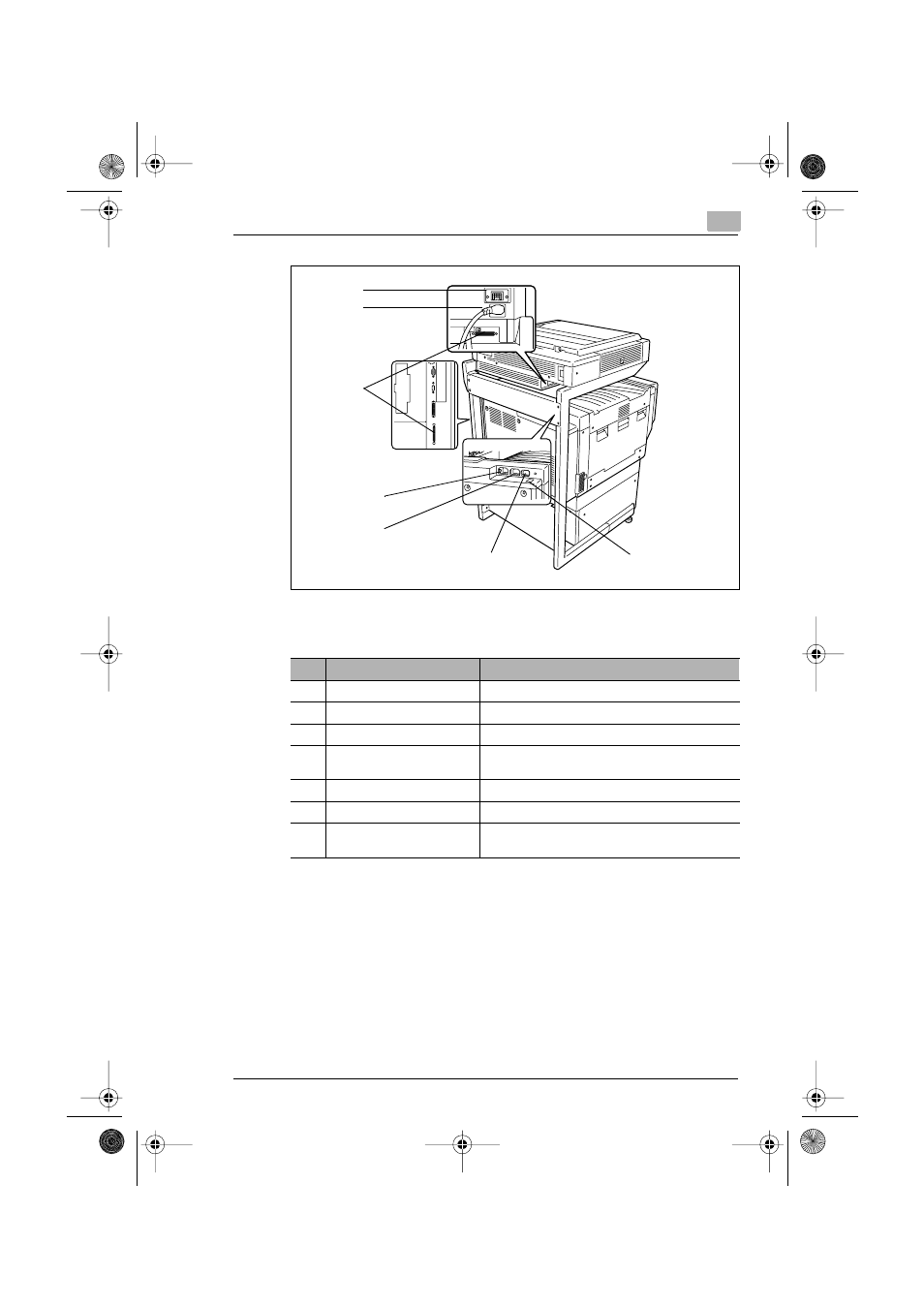

*The original cover, copier stand and copy desk shown installed in the
illustration are optional.
23
22
20
19
21
17
18
No. Part Name Description
17 Finisher connector Used for connecting the finisher hookup cord
18 Printer power cord socket Used for connecting the printer’s power cord
19 Scanner power cord outlet Used for connecting the scanner’s power cord
20 Power cord socket for Printer
Controller CN3102e Used for connecting the power cord for printer
controller CN3102e
21 Scanner connector Used for connecting the scanner hookup cord
22 Scanner power cord socket Used for connecting the scanner’s power cord
23 Duplexing Document Feeder
conector Used for connecting the duplexing document feeder
hookup cord
