DS5001FP
24 of 26

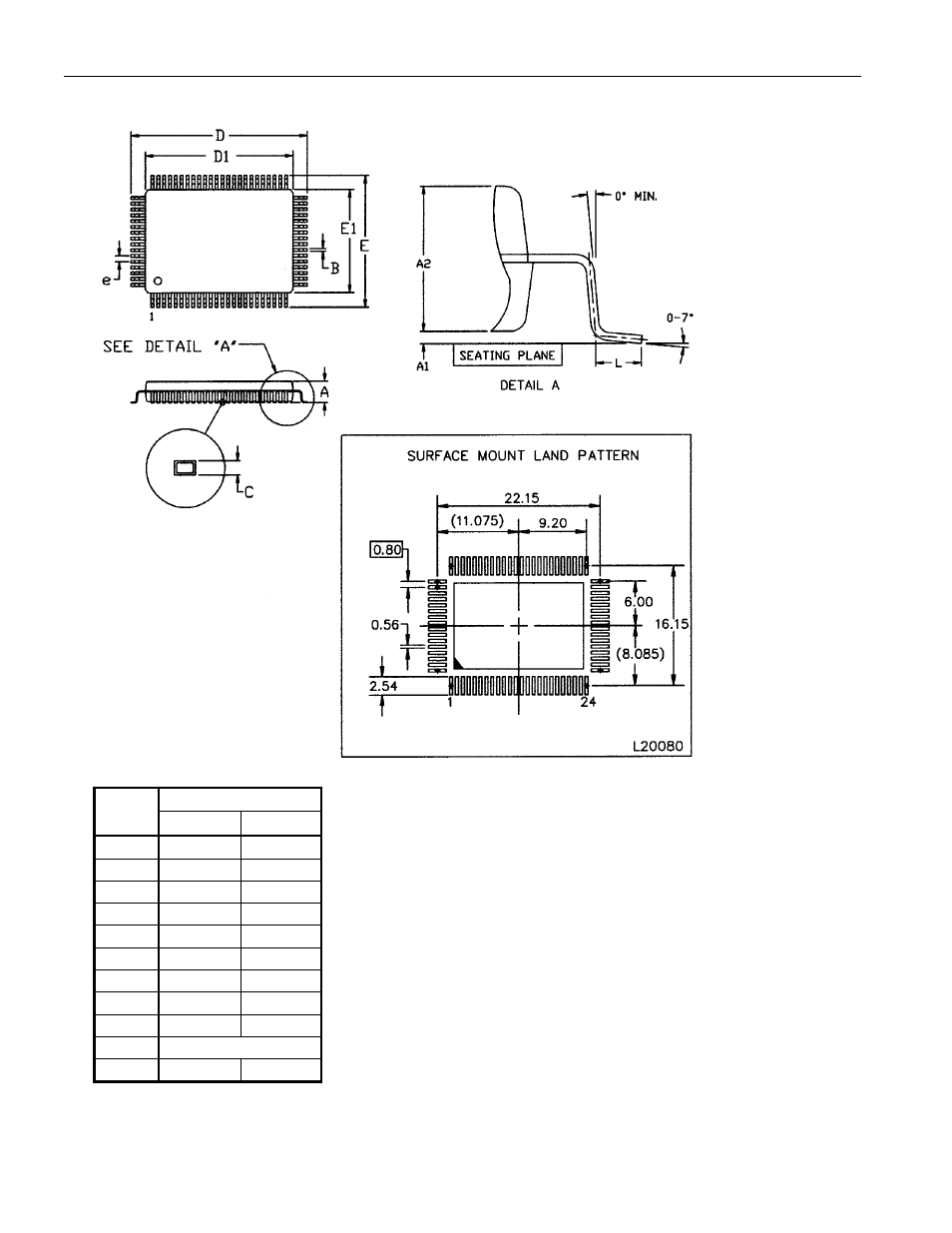

80-PIN MQFP
MM
DIM
MIN MAX
A - 3.40
A1 0.25 -
A2 2.55 2.87
B 0.30 0.50
C 0.13 0.23
D 23.70 24.10
D1 19.90 20.10
E 17.70 18.10
E1 13.90 14.10
e 0.80 BSC
L 0.65 0.95
56-G4005-001
