AC CHARACTERISTICS (continued)
EXTERNAL CLOCK DRIVE (T
A
= 0°C to +70°C; V
CC
= 5V ±10%)
# PARAMETER SYMBOL MIN MAX UNITS
28
External Clock-High Time
at 12MHz
at 16MHz t
CLKHPW
20
15 ns
29
External Clock-Low Time
at 12MHz
at 16MHz t
CLKLPW
20
15 ns
30
External Clock-Rise Time
at 12MHz
at 16MHz t
CLKR
20
15 ns
31
External Clock-Fall Time
at 12MHz
at 16MHz t
CLKF
20
15 ns

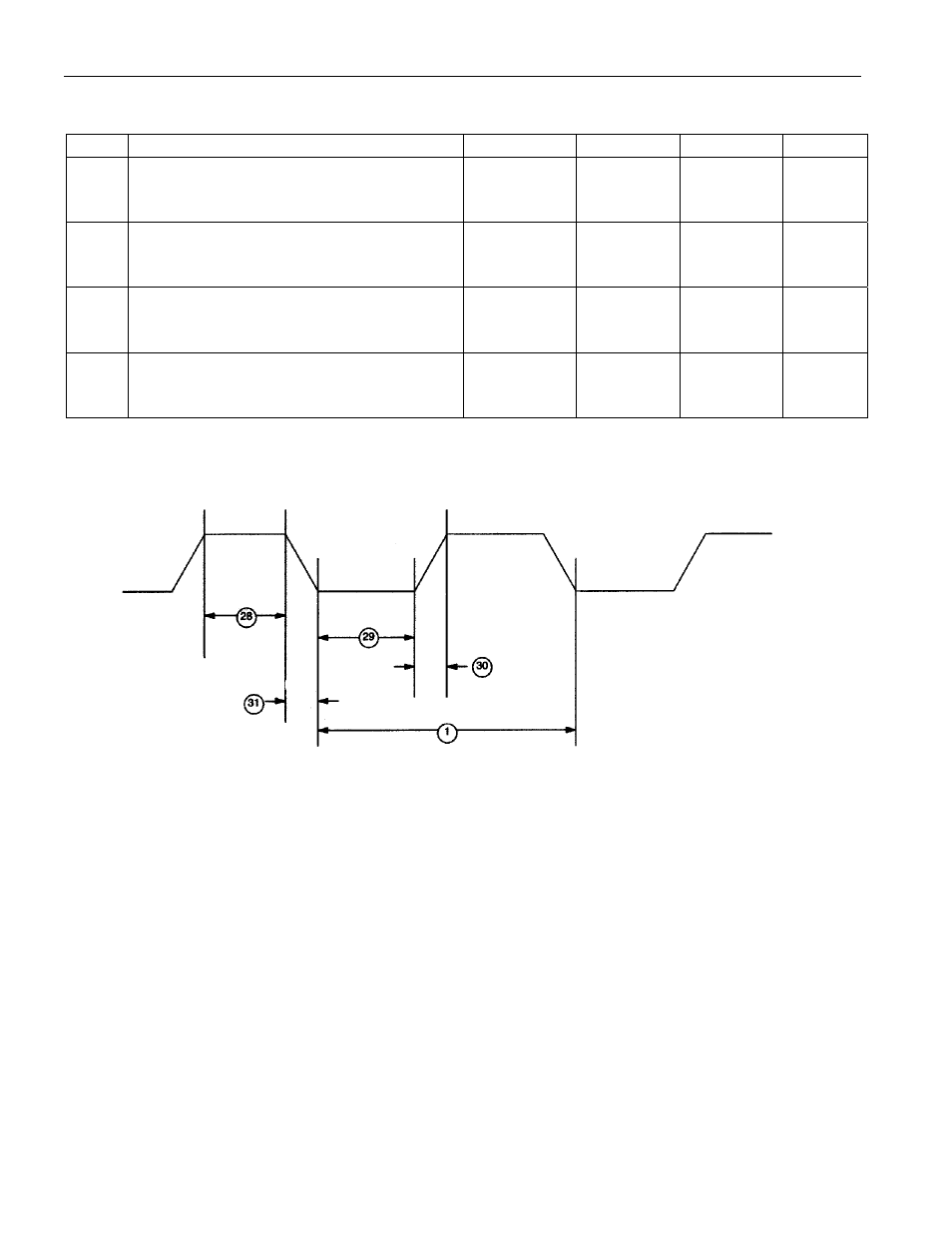

EXTERNAL CLOCK TIMING
