38
Connection
0 1mm
0 1mm
Connection
0 1mm

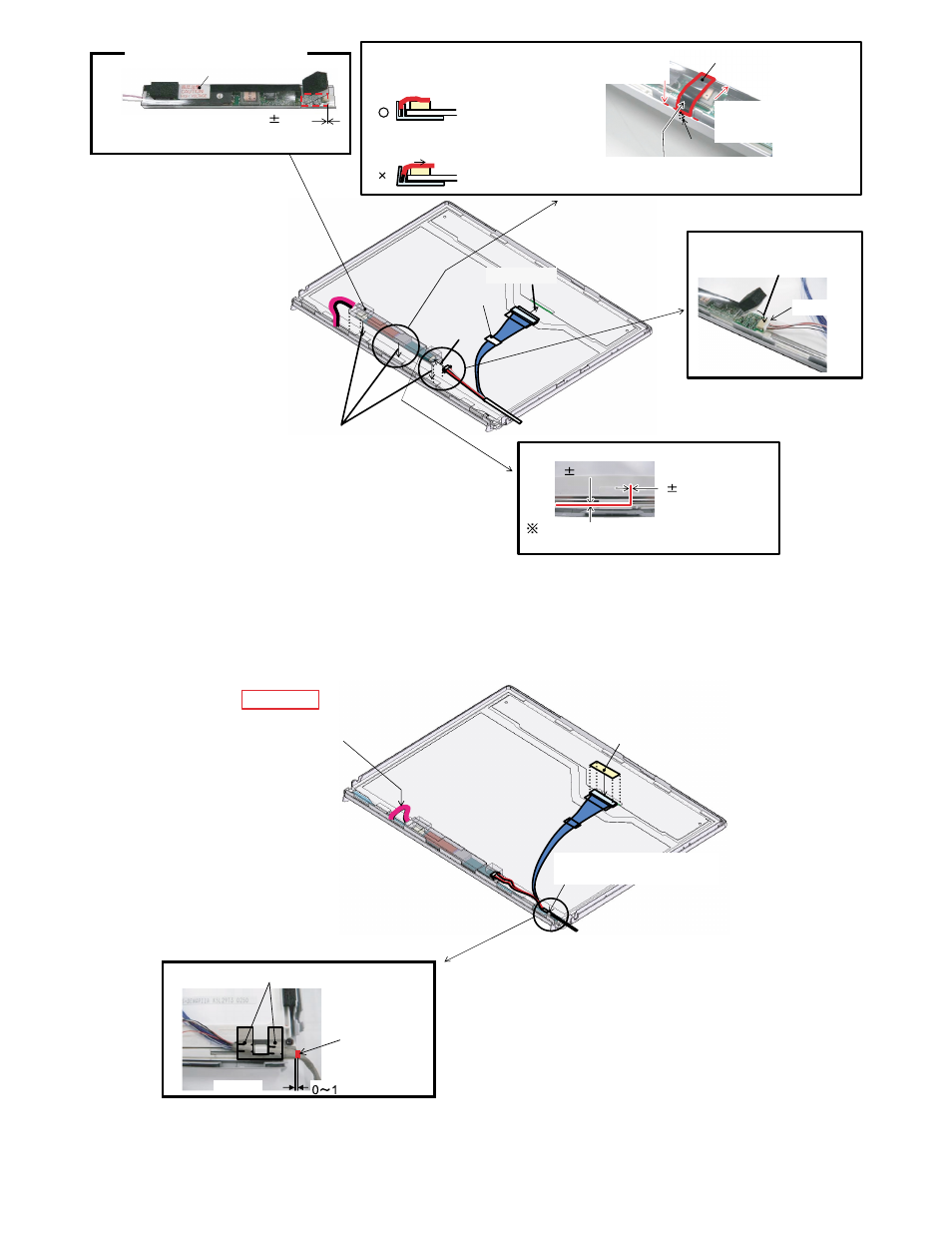

Inverter Case
Rib
Inverter Tape
LCD Cable
The both sides tape flaking off
paper of the Inverter Case bot-
tom (3pieces) is peeled off and
affixes to the frame.
The externals part of Inverter Case is
set to the above-mentioned line
Inverter Board is affixed in a
both sides tape externals
match
Inverter tape affixation without
transforming.(Room is given)
The tape is pulled too much and
LCD Front Case is transformed.
Affixes fit to rib
Matches and
externals are affixed
So as not to transform LCD Front
Case, affixes.(Refer to a left chart)
The both sides tape flaking
off paper is affixed to the
peel connector.
Connection
9.3.2.6. Putting Tape for LCD Cable
PET Tape (10mmx35mm)
Affix to reflector surely
Frame
Affixes in a connector
externals match
The Conductive Cloth part is
processed to clamping
Processes straight from
begin to draw out Cable
The line is
matched to the
frame externals
Safety Work
