Cabinet Separation for Model WS-65712
����� ������ �����
���������� �������
����� �������
��������� ��������
���
�������
��
1
2
3
����
�������
��������� ���
������
�������
���
�������
4

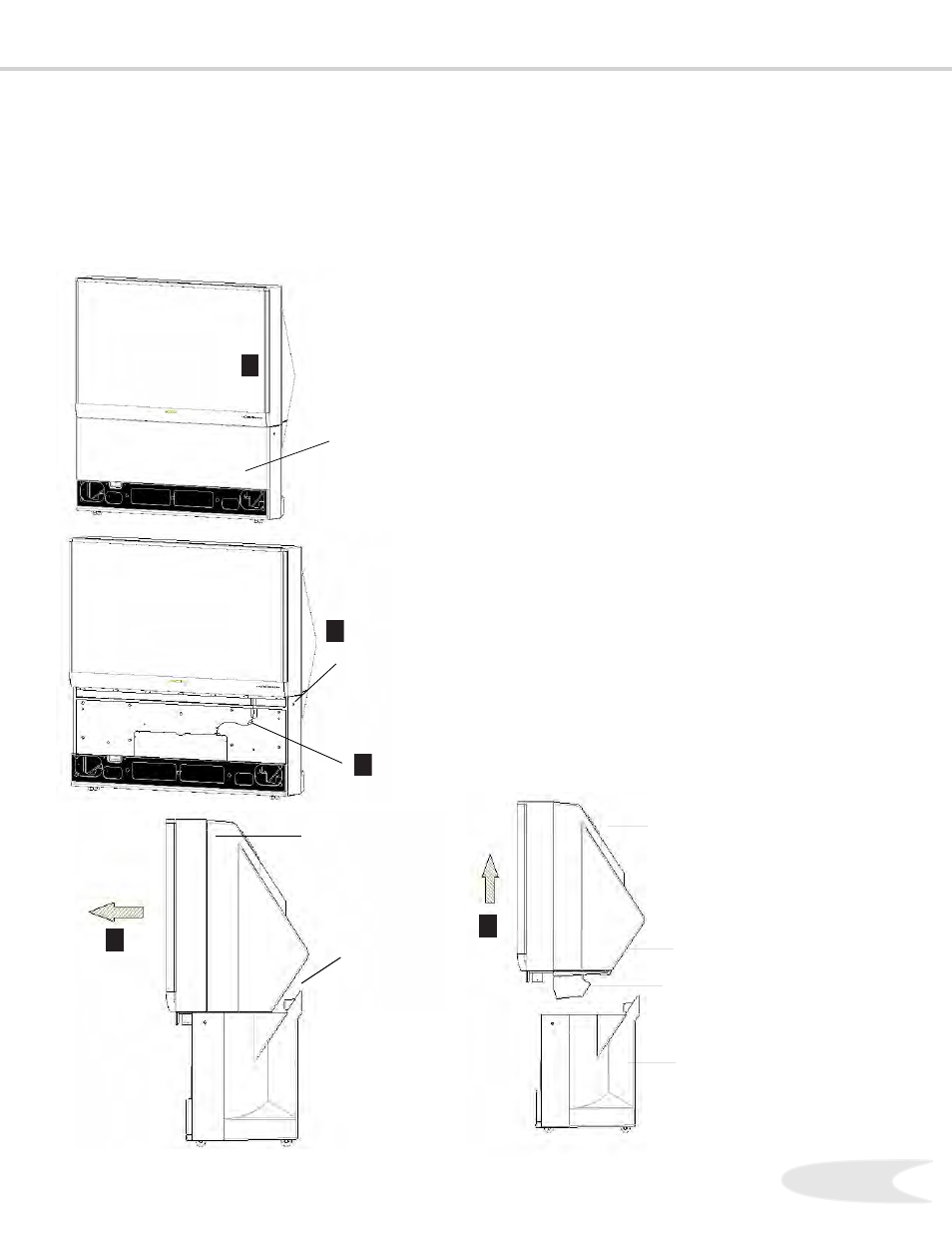

Follow the procedures for separating the upper and
lower sections of the projection TV cabinets as
described below:
1. Remove the glossy wood front panel by pulling
forward from the left and right sides of the TV.
2. Disconnect the AV jack connector.
3. Remove the decorative plastic cover on each
side of the cabinet. Remove the exposed screw
on each side.
4. Slide forward the top cabinet then carefully lift
the cabinet-top straight up until the brackets are
clear from the cabinet-bottom.
5. Carefully place the cabinet-top on to the floor.
6. Once you have have moved and positioned
the cabinet-bottom to its desired location, reverse
the procedure and mount the cabinet-top on the
cabinet-bottom. Be sure you align the brackets
properly. Keep fingers clear of all joints! Replace
the screws and the decorative plastic covers that
were removed in Step 1.
The following operation should be performed by
two people.
For Mitsubishi Dealers and Service Personnel Only
The Mitsubishi TV model WS 65712 cabinet is assembled in two pieces. These pieces may be separated
to allow for easier delivery and set up. The instructions below show how to safely separate and reattach
the cabinet. This TV weighs over 249 lbs and has many sensitive components. This dismantling
procedure should be done by authorized Mitsubishi Dealers or Service Personnel only.
