Connecting an External Digital TV (DTV or HDTV) Receiver
DTV Connectors and Adaptors
(Figure 1)
The TV back panel has 5 RCA-type connectors for
the Input-DTV. The back panel of your external
DTV receiver may use RCA-type connectors
or BNC-type connectors. If your DTV receiver
comes with BNC type connections, you will need
to purchase BNC to RCA adaptors to connect the
TV to the DTV receiver. These adaptors should be
available at most electronic supply stores.
External DTV Receiver with
Component Video Connections
(Figure 2)
1. Connect the outside antenna, cable, or
satellite to ANT, or SATELLITE IN on the DTV
receiver (see your DTV receiver’s owner’s guide
for instructions, and cable compatibility).
2. Connect the incoming terrestrial antenna,
or cable (not satellite) to ANT-A on the TV
back panel (a coaxial splitter, available at most
electronic supply stores, may be required to
complete this installation).
3. Connect RCA-type cables from the YPrPb
outputs on the DTV receiver to Input-DTV
on the TV back panel, matching the correct
connections: (Y to Y) (Pr to Pr) (Pb to Pb).
DTV Receiver/TV Back panel
• Y to Y
• Pr to Pr
• Pb to Pb
Note: You may need to set the Input-DTV
assignment to Y/Pr/Pb instead of RGB.
Refer to the Edit NetCommand™ Setup for
instructions on changing this setting.
4. Connect the L (left) and R (right) audio
cables from the DTV receiver to Input-DTV
AUDIO on the TV back panel.
Note: To utilize the benefits of a digital A/V
receiver, connect your DTV receiver’s digital
audio out to a digital input on your digital A/V
receiver.

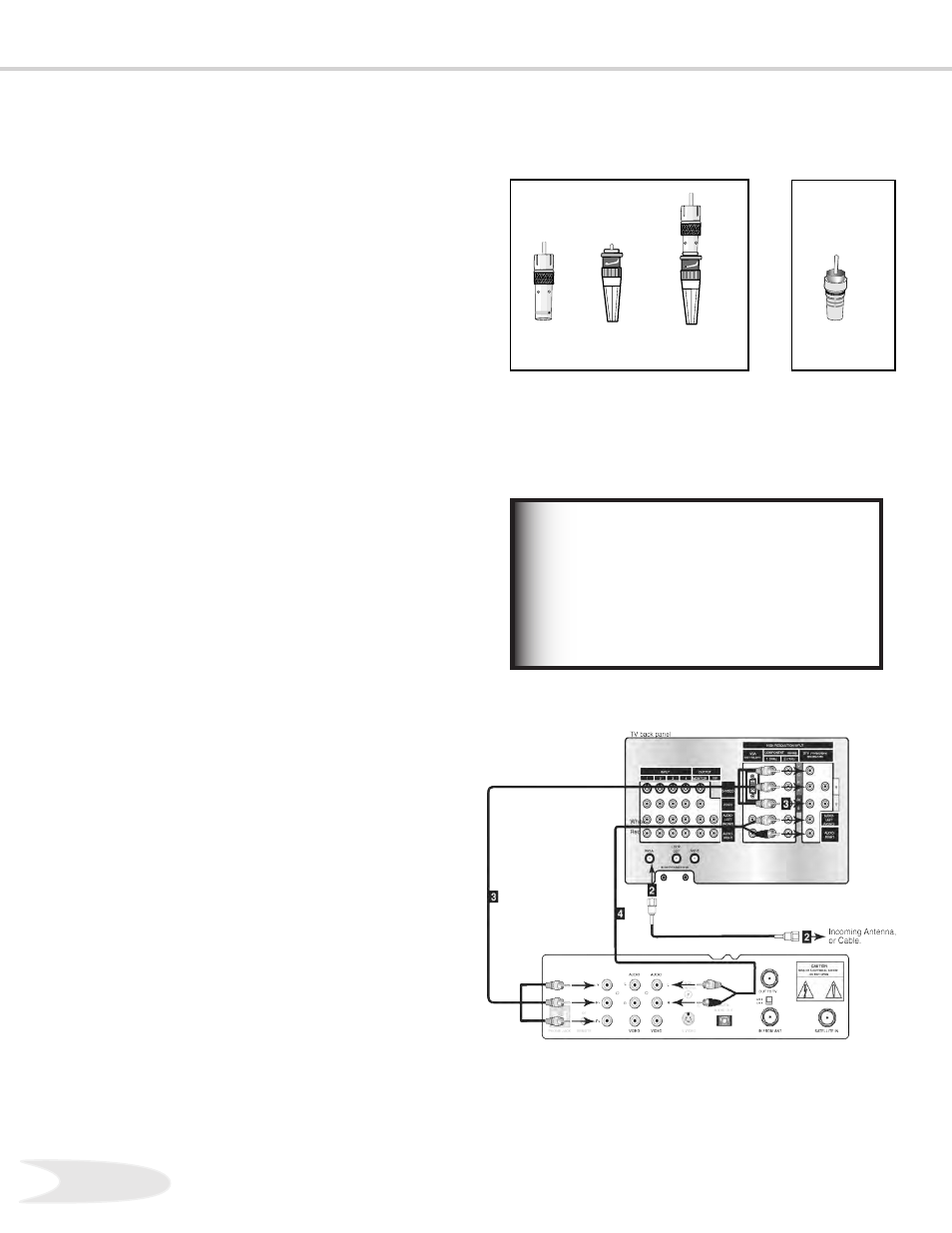

Figure 2. Connecting the DTV receiver with component
video connections.
BNC to
RCA BNC
Adaptor Connector Adaptor
Fitted to
Connection RCA
Connector
or
Figure 1. DTV connectors and adaptors.
• See Appendix B for component
video signal compatibility information.
• For digital audio connections, see
your DTV Receiver and A/V Receiver
Owner’s Guides.
