40
Multiple links between switches can be grouped (trunk) to work as one virtual,
aggregate link. You can create 4 trunks at a time; each trunk can hold up to 8 ports.
Only ports of the same speed can belong to a single trunk. Link aggregation is
supported and trunking can be configured to another switch supporting the
standards.
x Trunk Group 1:
o 2 Ports: 1, 2
o 4 Ports: 1, 2, 3, 4
o 8 Ports: 1, 2, 3, 4, 5, 6, 7, 8
x Trunk Group 2:
o 2 Ports: 9, 10
o 4 Ports: 9, 10, 11, 12
o 8 Ports: 9, 10, 11, 12, 13, 14, 15, 16
x Trunk Group 3:
o 2 Ports: 17, 18
o 4 Ports: 17, 18, 19, 20
o 6 Ports: 17, 18, 19, 20, 21, 22, 23, 24
x Trunk Group 4:
o 2 Ports: 25, 26
3.12. Port Mirroring Configuration

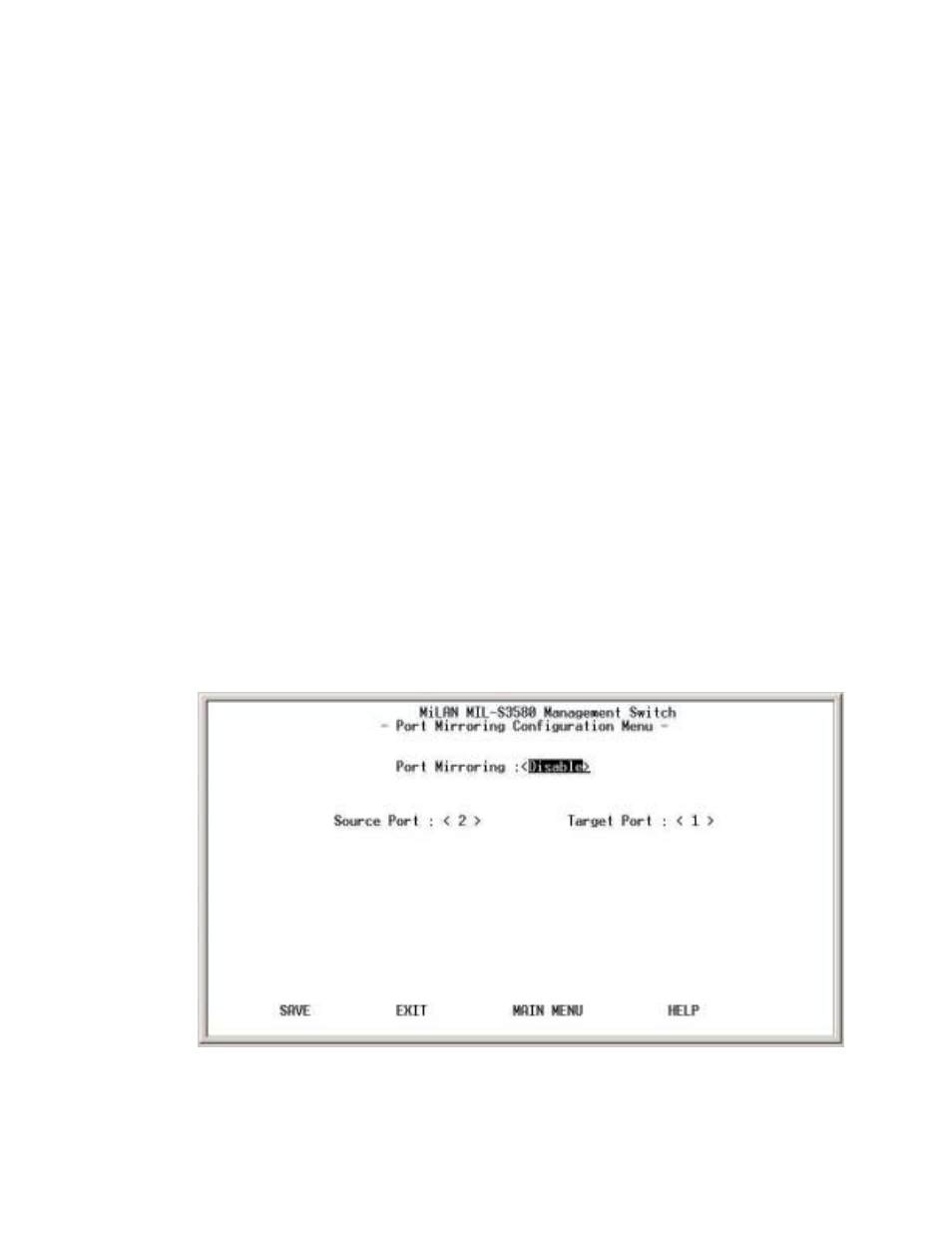

Figure 3-34. Port Mirroring Configuration Menu
