Page 12: Hookup, Sdr24/96, High resolution non-linear recorder
12
SDR24/96
SDR
24/
96
Hookups
This section shows how the SDR24/96 is typically connected to both analog and
digital consoles (using the Mackie Analog and Digital 8•Bus consoles as
examples). These examples assume that the rest of your studio equipment
(monitors, sound sources, outboard processing, etc.) is already connected, or that
you know how to connect it.
Before you begin, note how the three analog eight-channel I/O connectors are
arranged on the SDR24/96 rear panel: 1-8 is on the left, 9-16 is in the center, and
17-24 is on the right. Labeling each cable before you begin will make connecting
the SDR24/96 to your console easier.
Analog Hookup
This example describes the hookup for the 24•8 analog console.
Cables & Hardware
(6) Analog break-out cables, DB25 to eight 1/4" TRS phone plugs
Hookup
1. Connect three break-out cables to the SDR24/96 Inputs (bottom
connectors). If you want to have the ability to route any console input to
any recorder track, then connect the 1/4" plugs on each of the three break-
out cables to the like-numbered Submaster/Tape Output jacks on the
8•Bus console. This works as long as you don’t record more than 8-
channels at a time, since the Submaster Outputs 9-16 and 17-24 are the
same as outputs 1-8.
Alternately, you can connect the console’s direct outputs to the recorder’s
inputs, so that each console channel feeds the like-numbered recorder

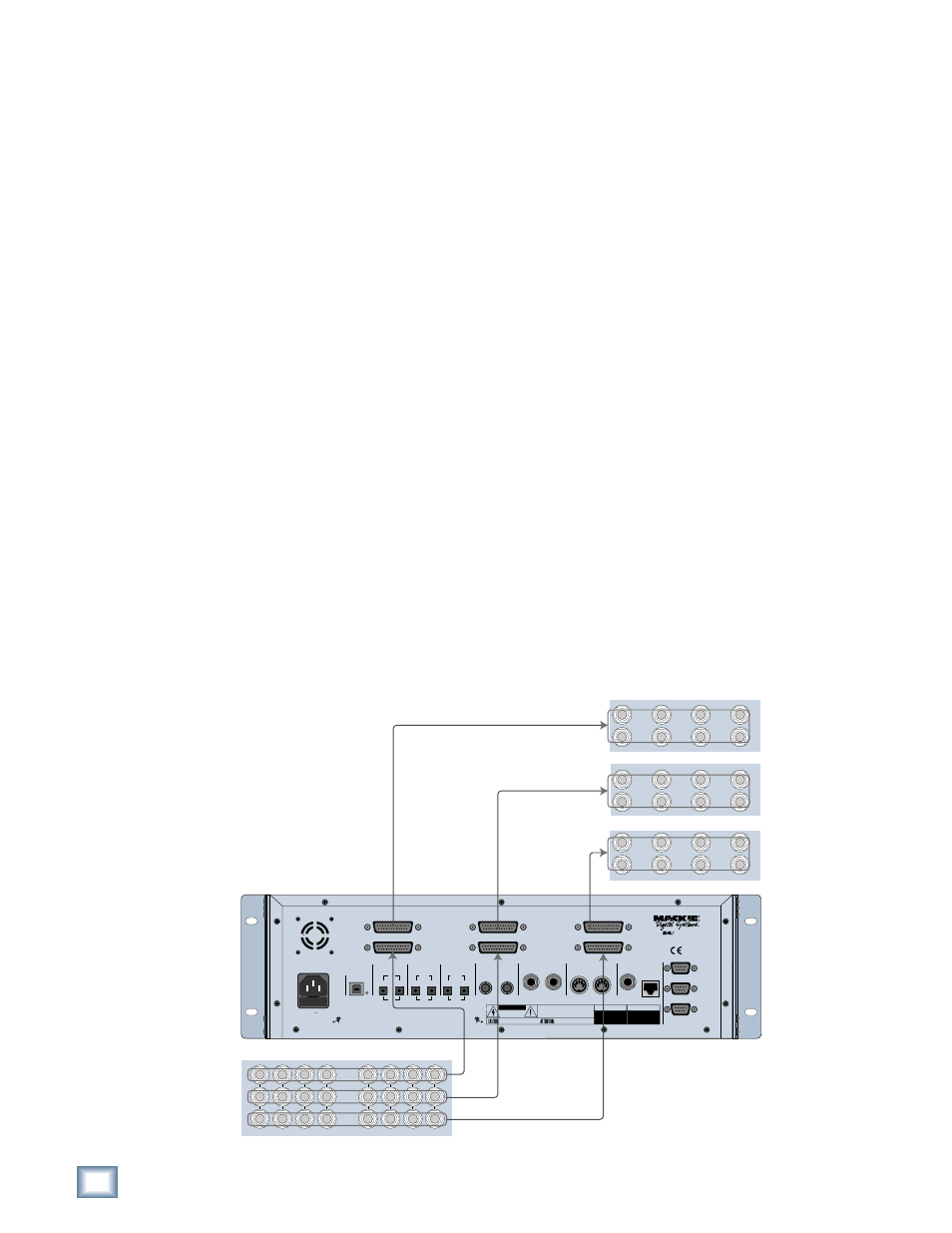

track. Or, you can use a combination of direct and subgroup outs. The
hookup diagram below shows the SDR24/96 inputs connected to the
Submaster Outputs.
24•8 SUBMASTER/TAPE OUTPUTS
8
7
15
6
14
5
13
4
12
3
11
2
10
1
9
24•8 TAPE RETURNS 1-8
15
1311
9
7
5
3
1
16
14
12
10
6
4
2
8
17
18
19
20
21
22
23
24
16
24•8 TAPE RETURNS 9-16
24•8 TAPE RETURNS 17-24
17
18
20
19
21
22
23
24
OUT
IN
IN
IN
OUT
OUT
DIGITAL
WORD CLOCK I/O
MIDI
ADAT SYNC
IN
ADAT SYNC
OUT
SERIAL
9-PIN
FOOT
SWITCH
SMPTE
MICRO/
REMOTE 24
CNTRL
ANALOG OUT 1 - 8
ANALOG OUT 9 - 16
ANALOG OUT 17 - 24
ANALOG IN 1 - 8
ANALOG IN 9 - 16
ANALOG IN 17 - 24
RISK OF ELECTRIC SHOCK
DO NOT OPEN
REPLACE WITH THE SAME TYPE FUSE AND RATING.
DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE
UTILISE UN FUSIBLE DE RECHANGE DE MÊME TYPE.
DEBRANCHER AVANT DE REMPLACER LE FUSIBLE
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
CAUTION
SERIAL NUMBER
MANUFACTURING DATE
AVIS:
RISQUE DE CHOC ELECTRIQUE — NE PAS OUVRIR
CONCEIVED, DESIGNED, AND MANUFACTURED BY MACKIE DESIGNS INC • WOODINVILLE • WA 98072 • USA
MADE IN USA • FABRIQUE AU USA • PATENTS PENDING COPYRIGHT ©1998 THE FOLLOWING ARE TRADEMARKS OR
REGISTERED TRADEMARKS OF MACKIE DESIGNS INC.: "MACKIE.", MACKIE DIGITAL SYSTEMS AND THE "RUNNING MAN" FIGURE.
POWER
USB
1 - 8
IN
OUT
DIGITAL
9 - 16
IN
OUT
DIGITAL
17 - 24
X2
1-4
X2
5-8
X2
9-12
IN
OUT
24 TRACK/24 BIT DIGITAL
AUDIO RECORDER
HIGH RESOLUTION
NON-LINEAR RECORDER
96
SDR
100 - 240V 250mA
50/60Hz
