WorldPhone – Chapter 5. Appendices D-17
Pin assignments
Signal source DTE means the signal goes from the PC to the WorldPhone.
Signal source DCE means the signal goes from the WorldPhone to the PC.

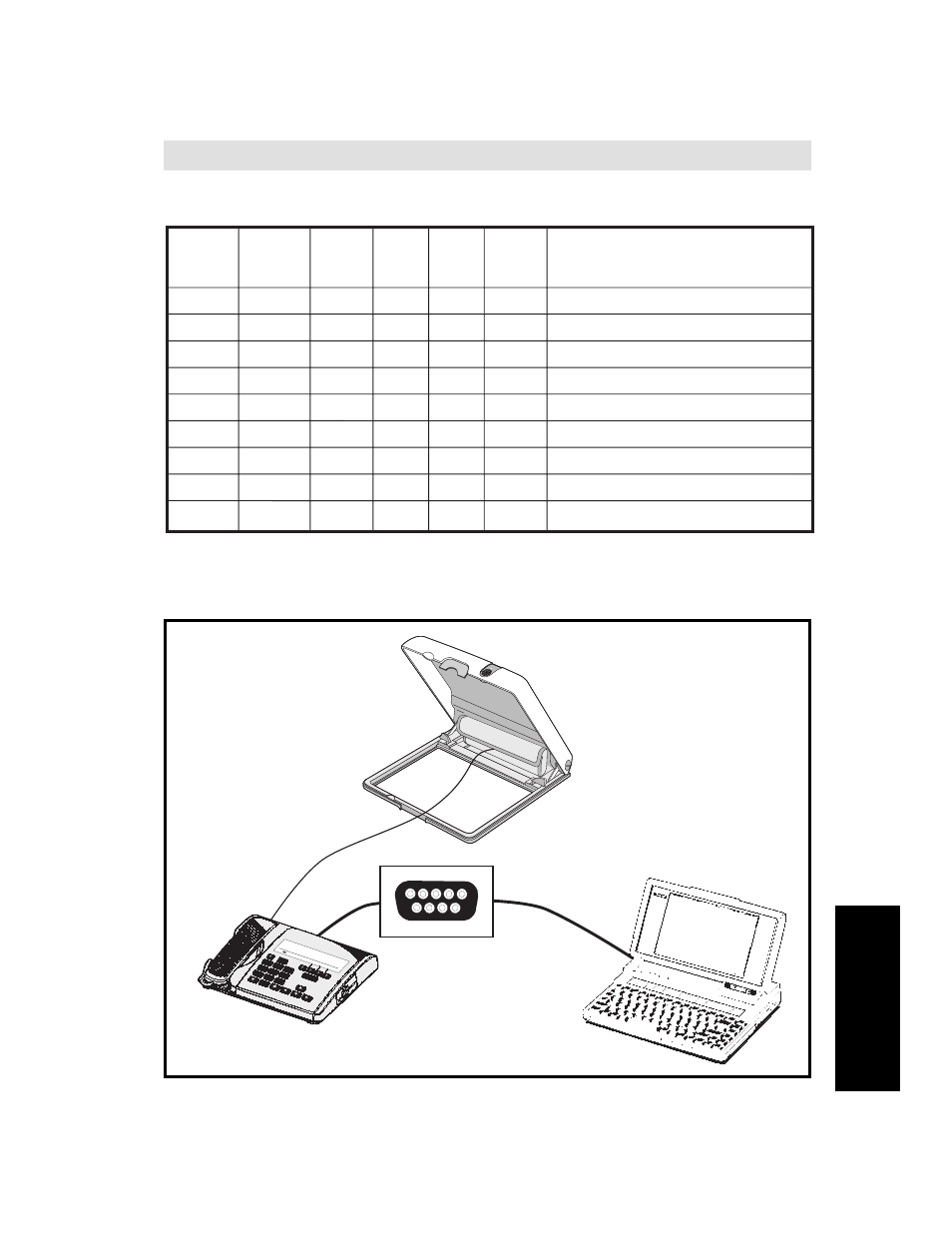

Appendix D – DTE interface
DTE interface
Pin Mne-
Circuit DIN
CCITT Signal
Description
number monic circuit source
1 CD 109 DCE Carrier detect
2 RXD BB D1 104 DTE Received Data
3 TXD BA D2 103 DCE Transmitted Data
4 DTR 108 DTE Data terminal ready
5 GND 102 Signal ground
6 DSR 107 DCE Data set ready
7 RTS CA S2 105 DTE Request To Send
8 CTS CB M2 106 DCE Clear To Send
9 RI 125 DCE Ring indicator
DTE DCE
