WorldPhone – Chapter 1. Getting Started 1.5
5 4 3 2 1
6 7 8 9 10-32VDC TEL FA
X
ANT D
ATA
1 6 1 6
10-32VDC:
WorldPhone Portable:
input for simultaneous
powering and charging
(min.12V) of internal
battery pack.
Polarity independent.
WorldPhone
Marine&Voyager:
input from Power
Supply FAX:
2-wire RJ11
connector
for telefax.
Can be
reconfigured
for telephone TEL:
2-wire RJ11
connector
for
telephone,
cordless
base
station or
PABX DATA:
9-pin RS232
Hayes AT
compatible port
for 2.4 Kbps data
communication,
output to printer
or software
download ANT:
connection
of coax
cable from
antenna

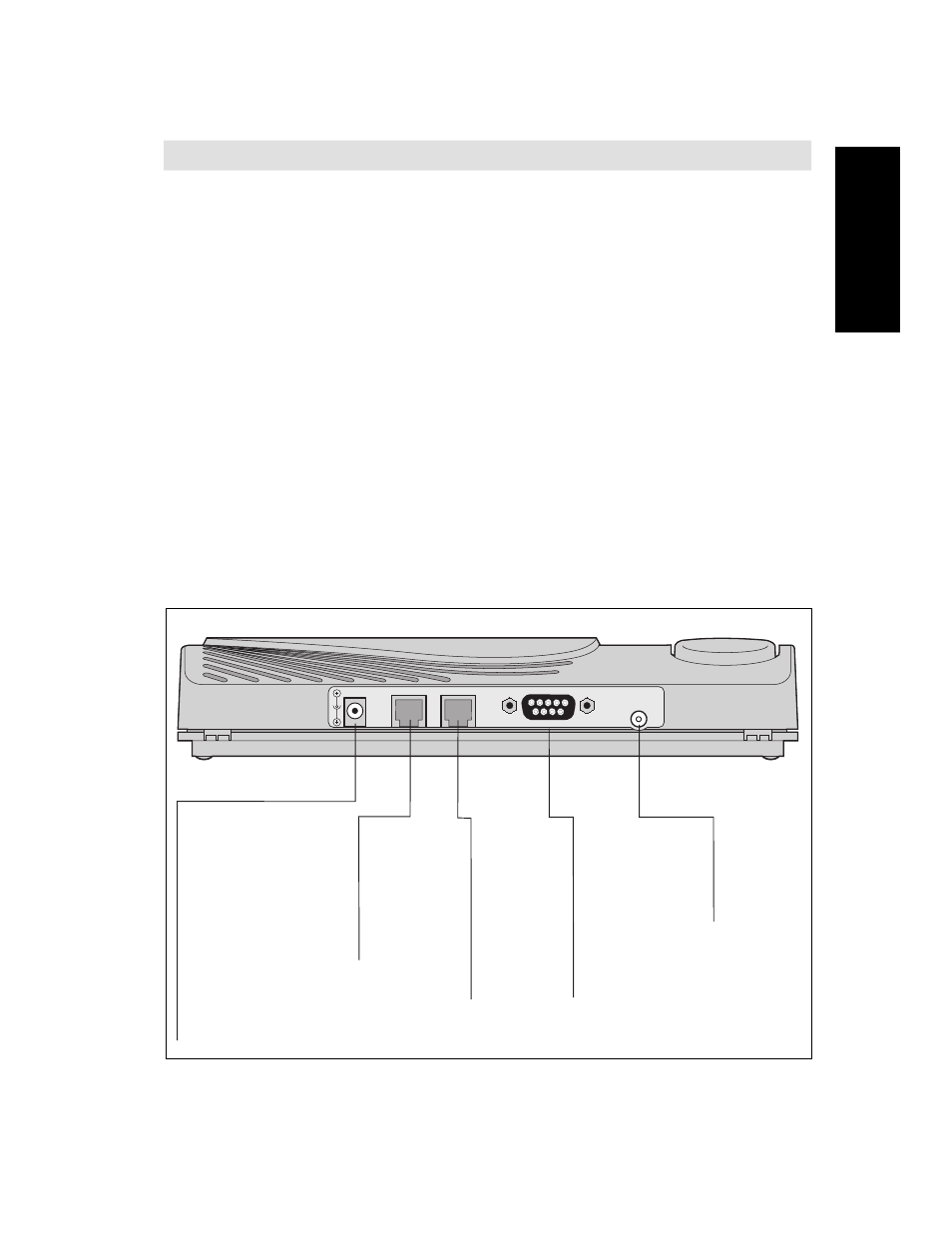

Figure 1.2 Telephone Unit connector panel
Telephone
A DTMF telephone, cordless base station or PABX may be connected
to the WorldPhone. This additional telephone is assigned a separate
incoming call number.
Telefax service
The Telefax facility supports Group 3 fax transmission at a rate of
2.4 Kbps. The telefax is assigned a separate incoming call number.
Data service
The built in Data Transmission Service is capable of transferring
data at 2.4 Kbps. It allows the WorldPhone to interface with a PC
without the aid of a modem or data card.
The Asynchronous Data (ASD) system provides data transfer be-
tween two WorldPhones, or between a WorldPhone and the fixed
international network.
The data facility is assigned a separate incoming call number.
