Appendix B – Installation of Voyager Antenna cont’d
Installation of Voyager Antenna cont’d
Mounting the Power Supply
Dia 10 mm
4.5 mm
Dia 4.5 mm Dia 4.5 mm
230 mm
198 mm
174 mm
160 mm
10 mm
Standard tripod mount
Underside view

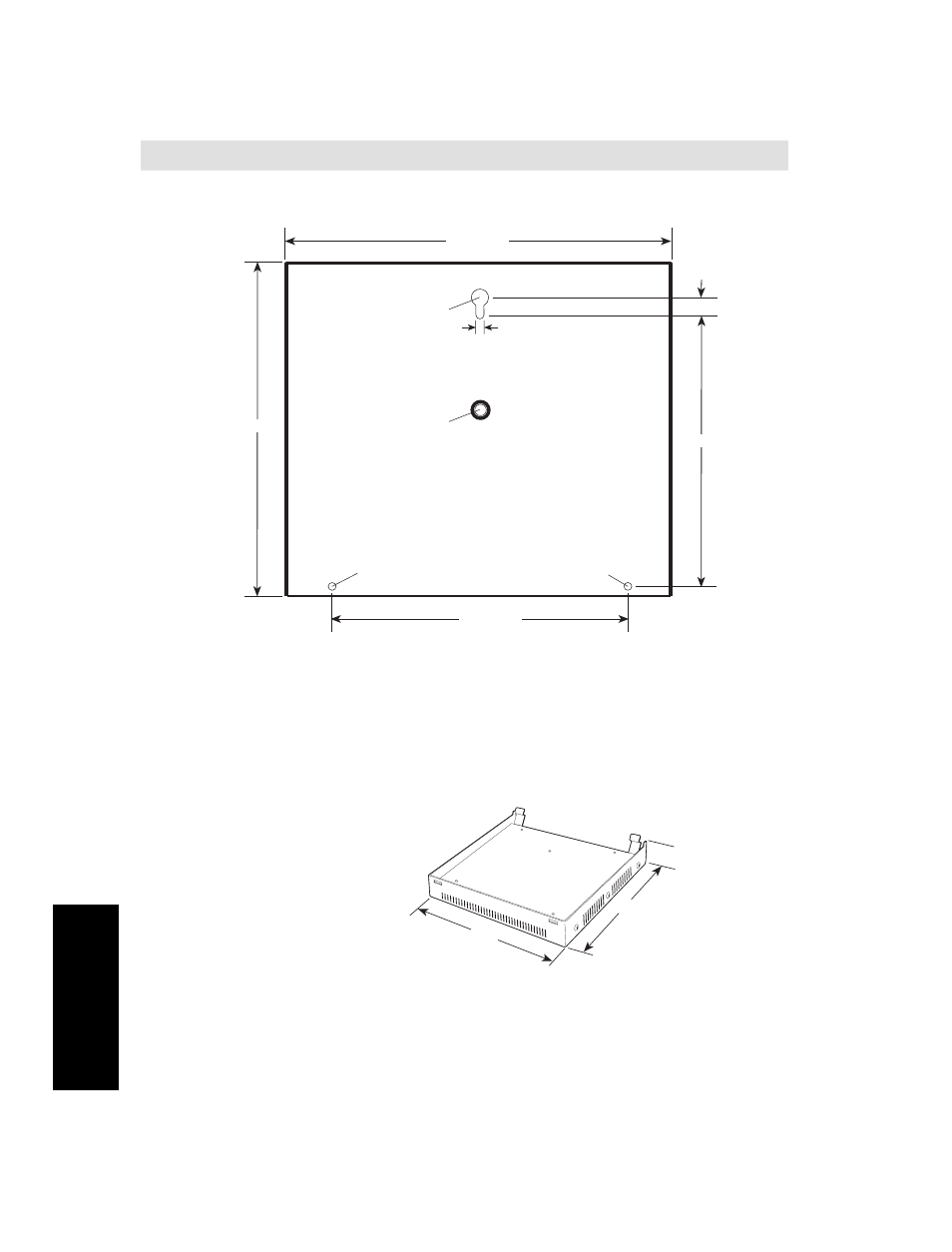

Outline dimensions
