WorldPhone – Chapter 5. Appendices
B-12
Appendix B – Installation of Voyager Antenna cont’d
Installation of Voyager
Antenna cont’d

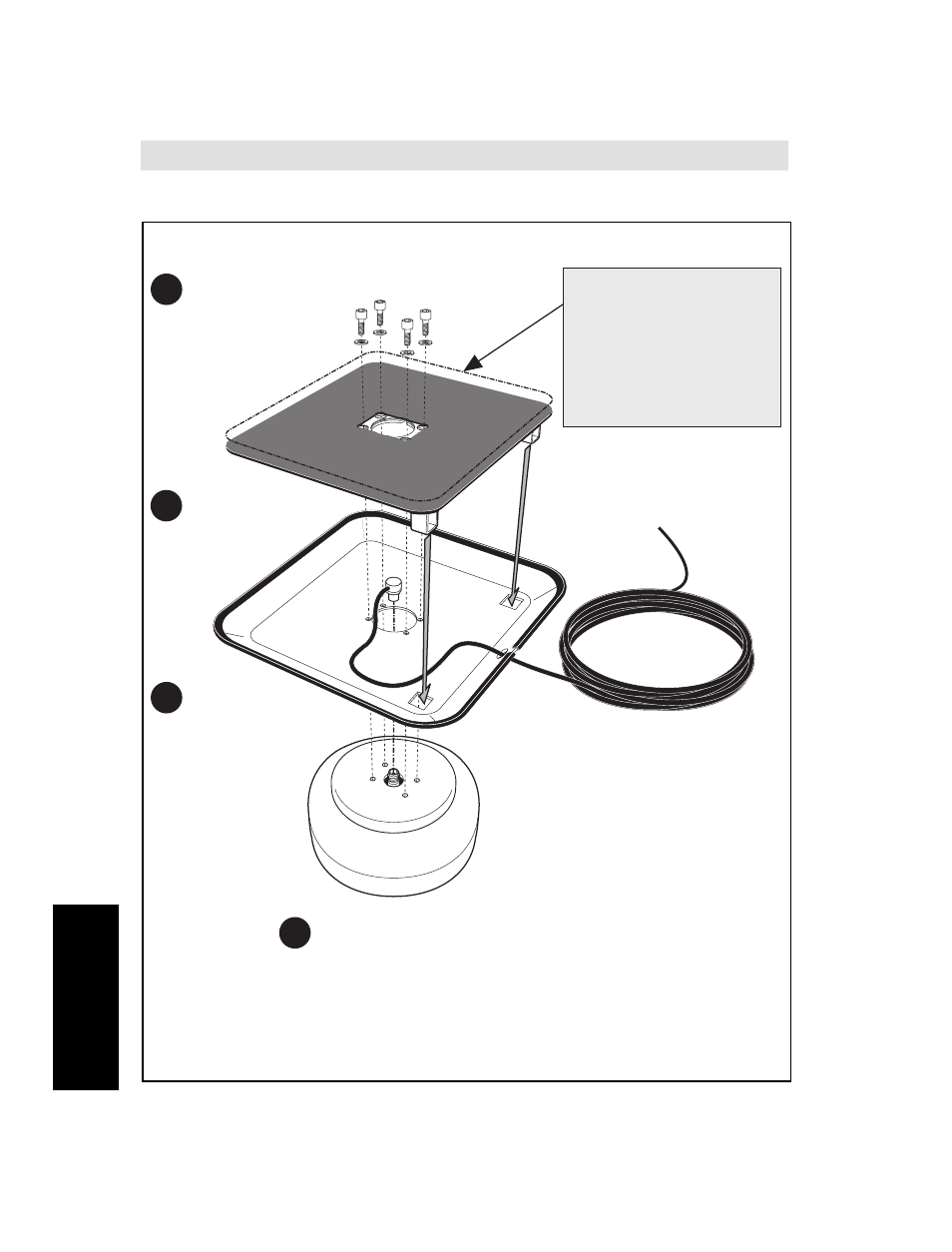

Assembling the Antenna Unit for magnetic mount
Place the antenna upside
down on a stable surface.
1
Lower the base
plate down onto
the antenna with
the mounting
holes positioned
across for the
screw holes.
2
While holding the
base plate in
place, lower the
magnetic plate
down and mount
the four hexagon
screws with
washers.
4
While holding
the base plate
in place, mount
the antenna
coax plug.
3
Note!
Remove the protection plate
from the magnetic plate prior
to attaching the Antenna Unit.
The protection plate is
supplied to keep the magnetic
plate clean during shipment
of the equipment.
