Magellan GLOBAL SATELLITE TELEPHONE - Manual (Page 106)

WorldPhone – Chapter 5. Appendices B-4
DIMENSIONS IN MILLIMETRES

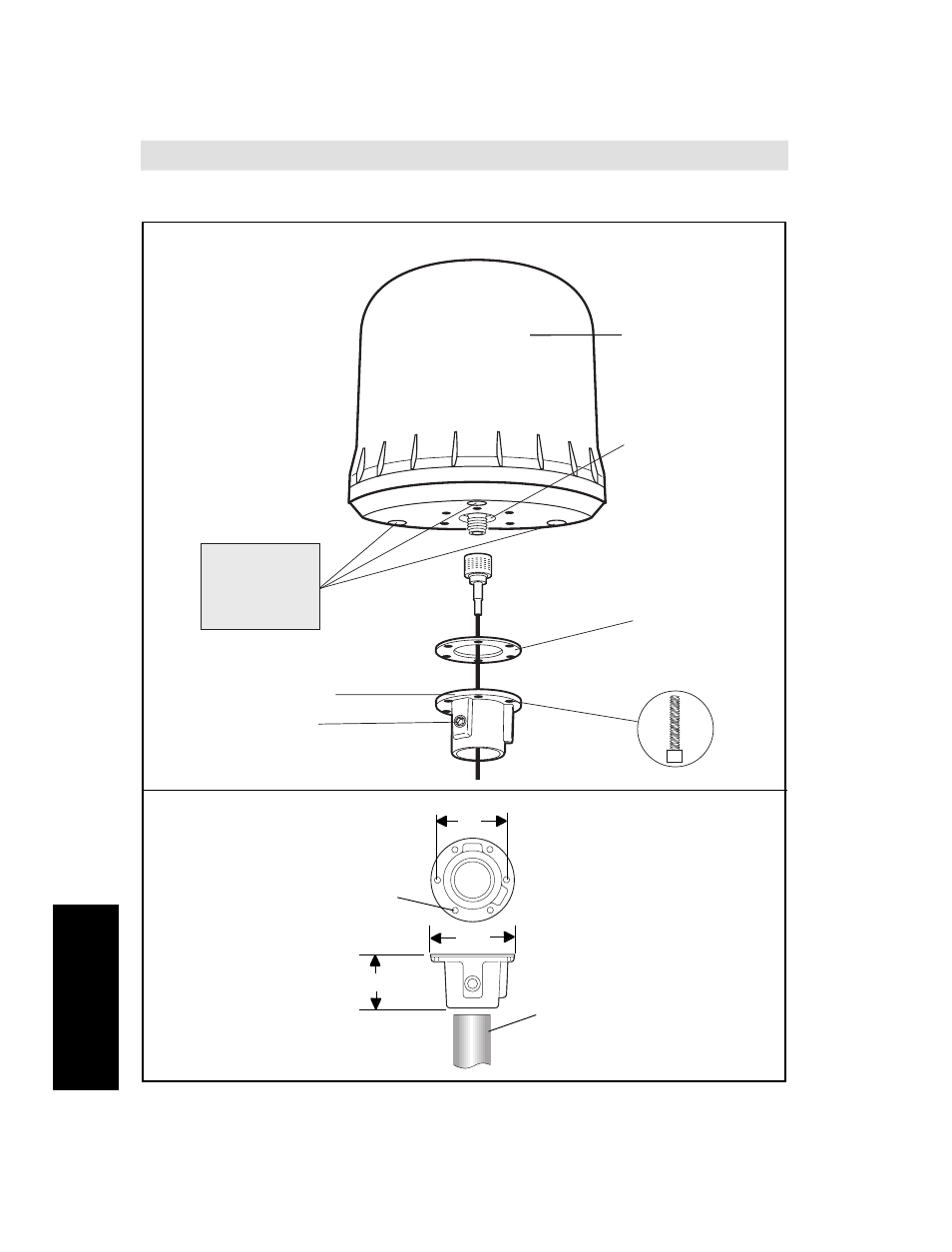

Mounting the Antenna Unit with radome type 3
Mounting flange dimensions:
Mounting flange
Lock screw (2)
Use 6 mm
unbrako key
Gasket
Hexagon
screws/
washers (6)
Procedure:
Thread coax cable through
sockets and tube prior to
final assembling and
installing Antenna Unit
Note!
Condensation
drainage.
Do not cover!
Apply silicone
compound
Radome
type 3
72
85.5
55
Dia 7
Tube (option)
Outer dia 42.4
Appendix B – Installation of Marine Antenna cont’d
Installation of Marine Antenna cont’d
