4
For a complete food storage center,
install a Monogram Freezer and
Refrigerator side by side. Order ZUG75
Unified Grille Panel Kit for one
continuous 3/4" panel.
• Electrical and water locations must
be located as shown for either type of
installation. A separate 115V, 60Hz. 20
amp power supply is recommended
for each product.
NOTE: Additional cutout width may be required
when side panels are used. Add side panel
thickness to the finished cutout to calculate
rough-in width. See installation examples
below.
*72" min. for a flush installation
71-1/2" min. for a semi-flush installation
Side panels are required whenever the sides of the
product will be exposed.
1/2" to 3/4" side panels are normally set into place and
fastened to adjacent cabinetry or back wall before
rolling the refrigerator or freezer into the opening.
Therefore, the rough-in dimensions must allow for side
panel thickness. In a flush and semi-flush installation,
the finished dimension (width of the opening after side
panels are installed), must accommodate the full width
of the product. See page 11 for side panel sizes.
Side By Side
Installation
Of Freezer
And Refrigerator
Installation
Examples
2 1/2"
75" From Floor
to Bottom
of Electrical
Area
84 1/2" max
83 1/2" min
Finished
Opening
*Finished Width
Electrical
5"
5"
3 1/2"
24 3/4" Total
Depth
Water Supply
Wall View
6"
5"
6"
28 1/2"
26"
Freezer Refrigerator

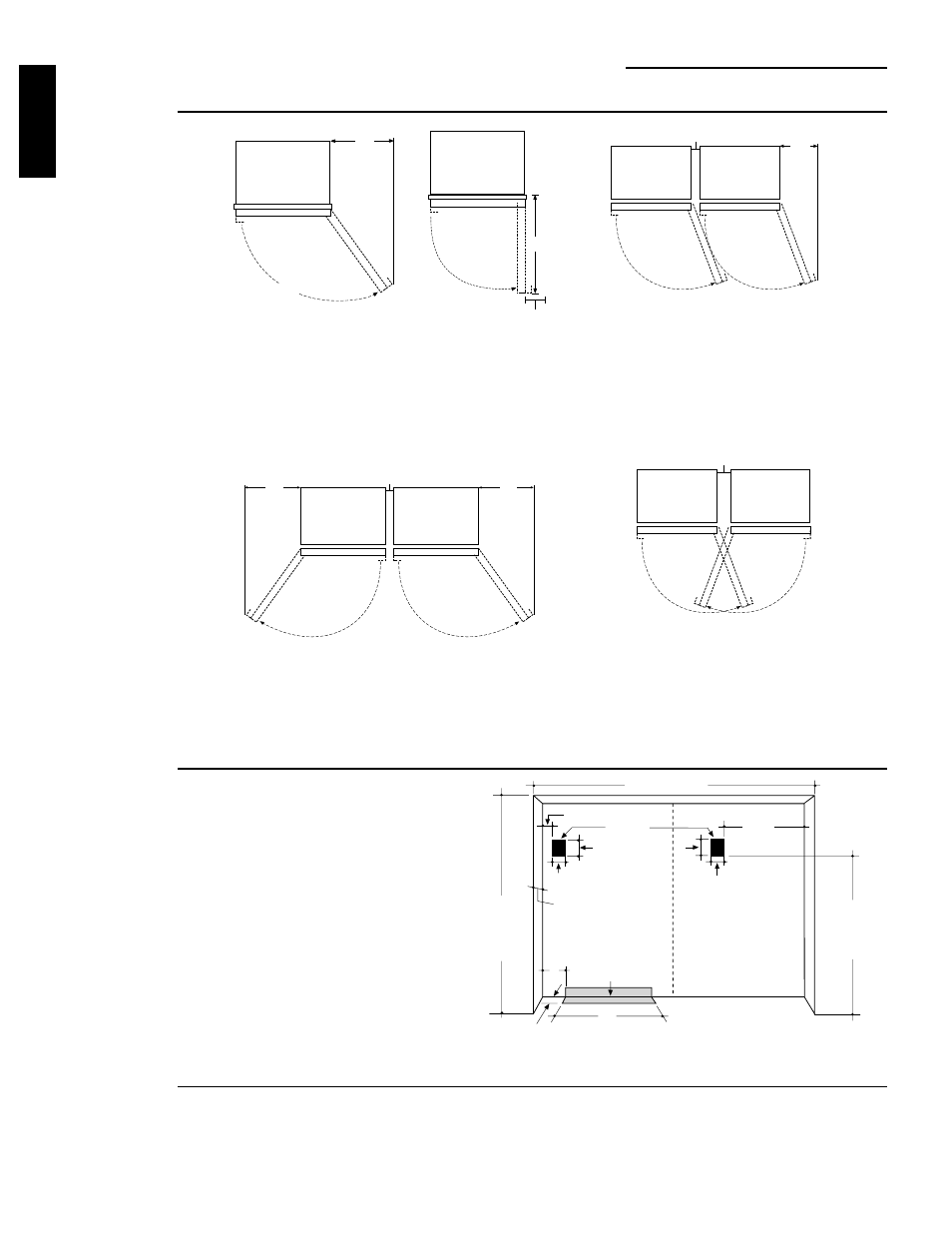

Clearances
Factory set for a 130° door swing. Order WX14X99
adjustable door stop to reduce swing to as little as 90°.
When Installed into a corner:
Allow 25" for a full 130° door swing. Allow 15" for pan
removal. Allow 4" min. clearance when door swing is
adjusted to a 90° opening for pan access, but pan
removal is restricted.
Clearances for two products installed side-by-side
with the same (left or right) door swing
Allow 2" minimum clearance between the products to
prevent door swing interference. Order the WX14X99
adjustable door stop to reduce the factory set 130° door
swing. Allow 15" minimum to a wall to achieve full drawer
extension and pan removal. Additional clearances are
required when using custom handles and panels.
NOTE: ZUG75 Grille Panel Kit will not fit this installation.
25"
Min. to
Wall
130 °
130 ° Door
Swing
36-3/4"
4" Min.
to Wall
90
° Door Swing
25"
Min. to
Wall
0"
25"
Min. to
Wall
130 ° Door
Swing
130 ° Door
Swing
2"
15"
5"
Clearances for Multiple Single Door Installations
In a side-by-side installation of a left and right door
swing product, no clearance between the units is
required. If you are installing 3/4" thick custom panels,
order ZUG75 Unified Grille Panel Kit for one continuous
grille panel.
Clearances for two products installed side-by-side
with right and left side hinges together
Allow 5" minimum between the two products to prevent
one door from striking the other. Use the WX14X99
adjustable door stop to reduce the factory set 130° door
swing and to allow pan removal. Additional clearances
are required when using custom handles and panels.
NOTE: ZUG75 Grille Panel Kit will not fit this installation.
DESIGN
INFORMA
TION
Design Information
36" Refrigerators, Freezers
